Tensile Strength of Cu Sheets Welded by Ultrasonic Metal Welding

Abstract:

This paper gives a description of an experimental study on the ultrasonic welding of metals. In ultrasonic metal welding, high frequency vibrations are combined with pressure to join two materials together quickly and securely, without generating large amount of heat. Horn, a key part of ultrasonic welding machine, should be designed very accurately to get the natural frequencies and vibration mode required. In this study, a horn is designed and developed for ultrasonic welding of Cu sheets. The tensile strength of welded parts is investigated for evaluation of weldability. Experimental parameters of welding test is set as follows; welding time 0.4s ~ 3.4sec. and vibration amplitude 40%, 60%, 80% and welding pressure 1.5bar, 2.0bar, 2.5bar. Samples are Cu sheets of 0.1mm thickness. Experimental results showed that the tensile strength increase as welding parameters increase, but when welding pressure is excessive, the tensile strength decrease due to fracture of the Cu sheets caused by over-welding. These results could be successfully applied for ultrasonic metal welding in various fields of manufacturing industry.

You might also be interested in these eBooks

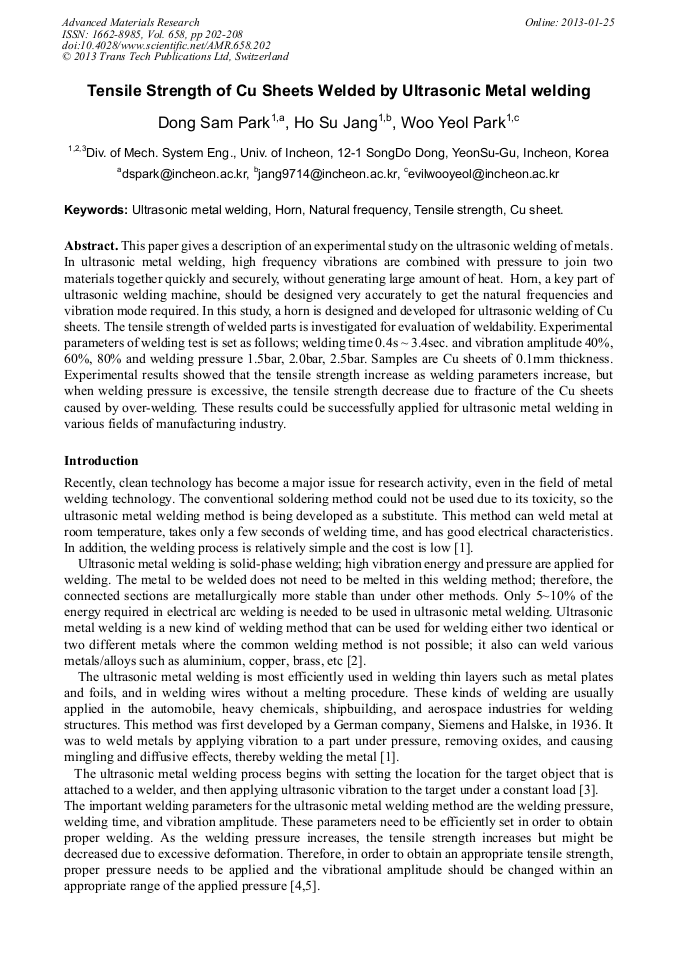

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 658)

Pages:

202-208

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.658.202

Citation:

Cite this paper

Online since:

January 2013

Authors:

Dong Sam Park, Ho Su Jang, Woo Yeol Park

Keywords:

Cu Sheet, Horn, Natural Frequency, Tensile Strength, Ultrasonic Metal Welding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H.S. Park, W. Y. Kim and C.Y. Kang, Journal of the Korean Welding and Joining Society, 6, 14 (1996).

Google Scholar

[2] S.I. Lee and S.H. Hong Proceedings of the KSMTE Autumn (2007).

Google Scholar

[3] Ultrasonic metal welding - Horizontal oscillation direction., STAPLA Ultrasonic Corp.

Google Scholar

[4] John Wnek. Ultrasonic metal welding for wire splicing and termination., Branson Ultrasonic Corp.

Google Scholar

[5] B.G. Lee, K.L. Kim and K.E. Kim, Design of Ultrasonic Vibration Tool Horn for Micromachining Using FEM, 6, 17. (2008).

Google Scholar

[6] K. H. W. Seah, Y. S. Wong, and L. C. Lee, Journal of Materials Processing Technology, 37, (1993).

Google Scholar

[7] Rao, S. S., MECHANICAL VIBRATIONS, 4th Edition, PEARSON, Republic of Korea, (2004).

Google Scholar

[8] Z. Liu, H.S. Kim, J.R. Pack and J.T. Kim, Surface profile measurement with FFT method and stabilized interferometer, (2004).

Google Scholar
