Experiment on the Fabrication of the Ni-Fe Micro Structure

Abstract:

The artificial neural network (ANN) and Orthogonal experimental design was applied in the research of main process parameters of electroforming Ni-Fe microstructure. In order to obtain the suitable parameters of the deposit, an ANN with 3 layers was built and trained based on orthogoality experiment using back propagation algorithm. The characteristics of the micro electroforming process were analysed systematically. And the optimal process parameters to obtain Ni-20% Fe deposition was as following: FeSO4•7H20 concentration: 5.5 g/L; PH value of the solution: 2.5; current density: 3.5 A/dm2; electrolyte temperature: 55 °C. The results indicate that the Ni-Fe deposit is bright and compact. Electrodeposited Ni-20% Fe has a strong paramagnetic effect with the smallest value of remanence 0.036 mA•m2 and the coercivity: 0.187 kA/m. The Ni-Fe micro electroplating process for the fabrication of microstructure was optimised.

You might also be interested in these eBooks

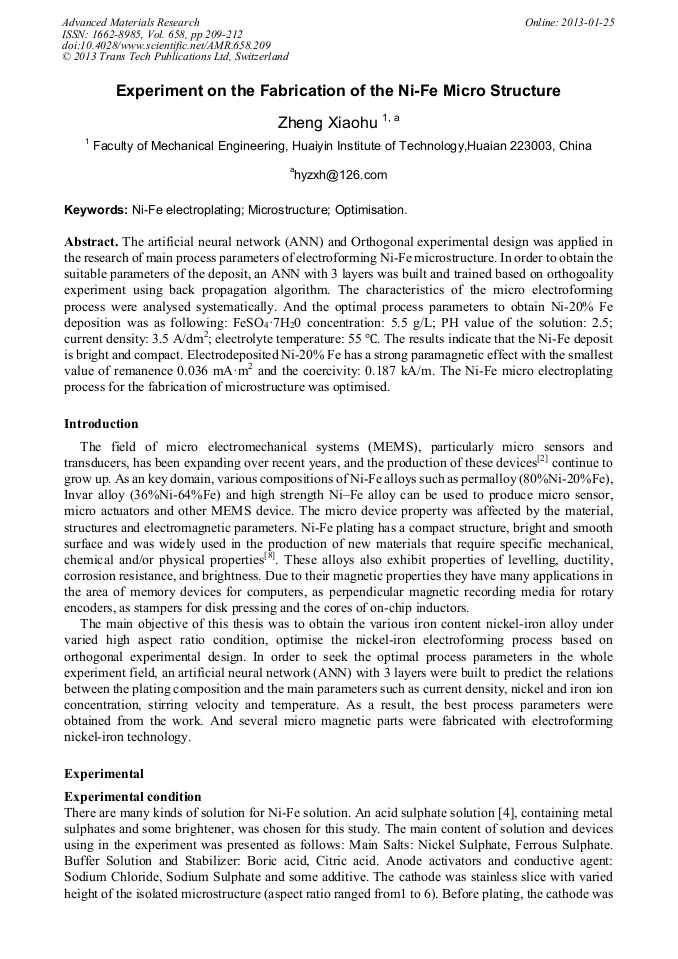

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 658)

Pages:

209-212

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.658.209

Citation:

Cite this paper

Online since:

January 2013

Authors:

Xiao Hu Zheng

Keywords:

Microstructure, Ni-Fe Electroplating, Optimization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Czerwinski F , Szpunar J A , Erb U. Structural and Magnetic characterization of nanocrystalline Ni-20%Fe permalloy films. Journal of Materials Science: Materials in Electronics, 11, pp.243-251, (2000).

DOI: 10.1023/a:1008905119141

Google Scholar

[2] Sebastian Bütefisch, Volker Seidemann, Stephanus Büttgenbach. Novel micro-pneumatic actuator for MEMS [J]. Sensors and Actuators A: Physical, 97-98, p.638, (2002).

DOI: 10.1016/s0924-4247(01)00843-3

Google Scholar

[3] Martincic E, Dufour-Gergan E, Bosseboeuf A, et al, Activities of the PFM on permalloy thin films deposition and magnety devices[J] Preparation, Properties and Application of Thin Ferromagnetic Films, 16, p.93, (2000).

Google Scholar

[4] Thomas C F. A possible role of electrode filming in abnormal deposition of alloys, Surface and Coatings Technology, 82, pp.65-69, (1996).

DOI: 10.1016/0257-8972(95)02622-3

Google Scholar
