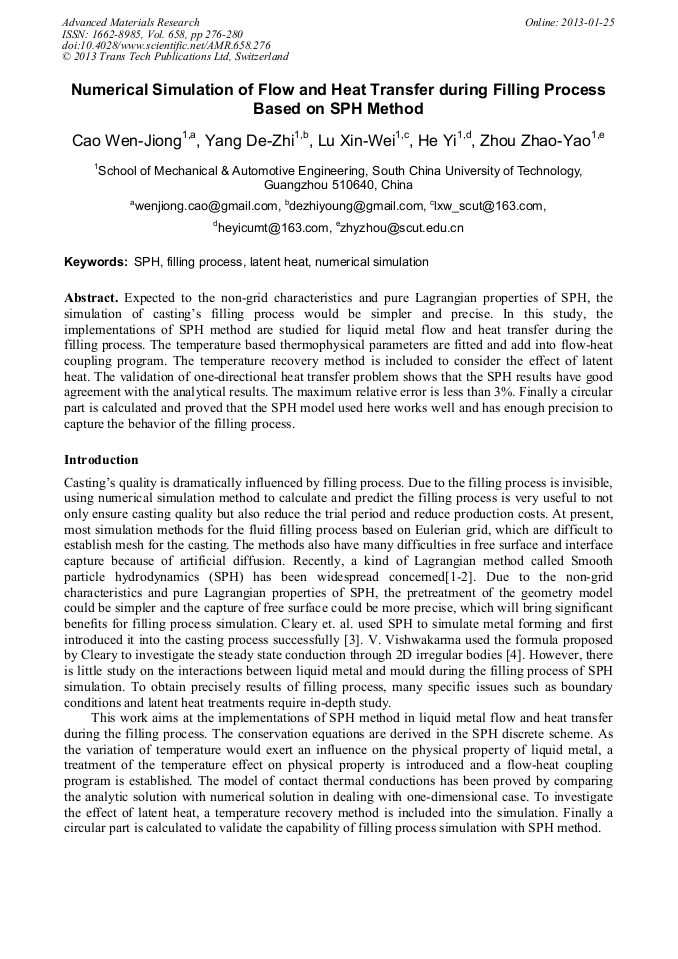

Numerical Simulation of Flow and Heat Transfer during Filling Process Based on SPH Method

Abstract:

Expected to the non-grid characteristics and pure Lagrangian properties of SPH, the simulation of casting’s filling process would be simpler and precise. In this study, the implementations of SPH method are studied for liquid metal flow and heat transfer during the filling process. The temperature based thermophysical parameters are fitted and add into flow-heat coupling program. The temperature recovery method is included to consider the effect of latent heat. The validation of one-directional heat transfer problem shows that the SPH results have good agreement with the analytical results. The maximum relative error is less than 3%. Finally a circular part is calculated and proved that the SPH model used here works well and has enough precision to capture the behavior of the filling process.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 658)

Pages:

276-280

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.658.276

Citation:

Cite this paper

Online since:

January 2013

Authors:

Wen Jiong Cao, De Zhi Yang, Xin Wei Lu, Yi He, Zhao Yao Zhou

Keywords:

Filling Process, Latent Heat, Numerical Simulation, Smoothed Particle Hydrodynamic (SPH)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Monaghan J J. Simulating free surface flows with SPH[J]. Journal of Computational Physics, 1994, 110: 399-406.

DOI: 10.1006/jcph.1994.1034

Google Scholar

[2] Liu G R, Liu M B. Smoothed particle hydrodynamics – a meshfree particle method[M]. Singapore: World scientific publishing, 2003: 33-149.

DOI: 10.1142/9789812564405

Google Scholar

[3] Cleary P W, Ha J, Prakash M, et al. Short shots and industrial case studies: Understanding fluid flow and solidification in high pressure die casting[J]. Applied mathematical modelling. 2010, 34: 2018-(2033).

DOI: 10.1016/j.apm.2009.10.015

Google Scholar

[4] V. Vishwakarma, A.K. Das and P. K. Das. Steady state conduction through 2D irregular bodies by smoothed particle hydrodynamics[J]. International Journal of Heat and Mass Transfer. 2011, 54: 314-325.

DOI: 10.1016/j.ijheatmasstransfer.2010.09.040

Google Scholar

[5] Schmid M, Klein F. Fluid flow in die-cavities: Experiments and numerical simulation [C]. The 18th International Die Casting Congress and Exposition Indianapolis. Indianapolis: NADCA, 1995: 93−97.

Google Scholar
