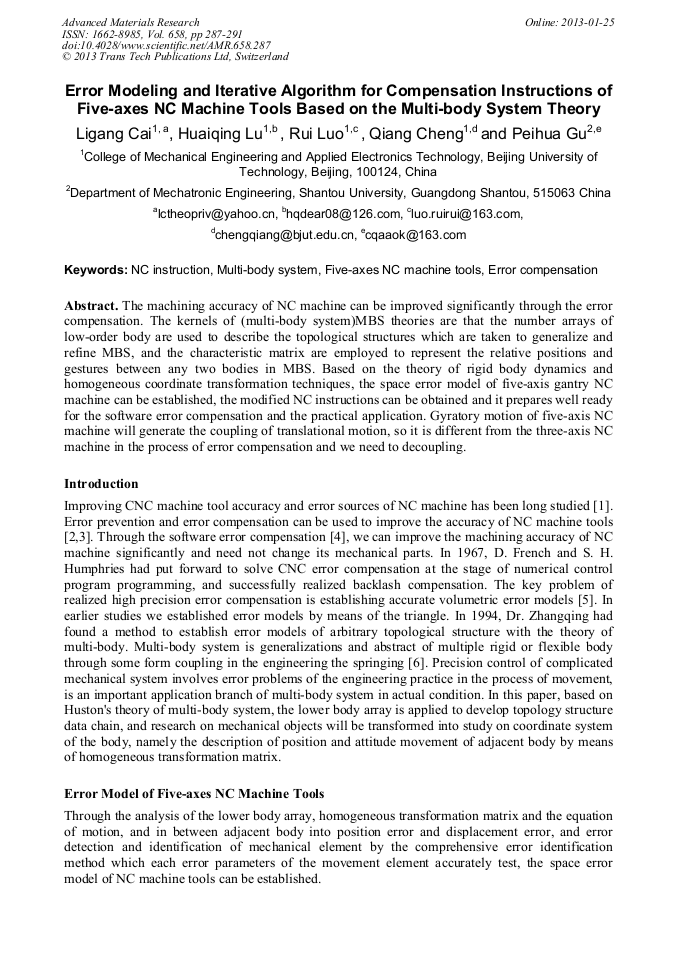

Error Modeling and Iterative Algorithm for Compensation Instructions of Five-Axes NC Machine Tools Based on the Multi-Body System Theory

Abstract:

The machining accuracy of NC machine can be improved significantly through the error compensation. The kernels of (multi-body system)MBS theories are that the number arrays of low-order body are used to describe the topological structures which are taken to generalize and refine MBS, and the characteristic matrix are employed to represent the relative positions and gestures between any two bodies in MBS. Based on the theory of rigid body dynamics and homogeneous coordinate transformation techniques, the space error model of five-axis gantry NC machine can be established, the modified NC instructions can be obtained and it prepares well ready for the software error compensation and the practical application. Gyratory motion of five-axis NC machine will generate the coupling of translational motion, so it is different from the three-axis NC machine in the process of error compensation and we need to decoupling.

• Periodical: Advanced Materials Research (Volume 658)
• Pages: 287-291
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.658.287
• Online since: January 2013
• Authors: Li Gang Cai, Huai Qing Lu, Rui Luo, Qiang Cheng, Pei Hua Gu
• Keywords: Error Compensation, Five-Axes NC Machine Tools, Multi-Body System, NC Instruction

References

[1] W, Knapp. Test of three-dimension uncertainty of machine tools and measuring machines and its relation to the machine error[J]. Ann. CIRP 1983, 32(1): 459-464.

DOI: 10.1016/s0007-8506(07)63440-4

[2] Rramesh, M.A. Mannan, A.N. Poo. Error compensation in machine tool-a review Part I: geometric, cutting-force induced and fixture-dependent errors[J]. International Journal of Machine Tools and Manufacture, 2000: 1235-1256.

DOI: 10.1016/s0890-6955(00)00009-2

[3] Error compensation in CNC turning solely from dimensional measurements of previously machined parts[J]. Annals of the CIRP, 1999(48), 1: 429-432.

DOI: 10.1016/s0007-8506(07)63219-3

[4] Jenq-Shuong Chen. Computer-aided accuracy enhancement for multi-axis CNC machine tool [J]. International Journal of Machine Tools and Manufacture, 1995, 4: 593-605.

DOI: 10.1016/0890-6955(94)p4352-u

[5] Su Shiping, Li Shengyi, Wang Guilin. A Universal Synthetic Volumetric Error Model of Multi axis NC Machine Tool Based on Kinematics(in Chinese)[J]. Journal of National University of Defense Technology. 2001, 4.

[6] Zhang Qing, Liu Youwu, Zhao Xiaoshong, Zhang Zhifei. Improving Machining Accuracy of the Large Blade by NC Machine Tools(in Chinese)[J]. China Mechanical Engineering, 2000(10), 6: 631-634.

[7] Yang J G. Present Situation and Prospect of Error Compensation Technology for NC Machine Tool(in Chinese)[J]. Aeronautical Manufacturing Technology. 2012(5): 40-45.
