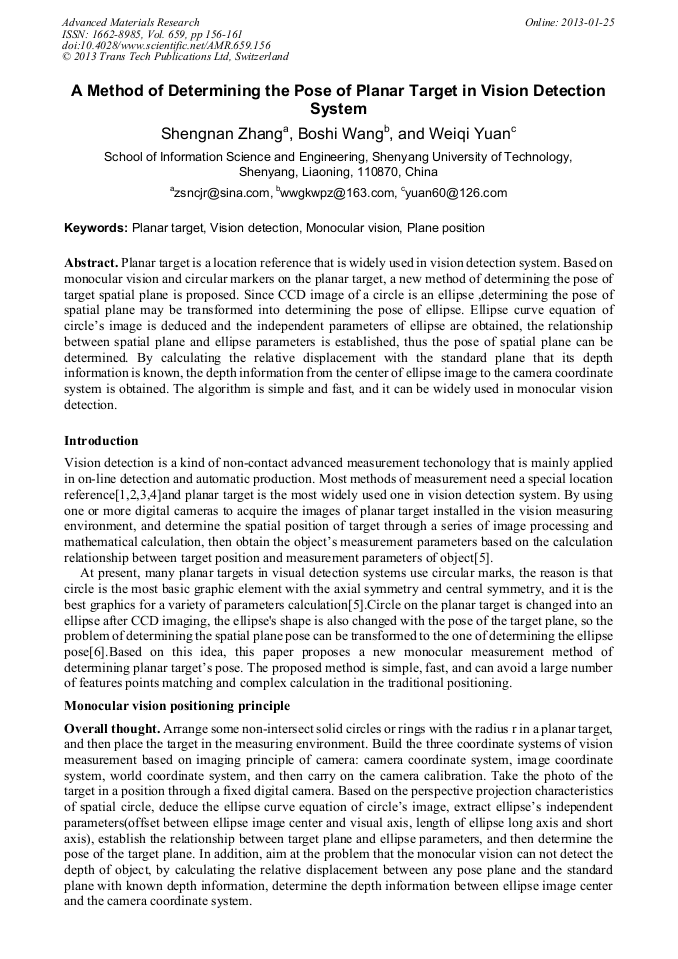

A Method of Determining the Pose of Planar Target in Vision Detection System

Abstract:

Planar target is a location reference that is widely used in vision detection system. Based on monocular vision and circular markers on the planar target, a new method of determining the pose of target spatial plane is proposed. Since CCD image of a circle is an ellipse ,determining the pose of spatial plane may be transformed into determining the pose of ellipse. Ellipse curve equation of circle’s image is deduced and the independent parameters of ellipse are obtained, the relationship between spatial plane and ellipse parameters is established, thus the pose of spatial plane can be determined. By calculating the relative displacement with the standard plane that its depth information is known, the depth information from the center of ellipse image to the camera coordinate system is obtained. The algorithm is simple and fast, and it can be widely used in monocular vision detection.

• Periodical: Advanced Materials Research (Volume 659)
• Pages: 156-161
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.659.156
• Online since: January 2013
• Authors: Sheng Nan Zhang, Bo Shi Wang, Wei Qi Yuan
• Keywords: Monocular Vision, Planar Target, Plane Position, Vision Detection

References

[1] L. Guo, Y.C. Xu, K.Q. Li, et al. Study on real-time distance detection based on monocular vision technique, Journal of Image and Graphics, 11(1), (2006) 74-81(in Chinese).

[2] T.Y. Zhao,L. Guo, L.C. Zhang. A new algorithm of spatial positioning based on mono-vision, Journal of Northwestern Polytechnical University, 27(1), (2009) 47-51(in Chinese).

[3] G.J. Zhang, F.Q. Zhou. Position and orientation estimation method for landing of unmanned aerial vehicle with two circle based computer vision, Acta Aeronautica et Astronautica Sinica, 26(3), (2005) 344-348(in Chinese).

[4] X.H. Gao, K.J. Xu, H. Zhang, et al. Position-pose measurement algorithm based on single camera and laser range-finder, Journal of Scientfic Instrument, 28(7), (2007) 1479-1485(in Chinese).

[5] T.N. Zhang, Y.Q. Tu, D.C. Wang. Study of wheel alignment based on computer vision, Electronic Measurement Technology, 31(4), (2008) 52-56(in Chinese).

[6] X.J. Yang, X.L. Zhu, Y.Q. Xia, et al. A Method of Determining the Pose of Spatial Plane Based on Ellipse Features, Development＆Innovation of Machinery＆Electrical Products, 22(3), (2009) 150-152(in Chinese).

[7] Reza Safaee-Rad, Ivo Tchoukanov, Kenneth Carless Smith, et al. Three-dimensional location estimation of circular features for machine vision, Journal of IEEE Transactions on Robotics and Automation, 8(5), (1992) 624-639.

DOI: 10.1109/70.163786

[8] Q.Y. Han, S.T. Wan. Machine vision characteristics of the perspective projection of space, Journal of North China Electric Power University, 25(1), (1998) 80-84(in Chinese).
