Preparation of Fine Mullite Powder in a SHS Chemical Furnace System

Yu Yang; Yu Cheng Wang; Zheng Yi Fu; Wei Min Wang; Hao Wang; Jin Yong Zhang

doi:10.4028/www.scientific.net/AMR.66.115

Paper Titles

Superfast Sintering of Nanocrystalline Y₂O₃ Ceramics
p.100

Low-Temperature Sintering and Microwave Dielectric Properties of the Zn₂SiO₄ Ceramics
p.104

Thermal Shock-Resistance Performance of Al₂TiO₅/Al₂O₃ Composites
p.108

Effect of LaCl₃ on the Properties of LAS Ceramics
p.112

Preparation of Fine Mullite Powder in a SHS Chemical Furnace System
p.115

Investigation of Bipolar Resistance Switching Properties in SrTiO₃Thin Films with Symmetric Electrodes Structure
p.119

The Effect of Oxygen Annealing on the Resistance Switching Properties of the La_0.7Ca_0.3MnO₃ Films
p.127

Fabrication and Resistance-Switching Behaviors of NiO Thin Films by Thermal Oxidation of Evaporated Ni Films
p.131

Synthesis of Metastable Tungsten Carbide Nanoparticles by Mechanochemical Alloying Process
p.135

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 66Preparation of Fine Mullite Powder in a SHS...

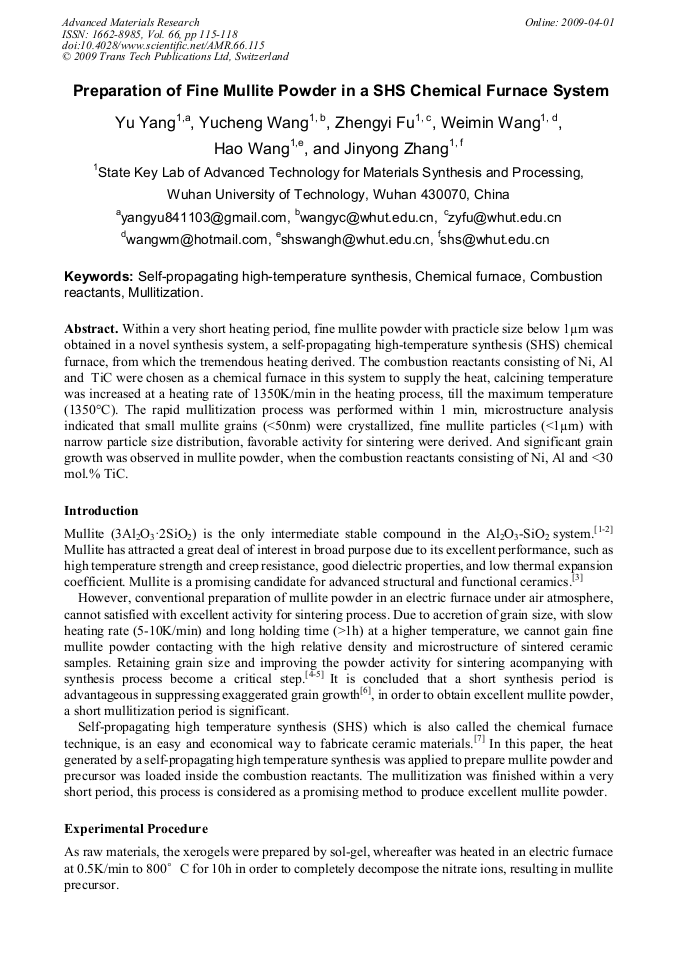

Preparation of Fine Mullite Powder in a SHS Chemical Furnace System

Abstract:

Within a very short heating period, fine mullite powder with practicle size below 1µm was obtained in a novel synthesis system, a self-propagating high-temperature synthesis (SHS) chemical furnace, from which the tremendous heating derived. The combustion reactants consisting of Ni, Al and TiC were chosen as a chemical furnace in this system to supply the heat, calcining temperature was increased at a heating rate of 1350K/min in the heating process, till the maximum temperature (1350°C). The rapid mullitization process was performed within 1 min, microstructure analysis indicated that small mullite grains (<50nm) were crystallized, fine mullite particles (<1µm) with narrow particle size distribution, favorable activity for sintering were derived. And significant grain growth was observed in mullite powder, when the combustion reactants consisting of Ni, Al and <30 mol.% TiC.
