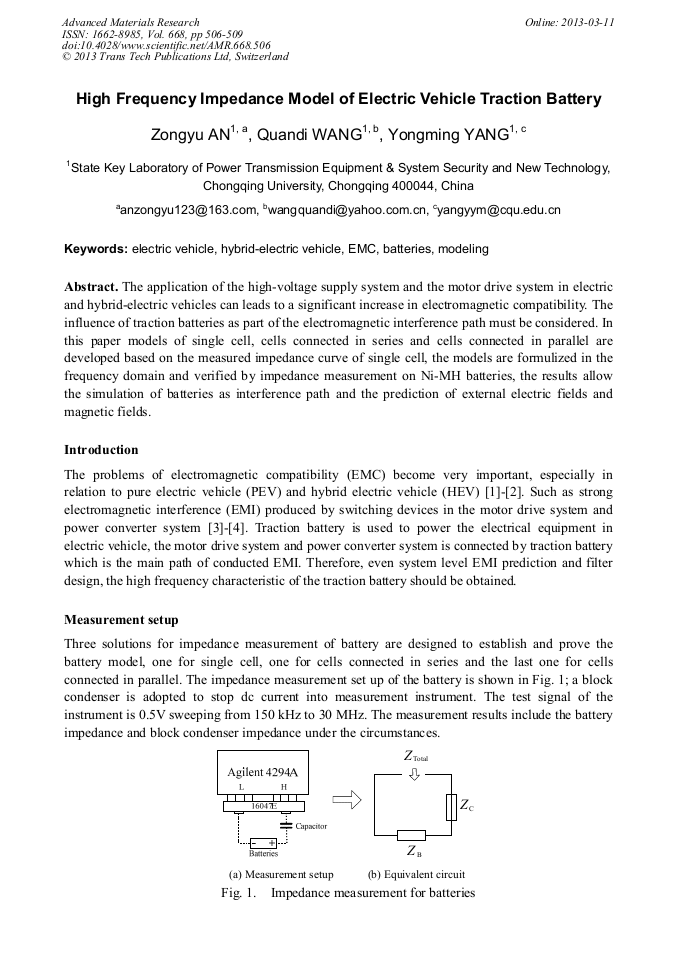

High Frequency Impedance Model of Electric Vehicle Traction Battery

Abstract:

The application of the high-voltage supply system and the motor drive system in electric and hybrid-electric vehicles can leads to a significant increase in electromagnetic compatibility. The influence of traction batteries as part of the electromagnetic interference path must be considered. In this paper models of single cell, cells connected in series and cells connected in parallel are developed based on the measured impedance curve of single cell, the models are formulized in the frequency domain and verified by impedance measurement on Ni-MH batteries, the results allow the simulation of batteries as interference path and the prediction of external electric fields and magnetic fields.

• Periodical: Advanced Materials Research (Volume 668)
• Pages: 506-509
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.668.506
• Online since: March 2013
• Authors: Zong Yu An, Quan Di Wang, Yong Ming Yang
• Keywords: Batteries, Electric Vehicle (EV), EMC, Hybrid Electric Vehicle (HEV), Modeling

References

[1] Nanda, G.; Kar, N. C, A Survey and Comparison of Characteristics of Motor Drives Used in Electric Vehicles, Canadian Conference on Electrical and Computer Engineering, CCECE 2006, p.811–814, May (2006).

DOI: 10.1109/ccece.2006.277736

[2] E. Darie. C. Cepisca and E. Darie, Modeling EMI problems associated with DC-DC converters, Conference MIPS 2008, November (2008).

[3] Mutoh, N., Nakanishi, M., Kanesaki, M., Nakashima, J., EMI noise control methods suitable for electrical vehicles drive systems, IEEE Trans. Electromagn. Compat. Vol. 47, pp: 930-937. November, (2005).

DOI: 10.1109/temc.2005.857893

[4] Lee,Y. H., Nasiri, A., Analysis and modelling of conductive EMI noise of power electronics converters in electric and hybrid electric vehicles, 23th Annual IEEE Applied Power Elecrtonics Conference and Exposition, APEC 2008, pp: 1952 – 1957, 24-28 Feb. (2008).

DOI: 10.1109/apec.2008.4522995
