Sintering of Ultrahigh Density and Highly Conductive ZnO-Ga₂O₃ Ceramic Targets

Abstract:

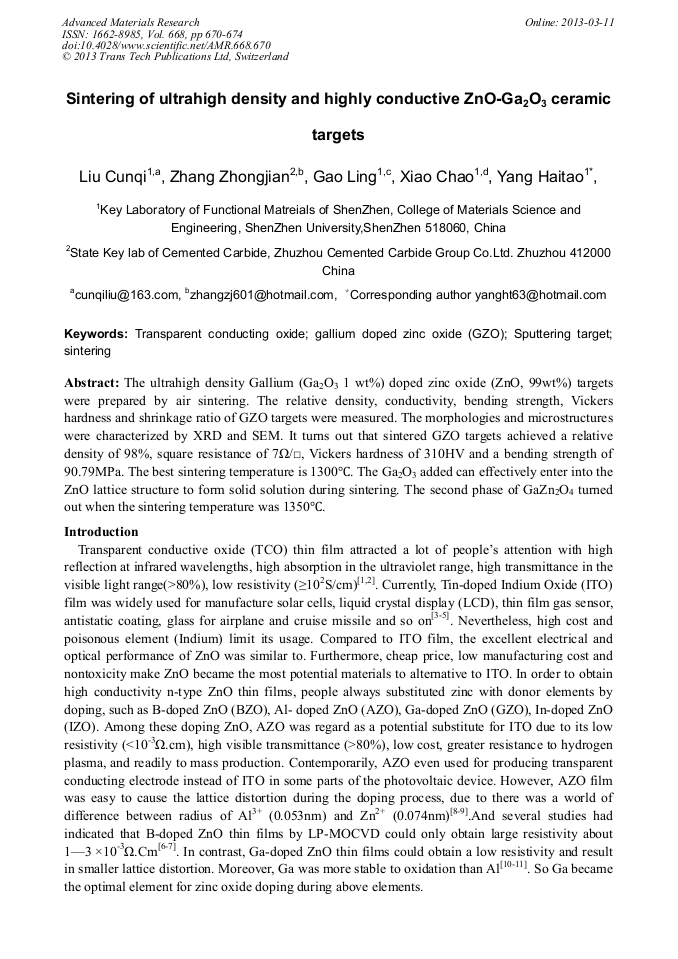

The ultrahigh density Gallium (Ga2O3 1 wt%) doped zinc oxide (ZnO, 99wt%) targets were prepared by air sintering. The relative density, conductivity, bending strength, Vickers hardness and shrinkage ratio of GZO targets were measured. The morphologies and microstructures were characterized by XRD and SEM. It turns out that sintered GZO targets achieved a relative density of 98%, square resistance of 7Ω/□, Vickers hardness of 310HV and a bending strength of 90.79MPa. The best sintering temperature is 1300°C. The Ga2O3 added can effectively enter into the ZnO lattice structure to form solid solution during sintering. The second phase of GaZn2O4 turned out when the sintering temperature was 1350°C.

• Periodical: Advanced Materials Research (Volume 668)
• Pages: 670-674
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.668.670
• Online since: March 2013
• Authors: Cun Qi Liu, Zhong Jian Zhang, Ling Gao, Chao Xiao, Hai Tao Yang
• Keywords: Gallium Doped Zinc Oxide (GZO), Sintering, Sputtering Target, Transparent Conducting Oxide

References

[1] Minami T. Substitution of transparent conducting oxide thin films for indium tin oxide transparent electrode applications. Thin Solid Films 2008; 516: 1314-21.

DOI: 10.1016/j.tsf.2007.03.082

[2] Fang G, Li D Yao BL. Fabrication and vacuum annealing of transparent conductive AZO thin films prepared by DC magnetron sputtering. Vacuum 2003; 68: 363-72.

DOI: 10.1016/s0042-207x(02)00544-4

[3] J. -K. Sheu, Y.S. Lu, M. -L. Lee, W.C. Lai, C.H. Kuo, C. -J. Tun, Appl. Phys. Lett. 90(2007) 263511.

[4] V. Bhosle, J.T. Prater, F. Yang, D. Burk, S.R. Forrest, J. Narayan, J. Appl. Phys. 102(2007) 023501.

[5] L. Wang, M. -H. Yoon, A. Facchetti, T.J. Marks, Adv. Mater. 19(2007)3252.

[6] S. Fay,U. Kroll,C. Bucher, et al. Low pressure chemical vapour deposition of ZnO layers for thin-film solar cells: Temperature-induced morphological changes, Solar Energy Materials Solar Cells 86 (2005) 385-397.

DOI: 10.1016/j.solmat.2004.08.002

[7] X.L. Chen, X.H. Geng, J.M. Xue, et al. Temperature-dependent growth of zinc oxide thin films grown by metal organic chemical vapor deposition, Journal of Crystal Growth 296 (2006) 43-50; 2.

DOI: 10.1016/j.jcrysgro.2006.08.028

[8] W.B. Pearson, Crystal Chemistry and Physics of Metals and Alloys, Wiley, New Youk, 1972, p.76.

[9] H. Kato, M. Sano, K. Miyamoto, T. Yao, J. Crystal Growth 538(2002) 237.

[10] X. Bie, J.G. Lu, L. Gong, L. Lin, B.H. Zhao, Z.Z. Ye, Applied Surfacce Science 256 (2009) 289.

[11] W.T. Yen, Y.C. Lin P.C. Yao J.H. Ke, Y.L. Chen, Applied Surface Science 256(2010) 3432.

[12] Zhang XB, Pei ZL, Gong J, Sun C. Investigation on the electrical properties and inhomogeneous distribution of ZnO: Al thin films prepared by DC magnetron sputtering at low deposition temperature. J Appl phys 2007; 101: 014910.

DOI: 10.1063/1.2407265

[13] Yang W, Liu Z, Peng DL, Zhang F, Huang H, Xie Y, et al. Room-temperature deposition of transparent conducting Al-doped ZnO. Appl Surf Sci 2009; 255: 5669-73.

DOI: 10.1016/j.apsusc.2008.12.021

[14] Cebulla R, Wendt R, Ellmer K. Al-doped zinc oxide films deposited by stimultaneous RF and DC excitation of a magnetron plasma: relationships between plasma parameters and structural and electrical film properties. J Appl Phys 1998; 83: 95-1087.

DOI: 10.1063/1.366798

[15] W.D. Jones: Principles of Powder Metallurgy, Edward Arnold, (1960).

[16] Guan Zhenduo, Zhang Zhongtai, Jiao Jinsheng, physical properties of inorganic material, Beijing: pressed by qinghua university, 2004, page82.
