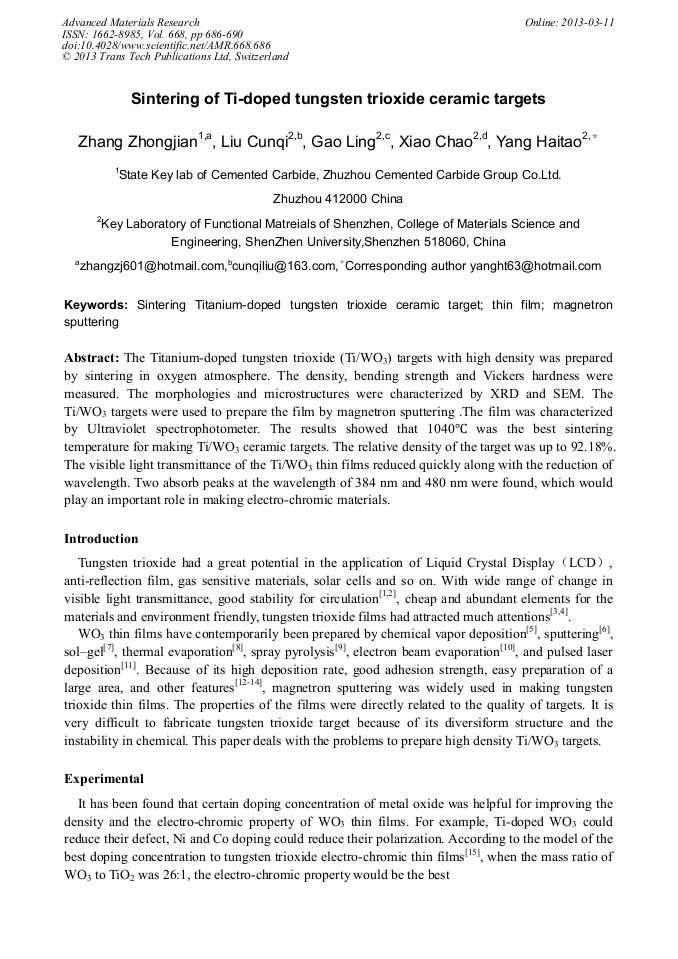

Sintering of Ti-Doped Tungsten Trioxide Ceramic Targets

Abstract:

The Titanium-doped tungsten trioxide (Ti/WO3) targets with high density was prepared by sintering in oxygen atmosphere. The density, bending strength and Vickers hardness were measured. The morphologies and microstructures were characterized by XRD and SEM. The Ti/WO3 targets were used to prepare the film by magnetron sputtering .The film was characterized by Ultraviolet spectrophotometer. The results showed that 1040°C was the best sintering temperature for making Ti/WO3 ceramic targets. The relative density of the target was up to 92.18%. The visible light transmittance of the Ti/WO3 thin films reduced quickly along with the reduction of wavelength. Two absorb peaks at the wavelength of 384 nm and 480 nm were found, which would play an important role in making electro-chromic materials.

• Periodical: Advanced Materials Research (Volume 668)
• Pages: 686-690
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.668.686
• Online since: March 2013
• Authors: Zhong Jian Zhang, Cun Qi Liu, Ling Gao, Chao Xiao, Hai Tao Yang
• Keywords: Magnetron Sputtering, Sintering Titanium-Doped Tungsten Trioxide Ceramic Target, Thin Film

References

[1] Granqvist C G. Electrochromic Tungsten oxide Films: Review of Progress 1993-1998. Sol. Cells, 2000. 60: 201-262. BANGE K. Colouration of tungsten oxide films: A model for optically active coating.

DOI: 10.1016/s0927-0248(99)00088-4

[2] Sun Ning, Zhao Lingzhi, Zhang Yujie. Advances in electrochromic films. China Ceramics, 1998, 34(5): 34- 37 (in Chinese).

[3] Ye Hui, Li Xiaoyan. Preparation of amorphous tungsten trioxide thin film and electrochromic device by the method of sol-gel process. Acta Optica Sinica, 1999, 19 (4): 532-539 (in Chinese).

[4] Zhang Xuping, Chen Guoping. The display performance of MoO3 doping WO3 electrochromic thin films. Optoelectronic Technology, 1997, 17(1): 20-23 (in Chinese).

[5] Kuypers A D, Spee C I, Linden J L, Kirchner G, Forsyth J F and Mackor A 1995 Surf. Coat. Technol. 74/75 1033–7.

DOI: 10.1016/0257-8972(95)08294-8

[6] Monterio A, Costa M F, Almedia B, Teixeria V, Gago J and Roman E 2002 Vacuum 64 287–91.

[7] Tong M, Dai G and Gao D 2001 Mater. Chem. Phys. 69 176–9.

[8] Lozzi L, Ottaviano L, Passacantando H, Santucci S and Cantalini C 2001 Thin Solid Films 391 224–8.

DOI: 10.1016/s0040-6090(01)00986-5

[9] Regragui M, Jousseaume V, Addou M, Outzourhit A, Bernede J C and El Idrissi B 2001 Thin Solid Films 397 238–43.

DOI: 10.1016/s0040-6090(01)01405-5

[10] Georg A, Graf W and Wittwer V 1998 Sol. Energy Mater. Sol. Cells 51 353–70.

[11] Rougier A, Portemer F, Quede A and Al Marssi M 1999 Appl. Surf. Sci. 153 1–9.

[12] Go mez-Pozos H, MaldonadoA, delaOlveraML. MaterLett2007; 61: 1460–4.

[13] K. Aguir, C. Lemire, D.B. B . Lollman. Electrical Properties of Reactively Sputtered WO3 Thin Films as Ozone Gas Sensor. Sensors and Actuators, 2002, B84: 1 - 5.

DOI: 10.1016/s0925-4005(02)00003-5

[14] A. A. Akl, H. Kamal, K. Abdel - Hady. Characterization of Tungsten Pxide Films of Different Crystallinity Prepared by RF Sputtering. Physica, 2003, B325: 65 - 75.

DOI: 10.1016/s0921-4526(02)01431-x

[15] Fan Zhixin, Pan Liangyu, He Liangming. The model of the best doping content to tungsten trioxide electrochromic film. Acta Optica Sinica, Vol. 22，No. 11 November, (2002).

[16] Dai Fuping, Lv Shuyuan, Feng Boxue et al. Study of the electro-chromic property of amorphous WO3 thin films. Acta Phys. Sin. 2003, 52(4): 2262.
