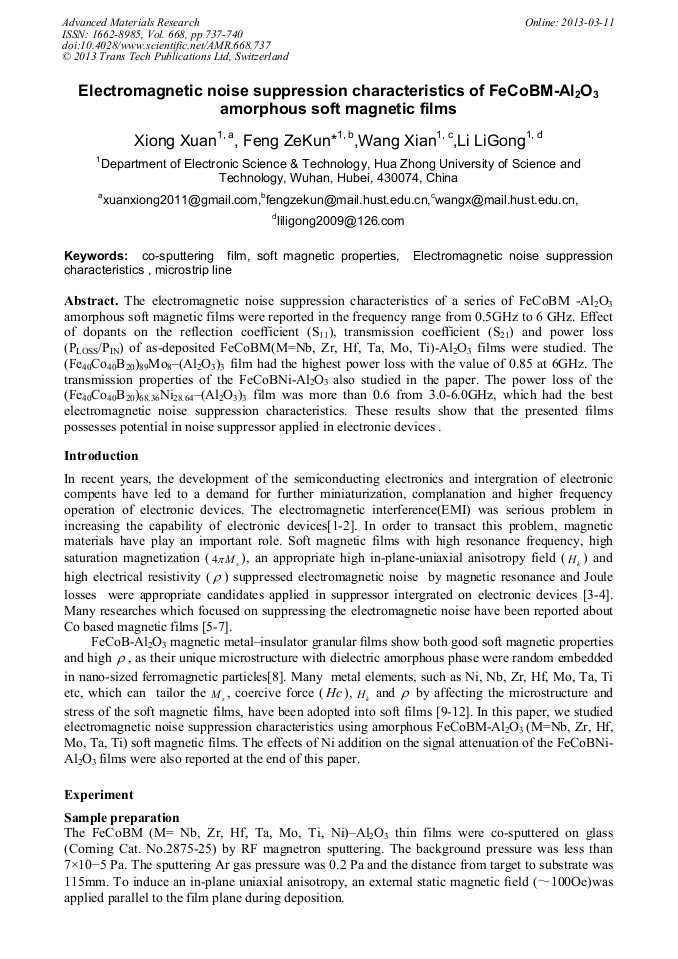

Electromagnetic Noise Suppression Characteristics of FeCoBM-Al₂O₃ Amorphous Soft Magnetic Films

Abstract:

The electromagnetic noise suppression characteristics of a series of FeCoBM -Al2O3 amorphous soft magnetic films were reported in the frequency range from 0.5GHz to 6 GHz. Effect of dopants on the reflection coefficient (S11), transmission coefficient (S21) and power loss (PLOSS/PIN) of as-deposited FeCoBM(M=Nb, Zr, Hf, Ta, Mo, Ti)-Al2O3 films were studied. The (Fe40Co40B20)89Mo8–(Al2O3)3 film had the highest power loss with the value of 0.85 at 6GHz. The transmission properties of the FeCoBNi-Al2O3 also studied in the paper. The power loss of the (Fe40Co40B20)68.36Ni28.64–(Al2O3)3 film was more than 0.6 from 3.0-6.0GHz, which had the best electromagnetic noise suppression characteristics. These results show that the presented films possesses potential in noise suppressor applied in electronic devices .

• Periodical: Advanced Materials Research (Volume 668)
• Pages: 737-740
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.668.737
• Online since: March 2013
• Authors: Xuan Xiong, Ze Kun Feng, Xian Wang, Li Gong Li
• Keywords: Co-Sputtering Film, Electromagnetic Noise Suppression Characteristics, Microstrip Line, Soft Magnetic Properties

References

[1] S. Ohnuma, N. Kobayashi, T. Masumoto, S. Mitani and H. Fujimori. Magnetostriction and soft magnetic properties of (CoFe)-Al-O granular films with high electrical resistivity. Journal of applied physics, (1999), 85: 4574.

DOI: 10.1063/1.370412

[2] J. W. Lee, Y. K. Hong, K. Kim, J. Joo, Y. W. Yoon, et al. RF and Microwave Noise Suppression In a Transmission Line Using Fe-Si-Al/Ni-Zn Magnetic Composite Films. Journal of the Korean Physical Society, 2006, 48: 1534-1538.

[3] J. S. Liao, Z. K. Feng, J. Qiu, Y.Q. Tong. High‐frequency permeability of sputtered Fe-Co-B-based soft magnetic thin films. physica status solidi (a), (2008), 205(12): 2943-2947.

DOI: 10.1002/pssa.200824316

[4] S. X. Wang, N. X. Sun, M. Yamaguchi, S. Yabukami. Sandwich films: Properties of a new soft magnetic material. Nature, (2000), 407(6801): 150-151.

DOI: 10.1038/35025142

[5] Ki Hyeon Kim, Shigehiro Ohnuma, and Masahiro Yamaguchi. RF Integrated Noise Suppressor Using Soft Magnetic Films. IEEE Trans Magn, (2004), 40(4): 2838.

DOI: 10.1109/tmag.2004.830474

[6] Kaori Maruta, Masaya Sugawara, Yutaka Shimada, and Masahiro Yamaguchi. Analysis of Optimum Sheet Resistance for Integrated Electromagnetic Noise Suppressors. IEEE Trans On Magn, (2006), 42(10): 3377.

DOI: 10.1109/tmag.2006.879443

[7] Shigehiro Ohnuma, Tadayoshi Iwasa, Hiroyasu Fujimori, and Tsuyoshi Masumoto. Noise Suppression Effect of Soft Magnetic Co–Pd–B–O Films With Large and Bs. IEEE Trans On Magn, (2006), 42(10): 2769.

DOI: 10.1109/tmag.2006.880381

[8] S. Wang, X. D. Zhang, J. G. Li, J. Ma, J.J. Huang. Enhanced magnetic softness and high-frequency characteristics of Fe51. 1Co48. 9B-Al2O3 nanogranular films. Scripta Materialia, (2011), 65(1): 45–48.

DOI: 10.1016/j.scriptamat.2011.03.010

[9] B. M. Zhang , G. W. Wang , F. Zhang , Y.H. Xiao, S.H. Ge. High-frequency FeCoNiNbB–SiO2 nano-granular films with high resistivity and adjustable resonance frequency from 1. 3 to 7. 8 GHz. Applied Physics A: Materials Science & Processing, (2009).

DOI: 10.1007/s00339-009-5278-z

[10] X. F. Bi, J. P. Cui. Temperature dependence of structural and transport propertyof Cu-free FeCoZrB magnetic films. Thin Solid Films, (2008), 516: 2321– 2324.

DOI: 10.1016/j.tsf.2007.08.126

[11] C. C. Hsieh, T. H. Lin1, H. W. Chang, C. W. Chang, W. C. Chang, and C. C. Yang. Effect of Dopants on the Soft Magnetic Properties and High Frequency Characteristics of FeCoBM (M = Ti, Nb, Hf, and Ta) Thin Films. Journal of Nanoscience and Nanotechnology, (2011).

DOI: 10.1166/jnn.2011.2726

[12] G. W. Qin, B. Yang, N. Xiao, Y.P. Ren, M. Jiang, X. Zhao, K. Oikawa. Origin on amorphization of Co–Mo magnetic thin films: Experiments and thermodynamic calculation. Thin Solid Films, (2009), 517: 2984-2987.

DOI: 10.1016/j.tsf.2009.01.003

[13] Xiong Xuan, Feng ZeKun, Wang Xian, Chen ZhongYan. Effect of Dopants on the Microwave Magnetic Characteristics of FeCoBM-Al2O3 Soft MagneticThin Films. 2012 Spring Congress on Engineering and Technology. (accepted).

[14] Xuan Xiong, Zekun Feng, Wenyi Ren, Huan Lin, Shuoqing Yan. Soft magnetic and microwave characteristics of amorphous FeCoBNi–Al2O3 films deposited by RF magnetron co-sputtering. Journal of Alloys and Compounds, (2012), 514: 170-173.

DOI: 10.1016/j.jallcom.2011.11.047
