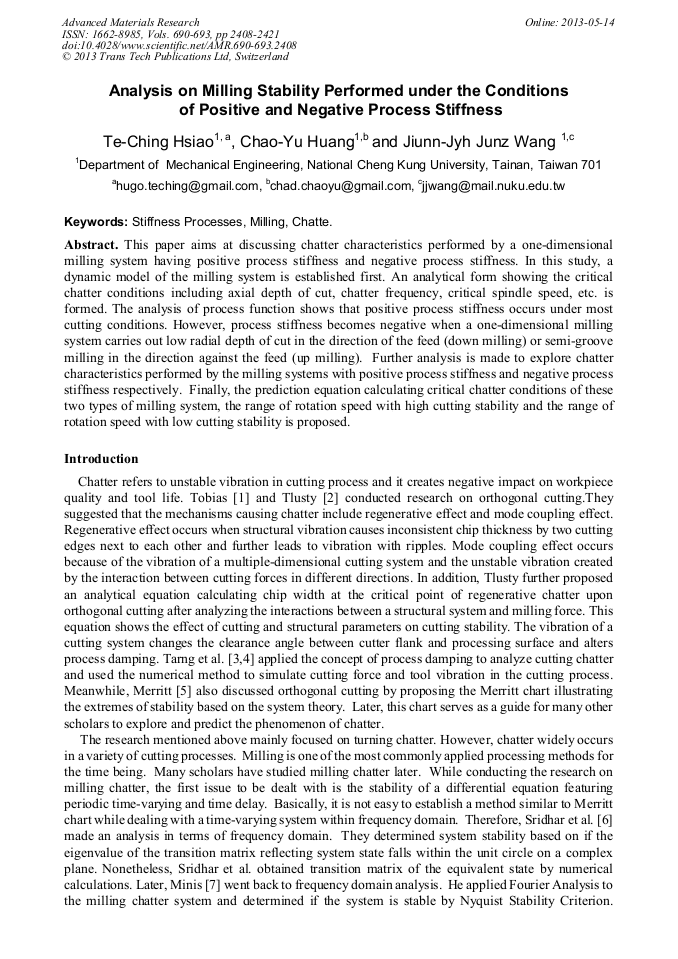

Analysis on Milling Stability Performed under the Conditions of Positive and Negative Process Stiffness

Abstract:

This paper aims at discussing chatter characteristics performed by a one-dimensional milling system having positive process stiffness and negative process stiffness. In this study, a dynamic model of the milling system is established first. An analytical form showing the critical chatter conditions including axial depth of cut, chatter frequency, critical spindle speed, etc. is formed. The analysis of process function shows that positive process stiffness occurs under most cutting conditions. However, process stiffness becomes negative when a one-dimensional milling system carries out low radial depth of cut in the direction of the feed (down milling) or semi-groove milling in the direction against the feed (up milling). Further analysis is made to explore chatter characteristics performed by the milling systems with positive process stiffness and negative process stiffness respectively. Finally, the prediction equation calculating critical chatter conditions of these two types of milling system, the range of rotation speed with high cutting stability and the range of rotation speed with low cutting stability is proposed.

• Periodical: Advanced Materials Research (Volumes 690-693)
• Pages: 2408-2421
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.690-693.2408
• Online since: May 2013
• Authors: Te Ching Hsiao, Chao Yu Huang, Jiunn Jyh Junz Wang
• Keywords: Chatte, Milling, Stiffness Processes

References

[1] Tobias, S. A., Machine Tool Vibration, Black & Son, London, 1965.

[2] Koenigsberger, F. and Tlusty, J., Machine Tool Structure-Vol.Ⅰ: Stability Against Chatter, Pergamon Press, 1967.

[3] Tarng, Y. S., Young, H. T. and Lee, B. Y., "An Analytcal Model of Chatter Vibrationin Metal Cutting," International Journal of Machine Tools and Manufacture, Vol. 34, No. 2, pp.183-197, 1994.

DOI: 10.1016/0890-6955(94)90100-7

[4] Lee, B. Y., Tarng, Y. S. and Ma, S. C, "Modeling of the Process Damping Force in Chatter Vibration, " International Journal of Machine Tools and Manufacture, Vol. 35, No. 7, pp.951-962., 1995.

DOI: 10.1016/0890-6955(94)00046-m

[5] Merritt, H. E., "Theory of Self-Excited Machine Tool Chatter," Journal of Engineering for Industry, Vol. 87, pp.447-454, 1965.

DOI: 10.1115/1.3670861

[6] Sridhar, R., Hohn, R. E. and Long, G.W., "A Stability Algorithm for the General Milling Process Contribution to Machine Tool Chatter Research-7," Journal of Engineering for Industry, Vol. 90, pp.330-334, 1968.

DOI: 10.1115/1.3604637

[7] Minis, I. and Yanushersky, R., "A New Theoretical Approach for the Prediction of Machine Tool Chatter in Milling," Journal of Engineering for lndustry, Vol. ll5, pp. l-8, 1993.

[8] TIusty, J. and Ismail, F., "Basic Nonlinearity in Machining Chatter," Annals of the CIRP, Vol. 30, pp.21-25, 1981.

[9] Altintas, Y. and Budak, E., "Analytical Prediction of Stability Lobes in Milling," Annals of the CIRP, Vol. 44, No. 1, 357-362, 1995.

DOI: 10.1016/s0007-8506(07)62342-7

[10] Altintas, Y. and Budak, E., "Analytical Prediction of Stability Lobes in Ball End Milling," Transactions of the ASME, Vol. 121, pp.586-592, 1999.

DOI: 10.1115/1.2833064

[11] Zheng, Charles-Ming, Convolution Modeling of Cutting Force for the Milling of Free Form Surface and the Prediction of Chatter," Theses & Dissertations of Masters, Graduate Institute of Mechanical Engineering, National Cheng Kung University, 1994.

[12] Wang, J. J., Liang, S. Y. and Book, W. J., "Convolution Analysis of Milling Forces Pulsation," ASME Journal od Engineering for Industry, Vol. 116, pp.17-25, 1994.

[13] Zheng, Kun-Chyung, "Analysis and Experiment of Milling Chatter in the Feed or Nor-to-feed Direction," Theses & Dissertations of Masters, Graduate Institute of Mechanical Engineering, National Cheng Kung University, 1995.

[14] Insperger, T., Mann B. P., Stépán G. and Bayly P. V., "Stability of Up-milling and Down-milling, Part 1: Alternative Analytical Methods" International Journal of Machine Tools & Manufacture, Vol. 43, pp.25-34, 2003.

DOI: 10.1016/s0890-6955(02)00159-1
