High-Temperature Dry Sliding Friction and Wear Characteristics of As-Cast SiCP/A356 Composite

Yun Xun Jin; Xiao Ya Wang; Qiang Qiang Tong; Hong Mei Chen; Jung Moo Lee

doi:10.4028/www.scientific.net/AMR.690-693.318

Paper Titles

Experimental Research on Size Effect of Magnetic Hysteresis Loop for Q235 Steel
p.298

Analysis and Research on the Microstructure Fractal Characteristics of the Copper Matrix Composites
p.305

Dynamic Analysis of the Rotating Composite Thin-Walled Cantilever Beams with Shear Deformation
p.309

Finite Element Model and Bending for Marine Composite Flexible Pipes
p.314

High-Temperature Dry Sliding Friction and Wear Characteristics of As-Cast SiC_P/A356 Composite
p.318

Influence of Fiber’s Surface State on Mechanical Properties and Fiber-Matrix Interaction of CFRP
p.323

Microstructure and Properties of Deformation-Processed Cu–Cr In Situ Composites
p.329

Preparation of the High Temperature Resisting Material with Al-CrO₃ System by SHS
p.334

Study on High-Speed Milling Force of SiC_p/Al Matrix Composite
p.338

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 690-693High-Temperature Dry Sliding Friction and Wear...

High-Temperature Dry Sliding Friction and Wear Characteristics of As-Cast SiC_P/A356 Composite

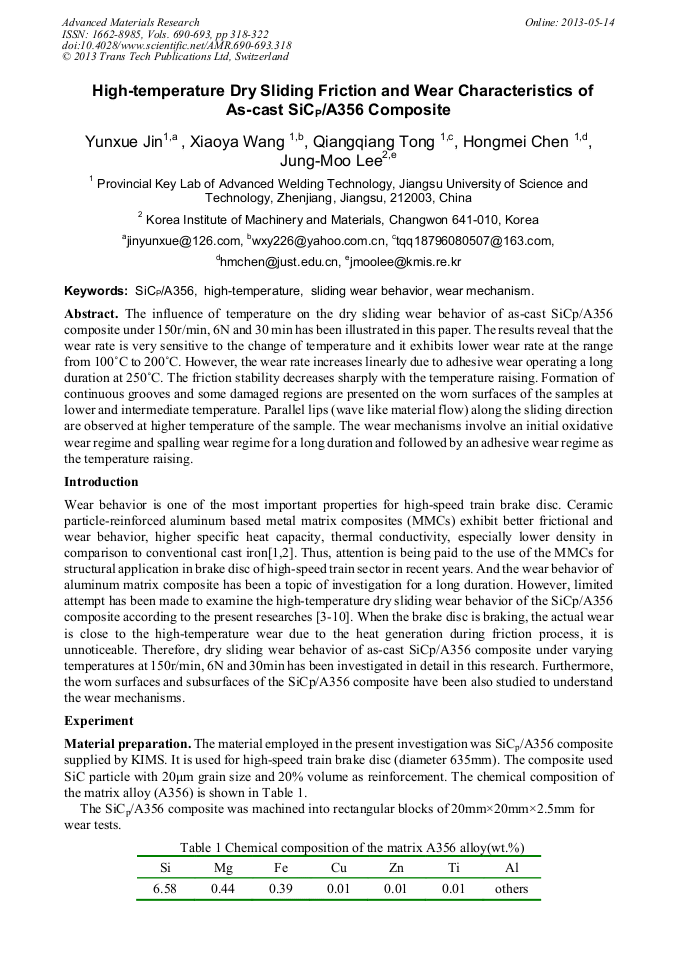

Abstract:

The influence of temperature on the dry sliding wear behavior of as-cast SiCp/A356 composite under 150r/min, 6N and 30 min has been illustrated in this paper. The results reveal that the wear rate is very sensitive to the change of temperature and it exhibits lower wear rate at the range from 100°C to 200°C. However, the wear rate increases linearly due to adhesive wear operating a long duration at 250°C. The friction stability decreases sharply with the temperature raising. Formation of continuous grooves and some damaged regions are presented on the worn surfaces of the samples at lower and intermediate temperature. Parallel lips (wave like material flow) along the sliding direction are observed at higher temperature of the sample. The wear mechanisms involve an initial oxidative wear regime and spalling wear regime for a long duration and followed by an adhesive wear regime as the temperature raising.
