HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 690-693Microstructure and Properties of...

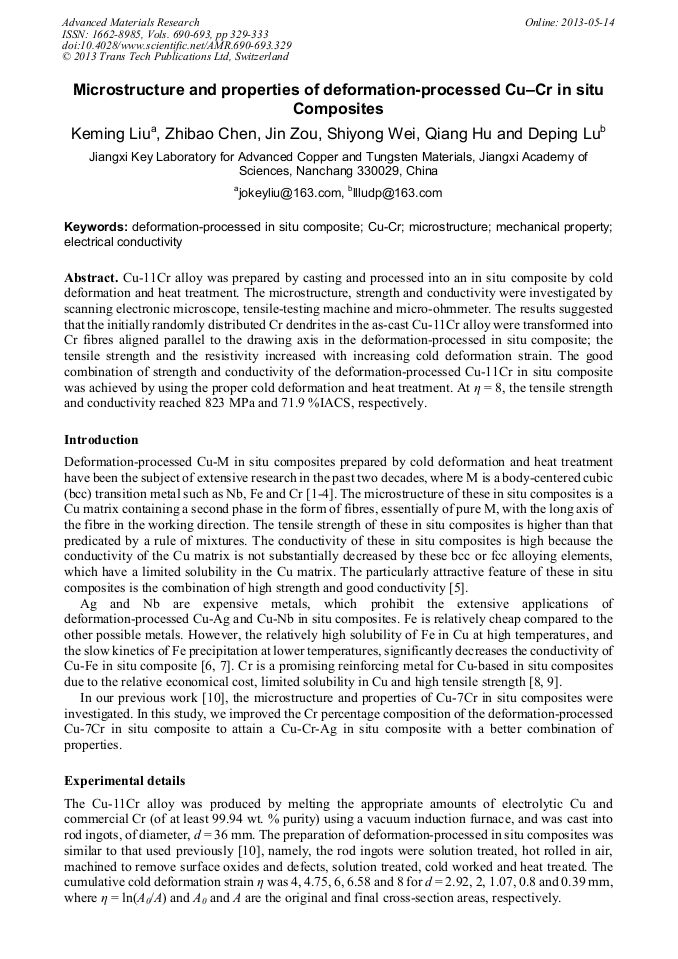

Microstructure and Properties of Deformation-Processed Cu–Cr In Situ Composites

Abstract:

Cu-11Cr alloy was prepared by casting and processed into an in situ composite by cold deformation and heat treatment. The microstructure, strength and conductivity were investigated by scanning electronic microscope, tensile-testing machine and micro-ohmmeter. The results suggested that the initially randomly distributed Cr dendrites in the as-cast Cu-11Cr alloy were transformed into Cr fibres aligned parallel to the drawing axis in the deformation-processed in situ composite; the tensile strength and the resistivity increased with increasing cold deformation strain. The good combination of strength and conductivity of the deformation-processed Cu-11Cr in situ composite was achieved by using the proper cold deformation and heat treatment. At η = 8, the tensile strength and conductivity reached 823 MPa and 71.9 %IACS, respectively.

You might also be interested in these eBooks

Materials Design, Processing and Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 690-693)

Pages:

329-333

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.690-693.329

Citation:

Cite this paper

Online since:

May 2013

Authors:

Ke Ming Liu, Z.B. Chen, Jin Zou, Shi Yong Wei, Qiang Hu, De Ping Lu

Keywords:

Cu-Cr, Deformation-Processed In Situ Composite, Electrical Conductivity, Mechanical Property, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H.R.Z. Sandim, M.J.R. Sandim, H.H. Bernardi, J.F.C. Lins and D. Raabe: Scripta Materialia Vol. 51 (2004), p.1099.

DOI: 10.1016/j.scriptamat.2004.07.026

Google Scholar

[2] X. Sauvage, P. Jessner, F. Vurpillot and R. Pippan: Scripta Materialia Vol. 58 (2008), p.1125.

DOI: 10.1016/j.scriptamat.2008.02.010

Google Scholar

[3] Z.W. Wu and L. Meng: Journal of Alloys and Compounds Vol. 509 (2011), p.8917.

Google Scholar

[4] S.I. Hong, P.H. Kim and Y.C. Choi: Scripta Materialia Vol. 51 (2004), p.95.

Google Scholar

[5] K.M. Liu, D.P. Lu, H.T. Zhou, A. Atrens, J. Zou, Y.L. Yang and S.M. Zeng: Materials Science and Engineering A Vol. 527 (2010), p.4953.

Google Scholar

[6] L. Qu, E.G. Wang, X.W. Zuo, L. Zhang and J.C. He: Materials Science and Engineering A Vol. 528 (2011), p.2532.

Google Scholar

[7] H.Y. Gao, J. Wang, D. Shu and B.D. Sun: Materials Science and Engineering A Vol. 452-453 (2007), p.367.

Google Scholar

[8] Y. Liu, S. Shao, K.M. Liu, X.J. Yang and D.P. Lu: Materials Science and Engineering A Vol. 531 (2012), p.141.

Google Scholar

[9] L.M. Peng, X.M. Mao, K.D. Xu and W.J. Ding: Journal of Materials Processing Technology Vol. 166 (2005), p.193.

Google Scholar

[10] K.M. Liu, D.P. Lu, H.T. Zhou, A. Atrens, Z.B. Chen, J. Zou and S.M. Zeng: Journal of Alloys and Compounds Vol. 500 (2010), p. L22.

Google Scholar

[11] H.Y. Gao, J. Wang, D. Shu and B.D. Sun: Scripta Materialia Vol. 53 (2005), p.1105.

Google Scholar
