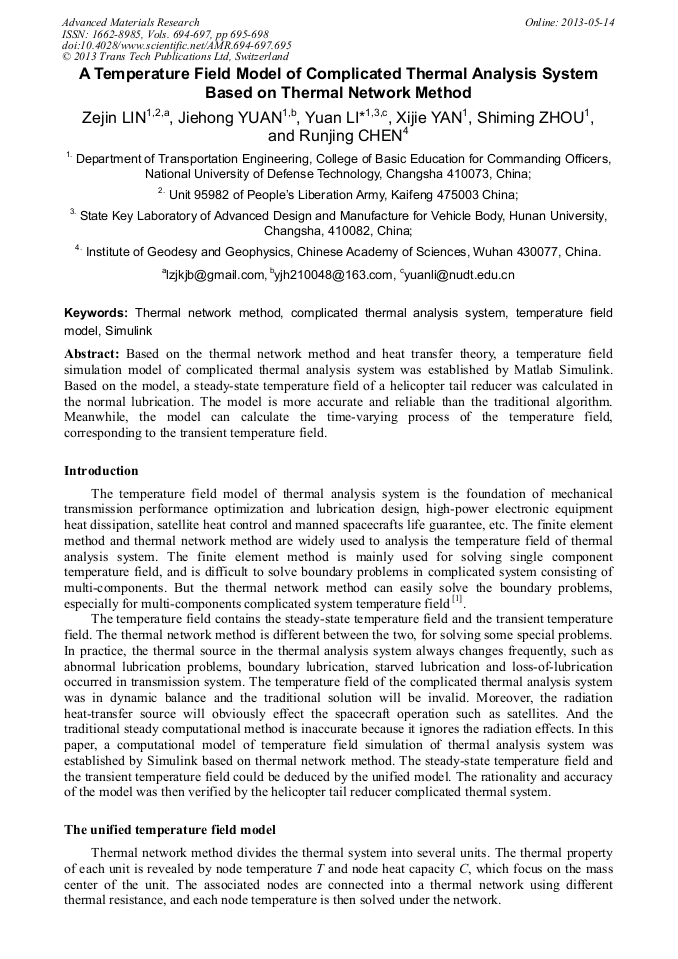

A Temperature Field Model of Complicated Thermal Analysis System Based on Thermal Network Method

Abstract:

Based on the thermal network method and heat transfer theory, a temperature field simulation model of complicated thermal analysis system was established by Matlab Simulink. Based on the model, a steady-state temperature field of a helicopter tail reducer was calculated in the normal lubrication. The model is more accurate and reliable than the traditional algorithm. Meanwhile, the model can calculate the time-varying process of the temperature field, corresponding to the transient temperature field.

• Periodical: Advanced Materials Research (Volumes 694-697)
• Pages: 695-698
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.694-697.695
• Online since: May 2013
• Authors: Ze Jin Lin, Jie Hong Yuan, Yuan Li, Xi Jie Yan, Shi Ming Zhou, Run Jing Chen
• Keywords: Complicated Thermal Analysis System, Simulink, Temperature Field Model, Thermal Network Method

References

[1] LIU Zhe, WANG Yan-shuang. Current situation and expectation of research on temperature field for rolling bearing[J]. Mechanical Transmission, 2010, 34(3): 88-91. (in Chinese)

[2] LIU Zhi-quan, SHEN Yun-wen, CHEN Guo-ding, et al. Transient thermal analysis of a helicopter gear transmission system[J]. Aerospace Power, 1999, 14(3): 309-312. (in Chinese)

[3] HUANG Yong-an, LI Wen-cheng, GAO Xiao-ke. Application simulation and efficient algorithm development of Matlab7.0/Simulink6.0[M]. Beijing: TsingHua University Press, 2008: 288-289. (in Chinese)

[4] YUAN Jie-hong, LIN Ze-jin. The calculation of friction power loss for spiral bevel gears[J]. Journal of National University of Defense Technology, 2012, 34(5): 115-120. (in Chinese)

[5] YANG Shi-ming, TAO Wen-quan. Heat transfer[M]. Beijing: High Education Press, 2006: 47-54. (in Chinese)

[6] HANDSCHUH R F. Thermal behavior of spiral bevel gears[D]. Case Western Reserve University, 1993.
