Comparative Study of Pure and Ni-Doped ZnFe2O4 Nanoparticles for Structural, Optical and Magnetic Properties

A. Manikandan; J. Judith Vijaya; L. John Kennedy

doi:10.4028/www.scientific.net/AMR.699.524

Paper Titles

Effect of Carbon Fiber Filament on Electrical and Mechanical Properties of Epoxy/Graphite Composite
p.502

Fabrication of Biophotonic Devices with Retinoids and Life Time
p.507

Fabrication of a Large-Scale Conductive Composite Film Containing Electrically Aligned Carbon Nanotubes
p.513

The Research of the Orgince Silicone Emulsion Hybridized Chromium-Aluminum Phosphate Composites
p.519

Comparative Study of Pure and Ni-Doped ZnFe₂O₄ Nanoparticles for Structural, Optical and Magnetic Properties
p.524

Polymer-Bitumen Binder with the Addition of Single-Walled Carbon Nanotubes
p.530

Characterization and Testing of the Locally Fabricated Encapsulants in Egypt for Commercial Photovoltaic Modules Production
p.535

The Development Situation of Material Based on Dental Implant
p.541

Research on the Hysteresis of Ring-Like MR Isolator
p.549

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 699Comparative Study of Pure and Ni-Doped ZnFe2O4...

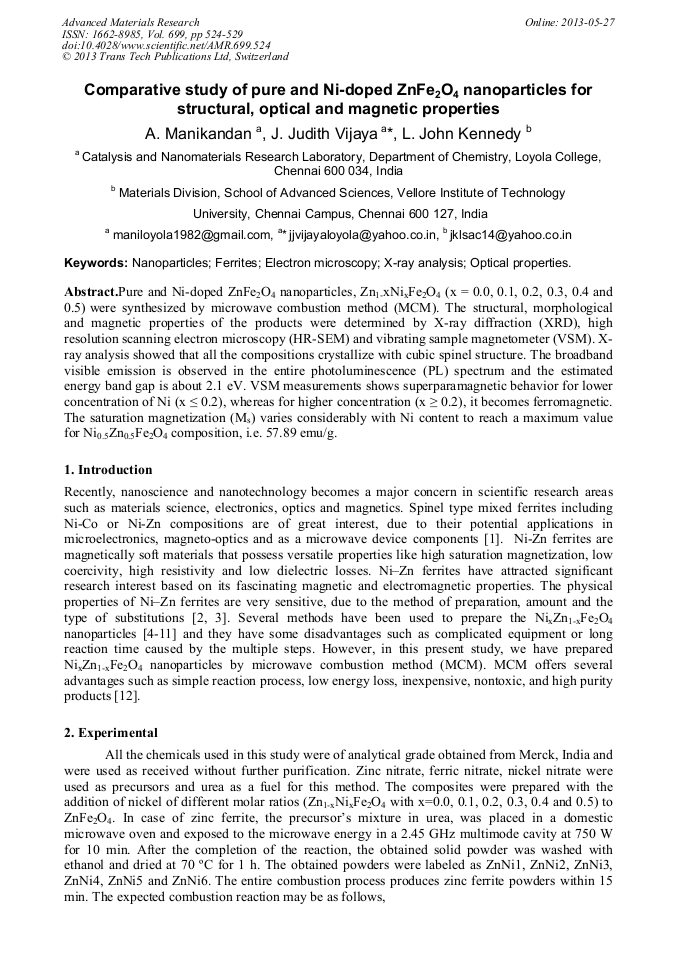

Comparative Study of Pure and Ni-Doped ZnFe₂O₄ Nanoparticles for Structural, Optical and Magnetic Properties

Abstract:

Pure and Ni-doped ZnFe2O4 nanoparticles, Zn1-xNixFe2O4 (x = 0.0, 0.1, 0.2, 0.3, 0.4 and 0.5) were synthesized by microwave combustion method (MCM). The structural, morphological and magnetic properties of the products were determined by X-ray diffraction (XRD), high resolution scanning electron microscopy (HR-SEM) and vibrating sample magnetometer (VSM). X-ray analysis showed that all the compositions crystallize with cubic spinel structure. The broadband visible emission is observed in the entire photoluminescence (PL) spectrum and the estimated energy band gap is about 2.1 eV. VSM measurements shows superparamagnetic behavior for lower concentration of Ni (x ≤ 0.2), whereas for higher concentration (x ≥ 0.2), it becomes ferromagnetic. The saturation magnetization (Ms) varies considerably with Ni content to reach a maximum value for Ni0.5Zn0.5Fe2O4 composition, i.e. 57.89 emu/g.
