Beneficiation of Fe-Mn Minerals in Yunnan Province

Abstract:

The paper recovered the Fe and Mn minerals from a refractory ore in Yunnan province. The grade of Fe in raw ore is 30.16% and the grade of Mn in raw ore is 20.05%. Through technological mineralogy study, we found the Fe was mainly in the forms of Hematite and limonite, and the Mn was mainly in the forms of pyrolusite and psilomelane. Through the process of strong magnetic separation, re-grinding and magnetic separation, the minerals of Fe and Mn were recovered, and the Fe mineral was separated from mixed concentrate successfully. Finally, we got two products. They were Fe concentrate with the grade of 60.35%, recovery of 81.26%, and Mn concentrate with the grade of 37.35%, recovery of 71.26%. This test to increase enterprise efficiency and reduce the environmental pressure is of much benefit.

You might also be interested in these eBooks

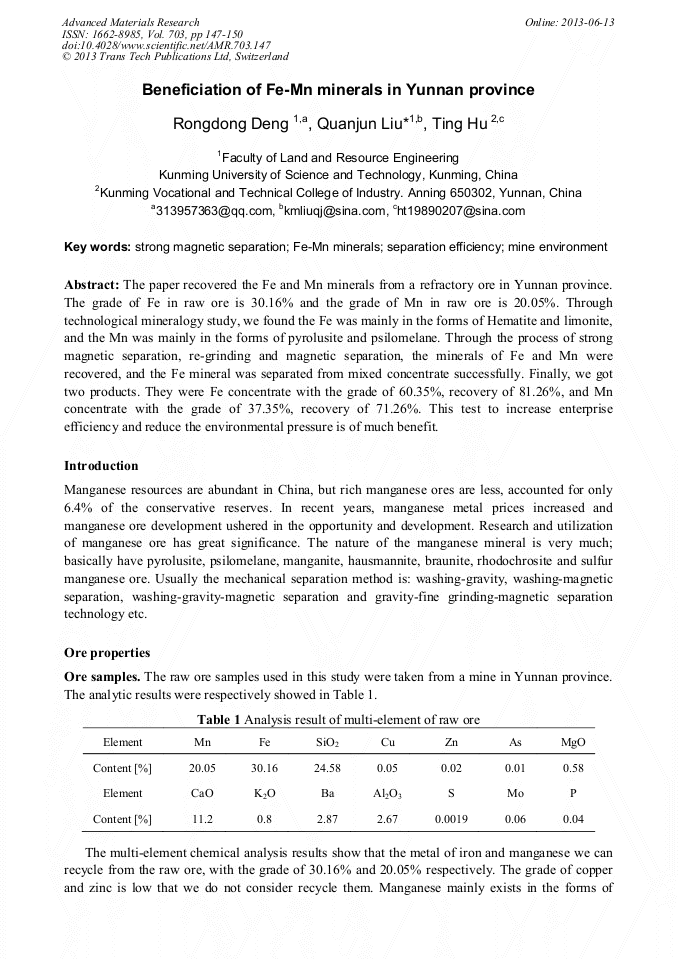

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 703)

Pages:

147-150

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.703.147

Citation:

Cite this paper

Online since:

June 2013

Authors:

Rong Dong Deng, Quan Jun Liu, Ting Hu

Keywords:

Fe-Mn Minerals, Mine Environment, Separation Efficiency, Strong Magnetic Separation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Yalcin, T., 1993. Iron ore concentration by magnetoflotation. In XVIIIth International Mineral Processing Congress, Sydney, p.712–718.

Google Scholar

[2] T.J. Veasey, B.A. Wills: Review of methods of improving mineral liberation. Minerals Engineering. Vol. 4 (1991), 747-752.

DOI: 10.1016/0892-6875(91)90062-z

Google Scholar

[3] Q.J. Liu, X.J. Wang, S. R. Zhou: Study on the All- sliming Flotation of Low-grade Zinc Oxide Ore. Proceedings of XXIV INTERNATIONAL MINGRAL PROCESSING CONGRESS 1 (2008), 1389-1394.

Google Scholar

[4] Song, S., Lu, S., Lopez-Valdivieso, A., 2002. Magnetic separation of hematite and limonite fines as hydrophobic flocs from iron ores. Minerals Engineering 15 (6): 415–422.

DOI: 10.1016/s0892-6875(02)00054-7

Google Scholar
