Calculation of Follower Displacement Error for a Translating Roller-Follower Plate Cam

Abstract:

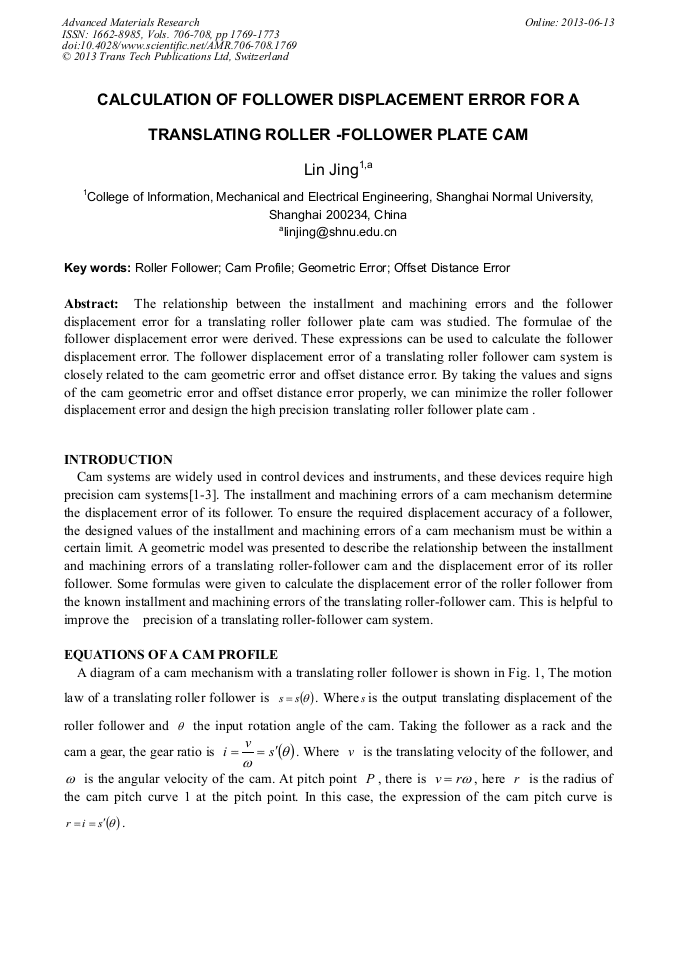

The relationship between the installment and machining errors and the follower displacement error for a translating roller follower plate cam was studied. The formulae of the follower displacement error were derived. These expressions can be used to calculate the follower displacement error. The follower displacement error of a translating roller follower cam system is closely related to the cam geometric error and offset distance error. By taking the values and signs of the cam geometric error and offset distance error properly, we can minimize the roller follower displacement error and design the high precision translating roller follower plate cam
