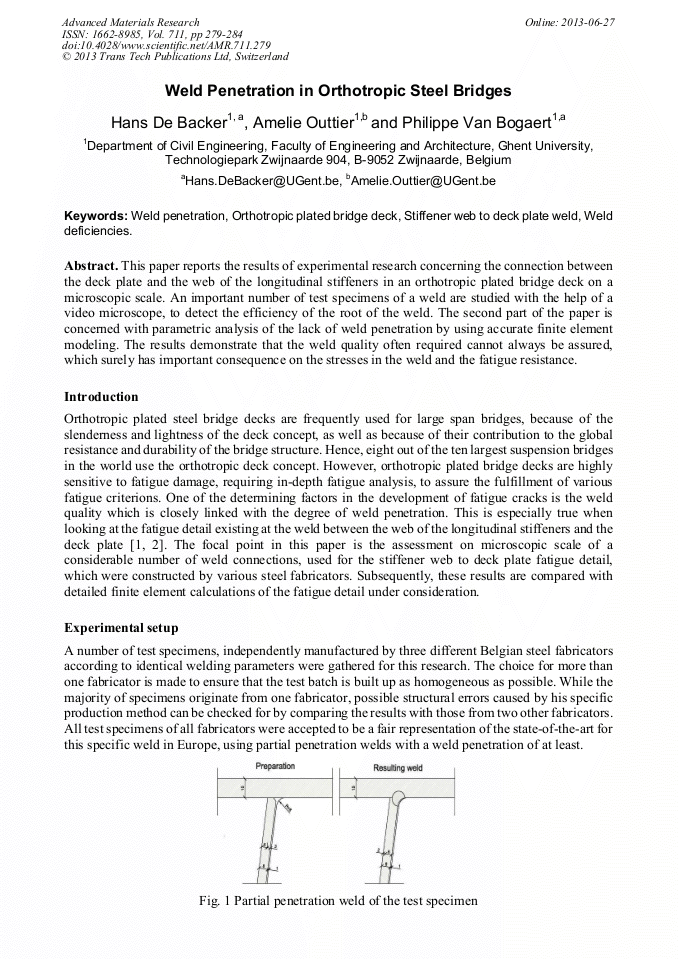

Weld Penetration in Orthotropic Steel Bridges

Abstract:

This paper reports the results of experimental research concerning the connection between the deck plate and the web of the longitudinal stiffeners in an orthotropic plated bridge deck on a microscopic scale. An important number of test specimens of a weld are studied with the help of a video microscope, to detect the efficiency of the root of the weld. The second part of the paper is concerned with parametric analysis of the lack of weld penetration by using accurate finite element modeling. The results demonstrate that the weld quality often required cannot always be assured, which surely has important consequence on the stresses in the weld and the fatigue resistance.

You might also be interested in these eBooks

Manufacture Engineering, Quality and Production System II

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 711)

Pages:

279-284

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.711.279

Citation:

Cite this paper

Online since:

June 2013

Authors:

Hans De Backer, Amelie Outtier, Philippe van Bogaert

Keywords:

Orthotropic Plated Bridge Deck, Stiffener Web to Deck Plate Weld, Weld Deficiencies, Weld Penetration

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L. Frýba, L. Gajdos: Fatigue properties of orthotropic decks on railway bridges, Engineering Structures, Vol. 21 No. 7 (1999), pp.639-652.

DOI: 10.1016/s0141-0296(98)00005-4

Google Scholar

[2] P. A. Tsakoupolos, J. W. Fisher: Fatigue Performance and Design Refinements of Steel Orthotropic Deck Panels Based on Full-Scale Laboratory Tests, Int. J. Steel Struct., Vol. 5 No. 3 (2005), pp.211-223.

Google Scholar

[2] P. A. Tsakoupolos, J. W. Fisher: Full-scale fatigue tests of steel orthotropic deck panel for the Bronx-Whitestone Bridge rehabilitation, Bridge Structures, Vol. 1 No. 1 (2005), pp.55-66.

DOI: 10.1080/15732480412331294704

Google Scholar
