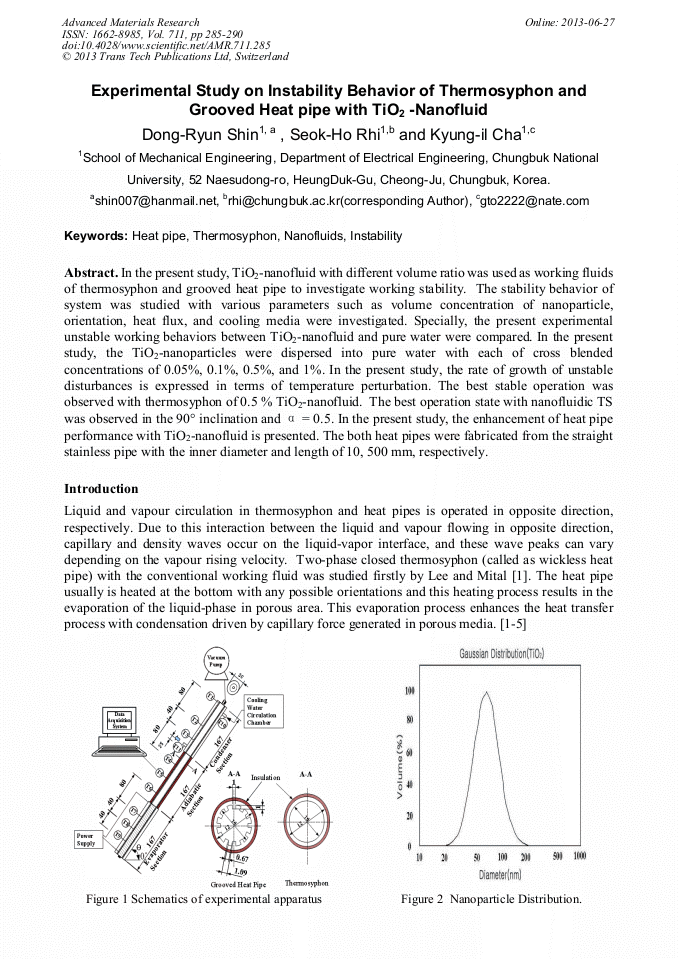

Experimental Study on Instability Behavior of Thermosyphon and Grooved Heat Pipe with TiO₂-Nanofluid

Abstract:

In the present study, TiO₂-nanofluid with different volume ratio was used as working fluids of thermosyphon and grooved heat pipe to investigate working stability. The stability behavior of system was studied with various parameters such as volume concentration of nanoparticle, orientation, heat flux, and cooling media were investigated. Specially, the present experimental unstable working behaviors between TiO₂-nanofluid and pure water were compared. In the present study, the TiO₂-nanoparticles were dispersed into pure water with each of cross blended concentrations of 0.05%, 0.1%, 0.5%, and 1%. In the present study, the rate of growth of unstable disturbances is expressed in terms of temperature perturbation. The best stable operation was observed with thermosyphon of 0.5 % TiO₂-nanofluid. The best operation state with nanofluidic TS was observed in the 90° inclination and α = 0.5. In the present study, the enhancement of heat pipe performance with TiO₂-nanofluid is presented. The both heat pipes were fabricated from the straight stainless pipe with the inner diameter and length of 10, 500 mm, respectively.

• Periodical: Advanced Materials Research (Volume 711)
• Pages: 285-290
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.711.285
• Online since: June 2013
• Authors: Dong Ryun Shin, Seok Ho Rhi, Kyung Il Cha
• Keywords: Heat Pipe, Instability, Nanofluid, Thermosyphon

References

[1] Y. Lee and U. Mital, A Two-Phase Closed Thermosyphon, Int. J. of Heat and Mass Trasnsfer, Vol. 15, (1972), pp.1695-1707

DOI: 10.1016/0017-9310(72)90098-1

[2] H. Imura, K. Sasaguchi and H. Kozai, Critical Heat Flux in a Two Phase Closed Thermosyphon," Int. J. of Heat Transfer, Vol. 26, No. 8 (1993), pp.1181-1188.

DOI: 10.1016/s0017-9310(83)80172-0

[3] C. A. Busse, and J. E. Kemme, Dry-Out Phenomena in Gravity-Assist Heat Pipes with Capillary Flow, Int. J. Heat Mass Transfer, Vol. 23, No. 5 (1980), pp.643-654

DOI: 10.1016/0017-9310(80)90008-3

[4] F. C. Prenger, J. E. Kemme, M. Groll and T. Spendel, Performance Limits for Smooth-Wall, Gravity Assisted Heat Pipes", AIAA 18th Thermophysics Conference, Montreal, Canada, June (1983)

DOI: 10.2514/6.1983-1433

[5] A. Asias, M. Shusser, A. Leitner, A. Nabi, G. Grossman, Instability of Heat Pipe Performance at Large Axial Accelerations, J. Heat Transfer, Vol. 129, No. 137 (2007), pp.137-140

DOI: 10.1115/1.2402177

[6] H. F.Creveling, J. F.DePaz, J. Y.Baladi, and R. J. Schoenhals, Stability Characteristics of a Single-Phase Free Convection Loop,"J. Fluid Mech., Vol. 67 (1975), pp.65-84

DOI: 10.1017/s0022112075000171

[7] J. C. Jang, S. H. Rhi and C. G. Lee, Heat Transfer Characteristics on Toroidal Convection Loop with Nanofluids, KSME Journal B, Vol. 33 (2009), pp.235-241

[8] C.Y. Tsai, H.T. Chien, P.P. Ding, B. Chan, T.Y. Luh, P.H. Chen, Effect of structural character of gold nanoparticles in nanofluid on heat pipe thermal performance, Material Letters, Vol. 58 (2004), p.1461–1465

DOI: 10.1016/j.matlet.2003.10.009

[9] H.B. Ma, C. Wilson, B. Borgmeyer, K. Park, Q. Yu, S.U.S. Choi, M. Tirumala, Effect of nanofluid on the heat transport capability in an oscillating heat pipe, Applied Physics Letters, Vol. 88, No. 14 (2006), p.143116

DOI: 10.1063/1.2192971

[10] C.Y. Tsai, H.T. Chien, B. Chan, P.H. Chen, P.P. Ding and T.Y. Luh, Effect of structural character of gold nano-particles in nanofluid on heat pipe thermal performance, Materials Letters, Vol. 58 (2004), p.1461–1465

DOI: 10.1016/j.matlet.2003.10.009

[11] S.W. Kang, W.C. Wei, S.H. Tsai and S.Y. Yang, Experimental investigation of silver nano-fluid on heat pipe thermal performance, Applied Thermal Engineering, Vol. 26 (2006), p.2377–2382

DOI: 10.1016/j.applthermaleng.2006.02.020

[12] S.H. Rhi, K. Cha, K.W. Lee, Y. Lee, A two-phase loop thermosyphons with nanofluids, in: Proceedings of the 13th International Heat Pipe Conference, (2004), p.247–251

[13] H.B. Ma, C. Wilson, B. Borgmeyer, K. Park, Q. Yu, S.U.S. Choi and M. Tirumala, An experimental investigation of heat transport capability in a nanofluid oscillating heat pipe, Journal of Heat Transfer, Vol. 128 (2006), p.1213–1216

DOI: 10.1115/1.2352789

[14] S.U.S. Choi, J.A. Eastman, S.LiW. Yu and J. Thompson, Anomalously increased effective thermal conductivities of ethylene glycol-based containing copper nano-particles, Applied Physics Letters, Vol. 78 (6) (2001), p.718–720

DOI: 10.1063/1.1341218

[15] D. R. Shin, S. H. Rhi, T. K. Lim and J. C. Jang, Comparative study on heat transfer characteristics of nanofluidic thermosyphon and grooved heat pipe, Journal of Mechanical Science and Technology, Vol. 25 (6) (2011), p.1391–1398

DOI: 10.1007/s12206-011-0409-9
