Based on OOA Modeling of Gantry Crane CAD System

Abstract:

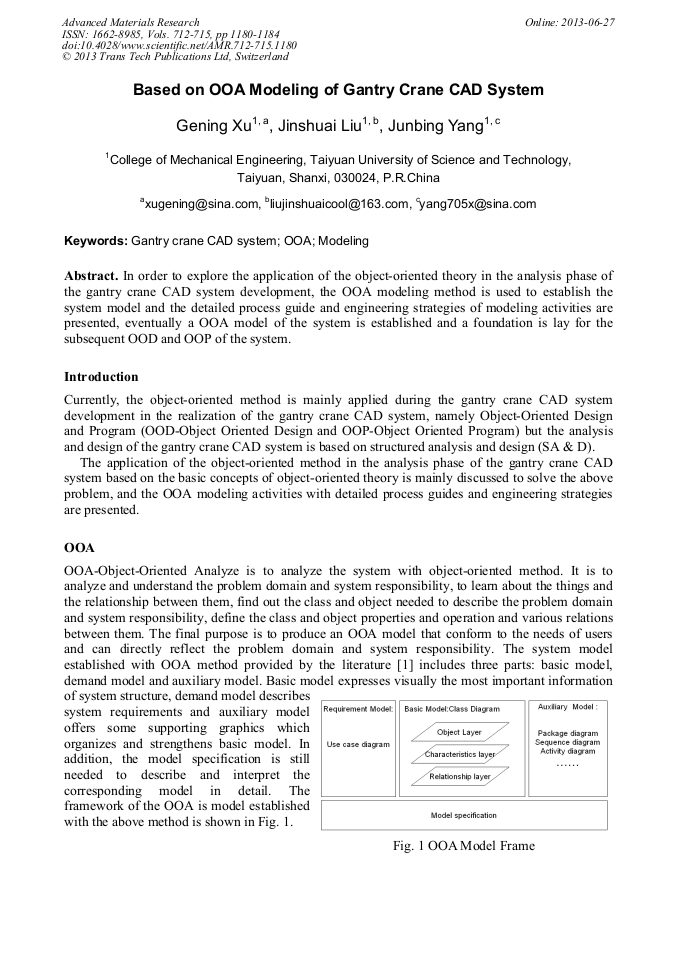

In order to explore the application of the object-oriented theory in the analysis phase of the gantry crane CAD system development, the OOA modeling method is used to establish the system model and the detailed process guide and engineering strategies of modeling activities are presented, eventually a OOA model of the system is established and a foundation is lay for the subsequent OOD and OOP of the system.
