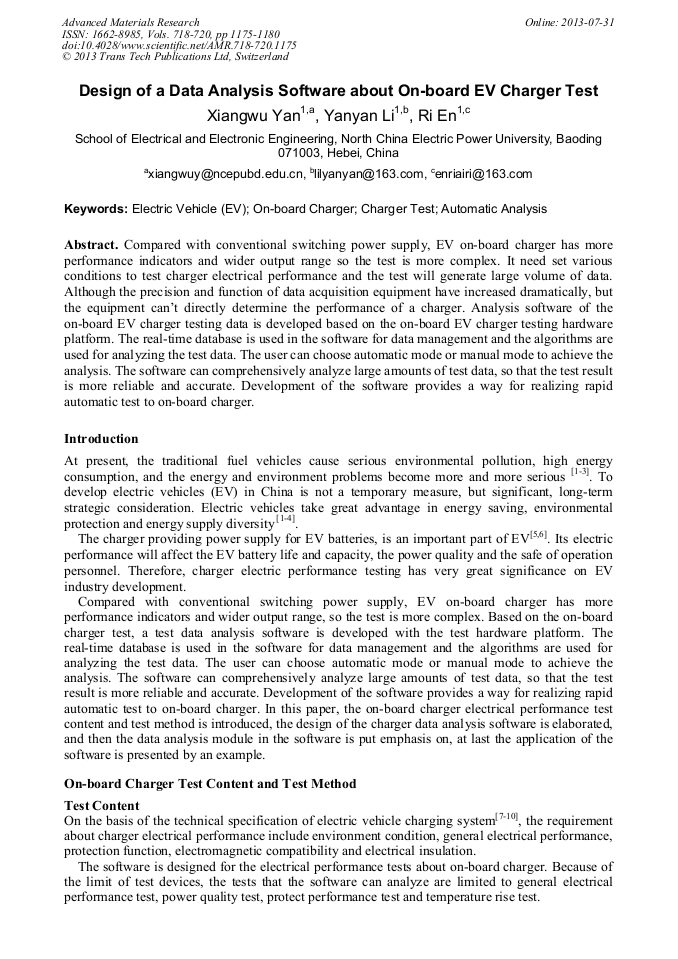

Design of a Data Analysis Software about On-Board EV Charger Test

Abstract:

Compared with conventional switching power supply, EV on-board charger has more performance indicators and wider output range so the test is more complex. It need set various conditions to test charger electrical performance and the test will generate large volume of data. Although the precision and function of data acquisition equipment have increased dramatically, but the equipment cant directly determine the performance of a charger. Analysis software of the on-board EV charger testing data is developed based on the on-board EV charger testing hardware platform. The real-time database is used in the software for data management and the algorithms are used for analyzing the test data. The user can choose automatic mode or manual mode to achieve the analysis. The software can comprehensively analyze large amounts of test data, so that the test result is more reliable and accurate. Development of the software provides a way for realizing rapid automatic test to on-board charger.

• Periodical: Advanced Materials Research (Volumes 718-720)
• Pages: 1175-1180
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.718-720.1175
• Online since: July 2013
• Authors: Xiang Wu Yan, Yan Yan Li, Ri En
• Keywords: Automatic Analysis, Charger Test, Electric Vehicle (EV), On-Board Charger

References

[1] Song Yonghua, Yang Xia, Lu Zongxia, Integration of plug-in hybrid and electric vehicles: experience from China, Proceedings of Power & Engineering Society General Meeting, Minneapolis, Minnesota, USA. (2010) 1-5.

DOI: 10.1109/pes.2010.5589926

[2] Chan C C. The state of the art of electric, hybrid, and fuel cell vehicles, Proceedings of the IEEE. 95 (2007) 704-7l8.

[3] Yang Yongbiao, Ding Xiaohua, Zhu Jinda, et al. Assumption of Internet of things applied in electric vehicle charging facilities, Automation of Electric Power Systems. 34 (2010) 95-98 (in Chinese).

[4] Zhang Wenliang, Wu Bin, LI Wufeng, et al. Discussion on development trend of battery electric vehicles in China and its energy supply mode, J. Power System Technology. 33 (2009) 1-5 (in Chinese).

[5] Yan Xiangwu, Xiao Xiangning, Zhang Bo, et al. The Advanced Technologies of Electric Vehicle Charger, J. Power Electronics. 12(2011) 20-26 (in Chinese).

[6] Ding Xinzhi, Bi Zhizhou, et al. Technique Analysis and Experiment of Electric Vehicle Off-board Charger, J. Electrical Measurement & Instrumentation. 49 (2012) 14-17 (in Chinese).

[7] GB/T 19826－2005, General specification and safety requirements for DC power supply equipment of power projects (in Chinese).

[8] Q/GDW 397－2009, General technical requirements for electric vehicle charging establishment (in Chinese).

[9] SZDB/Z 29.3－2010, Technical specification of electric vehicle charging system (in Chinese).

[10] NB/T 33001－2010, Specification for electric vehicle off-board conductive charger (in Chinese).
