Fabrication and Calibration of a Thin Film Heat Flux Sensor

Abstract:

In order to measure heat flux in micro scale space, a thin film heat flux sensor is designed, fabricated and calibrated. Vacuum coating technology is applied to fabricate the sensor with a total thickness of 0.49μm. Silicon dioxide wafer is used as substrate. Cobalt and stibium is deposited on the substrate to form thermopile. Correlation coefficient R is 0.94025. Sensitivity of the heat flux sensor is 0.05062 μV/(W/m²). Time constant of the sensor is 0.66044 seconds. Dynamic test shows that the heat flux sensor responds rapidly to periodic heat flux which is supplied by halogen lamp.

You might also be interested in these eBooks

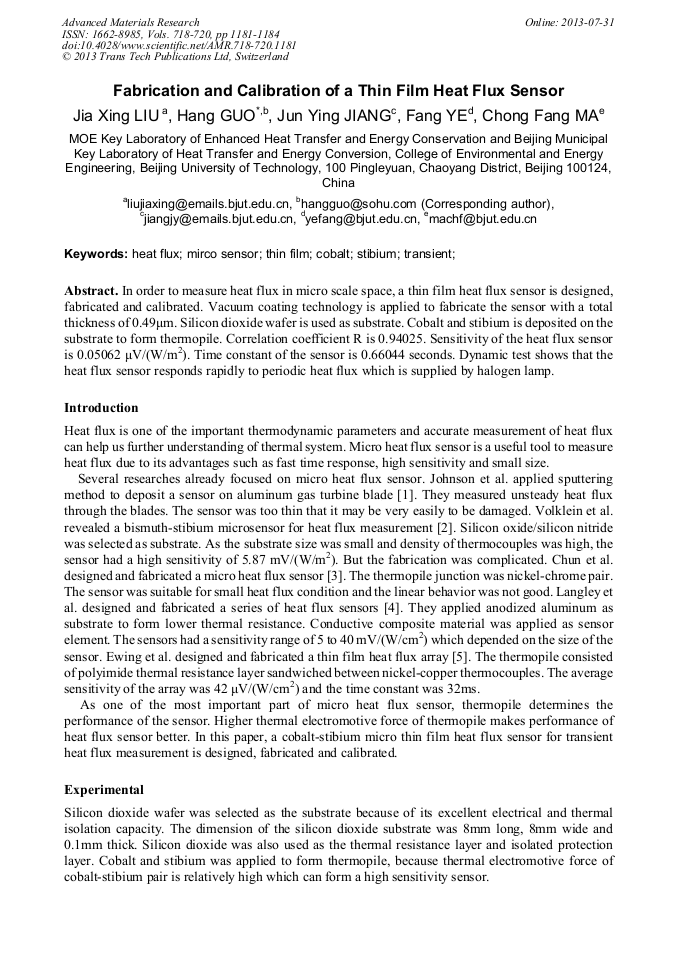

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 718-720)

Pages:

1181-1184

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.718-720.1181

Citation:

Cite this paper

Online since:

July 2013

Authors:

Jia Xing Liu, Hang Guo, Jun Ying Jiang, Fang Ye, Chong Fang Ma

Keywords:

Cobalt, Heat Flux, Mirco Sensor, Stibium, Thin Film, Transient

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L.P. Johnson, T.E. Diller, Measurements with a heat flux microsensor deposited on a transonic turbine blade, In: Proceedings of International Congress on Instrumentation in Aerospace Simulation Facilities, Wright-Patterson AFB, OH, USA, 1995, p.37/1-37/7.

DOI: 10.1109/iciasf.1995.519468

Google Scholar

[2] F. Volklein, E. Kessler, Thermoelectric microsensor for heat flux measurement, In: Proceedings of the 17th International Conference on Thermoelectrics, Nagoya, 1998, pp.214-217.

DOI: 10.1109/ict.1998.740355

Google Scholar

[3] C. Jaechul, S.H. Oh, S.S. Lee, M. Kim, Design and fabrication of micro heat flux sensor, In: Proceedings of the 1999 IEEE/RSJ International Conference on Intelligent Robots and Systems, Kyongju, South Korea, 1999, pp.1045-1048.

DOI: 10.1109/iros.1999.812818

Google Scholar

[4] L.W. Langley, A. Barnes, G. Matijasevic, P. Gandhi, High-sensitivity, surface-attached heat flux sensors, Microelectronics Journal. 30 (1999) 1163-1168.

DOI: 10.1016/s0026-2692(99)00080-4

Google Scholar

[5] J. Ewing, A. Gifford, D. Hubble, P. Vlachos, A. Wicks, T. Diller, A direct-measurement thin-film heat flux sensor array, Measurement Science and Technology. 21 (2010) 1-8.

DOI: 10.1088/0957-0233/21/10/105201

Google Scholar

[6] H. Guo, J.Y. Jiang, J.X. Liu, Z.H. Nie, F. Ye, C. F. Ma. Fabrication and calibration of Cu-Ni thin film thermocouples, Advanced Materials Research. 512-515 (2012) 2068-2071.

DOI: 10.4028/www.scientific.net/amr.512-515.2068

Google Scholar
