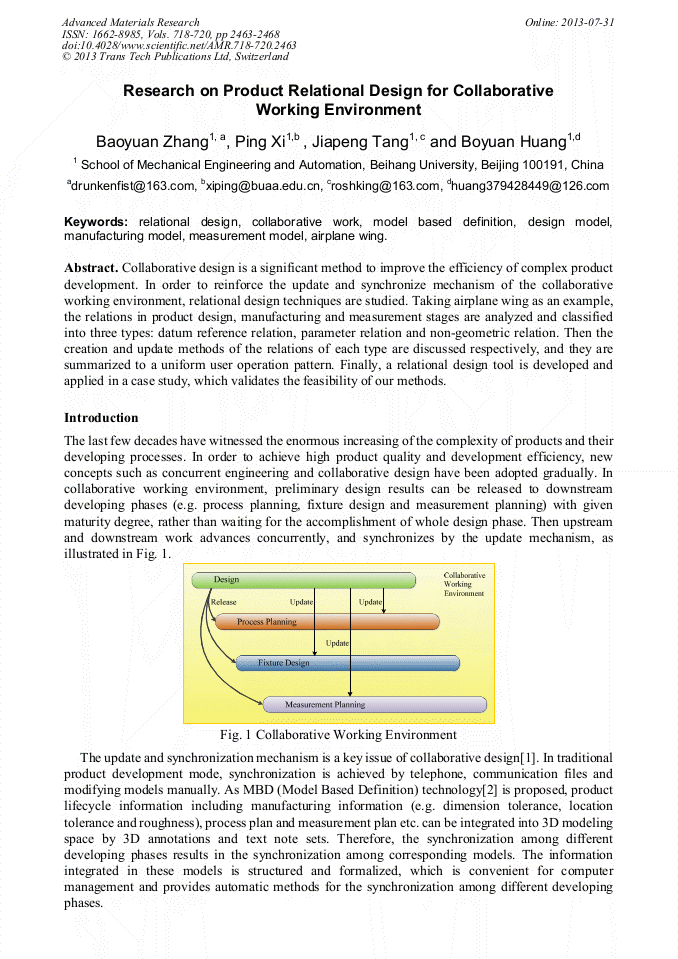

Research on Product Relational Design for Collaborative Working Environment

Abstract:

Collaborative design is a significant method to improve the efficiency of complex product development. In order to reinforce the update and synchronize mechanism of the collaborative working environment, relational design techniques are studied. Taking airplane wing as an example, the relations in product design, manufacturing and measurement stages are analyzed and classified into three types: datum reference relation, parameter relation and non-geometric relation. Then the creation and update methods of the relations of each type are discussed respectively, and they are summarized to a uniform user operation pattern. Finally, a relational design tool is developed and applied in a case study, which validates the feasibility of our methods.

• Periodical: Advanced Materials Research (Volumes 718-720)
• Pages: 2463-2468
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.718-720.2463
• Online since: July 2013
• Authors: Bao Yuan Zhang, Ping Xi, Jia Peng Tang, Bo Yuan Huang
• Keywords: Airplane Wing, Collaborative Work, Design Model, Manufacturing Model, Measurement Model, Model Based Definition, Relational Design

References

[1] Weiming Shen, Qi Hao, Weidong Li, Computer supported collaborative design: retrospective and perspective, Computers in Industry, Vol. 59, (2008), pp.855-862.

DOI: 10.1016/j.compind.2008.07.001

[2] M. Alemanni, F. Destefanis, E. Vezzetti, Model-based definition design in the product lifecycle management scenario, International Journal of Advanced Manufacturing Technology, Vol. 52, (2011), p.1–14.

DOI: 10.1007/s00170-010-2699-y

[3] Qianli Xu; Jianxin Jiao, Modeling the design process of product variants with timed colored Petri nets. Journal of Mechanical Design, Transactions of the ASME, Vol. 131, (2009), No. 6, pp.0610091-0610099.

DOI: 10.1115/1.3125203

[4] Ali Yassine, Dan Braha, Complex concurrent engineering and the design structure matrix method, Concurrent Engineering Research and Applications, Vol. 11, (2003), No. 3, pp.165-176.

DOI: 10.1177/106329303034503

[5] W. Shen, Web-based infrastructure for collaborative product design: an overview, Proceedings of the 5th International Conference on CSCW in Design, Hong Kong, (2000), p.239–244.

[6] W. Shen, Q. Hao, H. Yoon, D.H. Norrie, Applications of agent systems in intelligent manufacturing: an update review, International Journal of Advanced Engineering Informatics, Vol. 20 (2006), No.4, p.415–431.

DOI: 10.1016/j.aei.2006.05.004

[7] S.S. Zhang, W. Shen, H. Ghenniwa, A review of Internet-based product information sharing and visualization, Computers in Industry, Vol. 54, (2004), No.1, 1–15.

DOI: 10.1016/j.compind.2003.09.002
