Research on Sucker Rod Displacement Measuring Technology Based on Double Integral of Acceleration

Abstract:

In allusion to the disadvantages of sucker rod displacement measuring technologies at present, we introduce an inertial measuring technology in which the design of acceleration measuring system, the design of IIR digital filter and double integral algorithm play significant roles. Through combination of hardware and software, the embedded measuring system was developed to measure the acceleration, process data and realize the serial communication. In our practical work, some chips were used in this system, eg 1221L-002, ADS1259, MSP430F1611, MAX202, etc. The test results showed that the accuracy of the measuring system reached to 5%, which met the request for oilfield.

You might also be interested in these eBooks

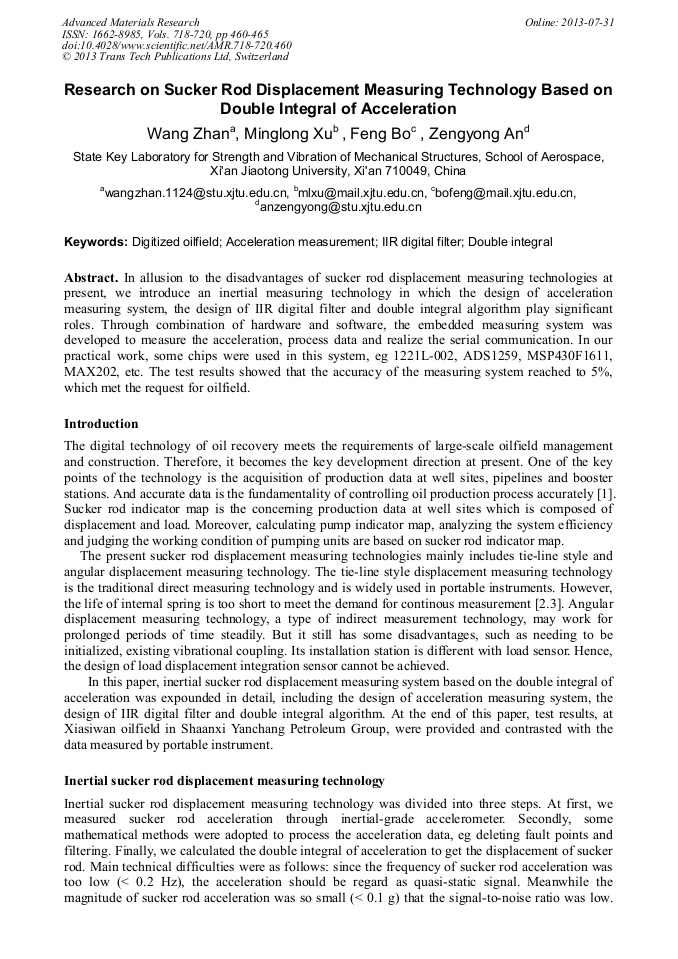

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 718-720)

Pages:

460-465

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.718-720.460

Citation:

Cite this paper

Online since:

July 2013

Authors:

Wang Zhan, Ming Long Xu, Bo Feng, Zeng Yong An

Keywords:

Acceleration Measurement, Digitized Oilfield, Double Integral, IIR Digital Filter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Huiseng ZHANG, Subin YAN, Yinjuan JIA, etc. The digital technology of oil recovery in Changqing oilfield [J]. Oil-Gasfield Surface Engineering (in Chinese) .2011.01:1-3.

Google Scholar

[2] FU Tao, Analysis on the wireless testing method for displacement of polished rod of the pumping unit [J]. Process Automation Instrumentation (in Chinese with English abstract). 2012.05:50-56.

Google Scholar

[3] Yunhua YU, Jiazhen ZHANG, Haitao SHI, etc. Research on dynamometer card displacement measuring technique based on accelerometer [J]. Electronic Engineering & Product World (in Chinese). 2009.09:25-30.

Google Scholar

[4] MUKHERJEE N, RAJSKI J, TYSZER J. Testing schemes for IIR filter structure [J].IEEE Transactions on Computers, 2001.50(7):674-688.

DOI: 10.1109/12.936234

Google Scholar

[5] Jixue XIAO, Guangyu CHEN, Yongle XIE. IIR filter test and design for testability [J]. China J. CAD & CG ( in Chinese with English abstract). 2007.19(2):203-209.

Google Scholar

[6] WANG Ji, HU Xiao. The application of MATLAB in vibration signal processing [M]. China Water Conservancy and Electricity Press (in Chinese). 2006:104-108.

Google Scholar

[7] S. Han, Measuring displacement signal with an accelerometer [J], Journal of Mechanical Science and Technology, 2010.24(6):1329-1335.

Google Scholar
