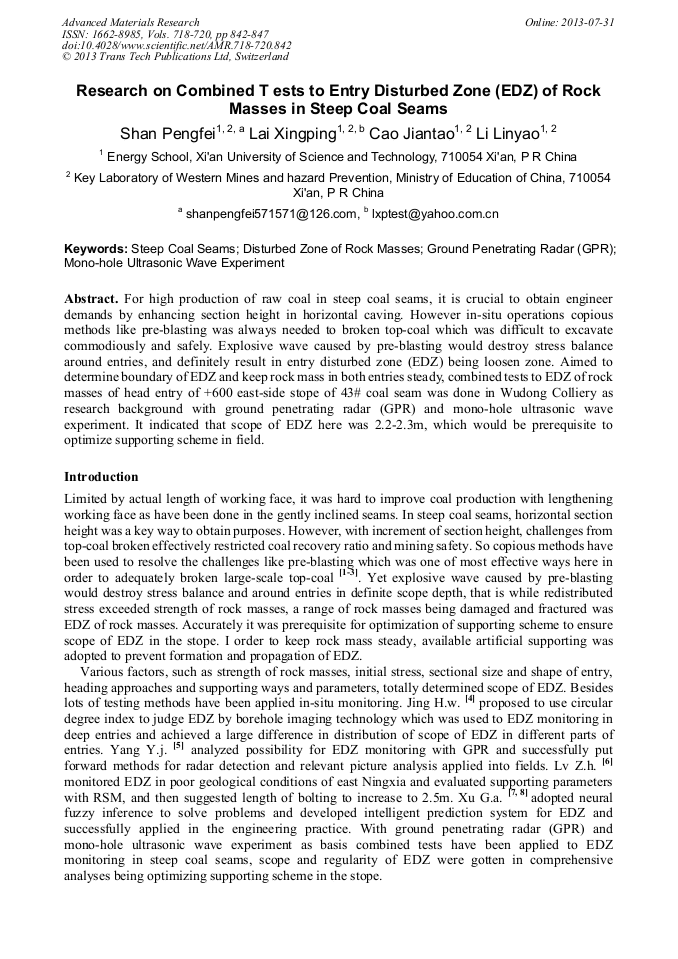

Research on Combined Tests to Entry Disturbed Zone (EDZ) of Rock Masses in Steep Coal Seams

Abstract:

For high production of raw coal in steep coal seams, it is crucial to obtain engineer demands by enhancing section height in horizontal caving. However in-situ operations copious methods like pre-blasting was always needed to broken top-coal which was difficult to excavate commodiously and safely. Explosive wave caused by pre-blasting would destroy stress balance around entries, and definitely result in entry disturbed zone (EDZ) being loosen zone. Aimed to determine boundary of EDZ and keep rock mass in both entries steady, combined tests to EDZ of rock masses of head entry of +600 east-side stope of 43# coal seam was done in Wudong Colliery as research background with ground penetrating radar (GPR) and mono-hole ultrasonic wave experiment. It indicated that scope of EDZ here was 2.2-2.3m, which would be prerequisite to optimize supporting scheme in field.

• Periodical: Advanced Materials Research (Volumes 718-720)
• Pages: 842-847
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.718-720.842
• Online since: July 2013
• Authors: Peng Fei Shan, Xing Ping Lai, Jian Tao Cao, Lin Yao Li
• Keywords: Disturbed Zone of Rock Masses, Ground Penetrating Radar (GPR), Mono-Hole Ultrasonic Wave Experiment, Steep Coal Seams

References

[1] Lai Xing-ping, Qi Tao, Jiang Donghui, et al, Comprehensive determination of dimension of segment pre-blasting of sub-level top-coal caving in steep seams, Journal of china coal society, 2011, 36(5) 718-721.

[2] Shi Pingwu, Lai Xingping, Damage mechanics model of top coal in steep top caving coal, Journal of science and technology. Beijing, 2003, 10(1) 012-015.

[3] Lai Xingping, Wang Ningbo, Xu Haidong, et al, Safety top-coal-caving of heavy and steep coal seams under complex environment, Journal of university of science and technology. Beijing, 2009, 31(3) 277-280.

[4] Jing Hongwen, Li Yuanhai, Liang Junqi, Yu Decheng, Borehole Camera Technology for Measuring the Relaxation Zone of Surrounding Rock: Mechanism and Application, Journal of China University of Mining & Technology, 2009, 38(5) 645-650.

[5] Yang Yongjie, Liu Chuanxiao, Jiang Jinquan, et al, Fractured Detection of Rock Zone in Mine Roadway with Ground Penetrating Radar and Its Application, Journal of Engineering Geology, 1997, 5(3) 276-281.

[6] Lv Zhaohai, Lai Xingping, The Sonic Wave Method for the Disturbeded Zone and Design of Coal Tunnel Support, Chinese Journal of Underground Space and Engineering, 2009, 5(2) 336-360.

[7] Shen Jie, Liang Wenxue, Test and measurement study on released ring in full seam gate way of island coal mining face, Coal Science and Technology, 2007, 35(6): 59-62.

[8] Xu Guoan, Jing Hongwen, Study on Intelligent Prediction of Broken Rock Zone Thickness of Coal Mine Roadways, Journal of China University of Mining & Technology, 2005, 34(2) 152-155.
