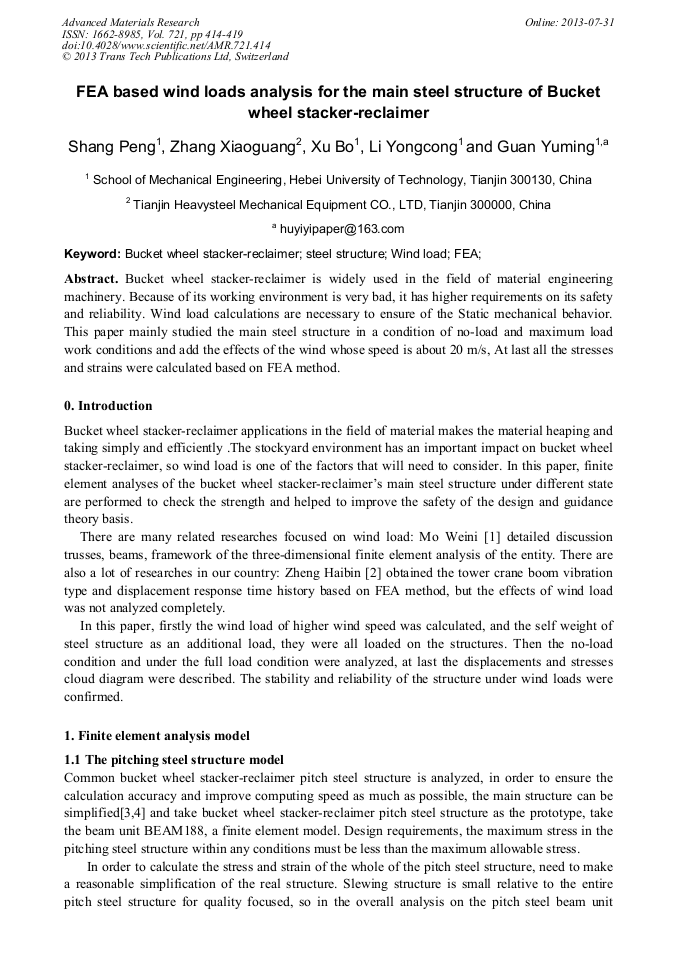

FEA Based Wind Loads Analysis for the Main Steel Structure of Bucket Wheel Stacker-Reclaimer

Abstract:

Bucket wheel stacker-reclaimer is widely used in the field of material engineering machinery. Because of its working environment is very bad, it has higher requirements on its safety and reliability. Wind load calculations are necessary to ensure of the Static mechanical behavior. This paper mainly studied the main steel structure in a condition of no-load and maximum load work conditions and add the effects of the wind whose speed is about 20 m/s, At last all the stresses and strains were calculated based on FEA method.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 414-419
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.414
• Online since: July 2013
• Authors: Peng Shang, Xiao Guang Zhang, Bo Xu, Yong Cong Li, Yu Ming Guan
• Keywords: Bucket Wheel Stacker-Reclaimer, Finite Element Analysis (FEA), Steel Structure, Wind Load

References

[1] Mo Weini. Finite Element Analysis-the ANSYS Theory and Applications (Second Edition) [M] Beijing: Electronic Industry Press, 2005.

[2] Zheng Haibin, Zhang Dake .Tower crane boom finite element modal and dynamic analysis [J]. Architectural mechanization, 2004,25 (5): 64-67.

[3] Zhang Chuanbin, Yang Bangcheng, Yao Ji. Signs rod under wind loads, finite element analysis of science and technology and engineering, 2011,11 (2): 11-14.

[4] He Junru, Jiang Wugui, Liu Zhiyun, Min Xuguang. Finite element analysis of the impact of wind load on the tower crane safety performance. Jinggangshan University (Natural Science) .2012, 18 (4): 33-36.

[5] GB 50009-2001, Building structures specification Beijing: China Building Industry Press, 2002.
