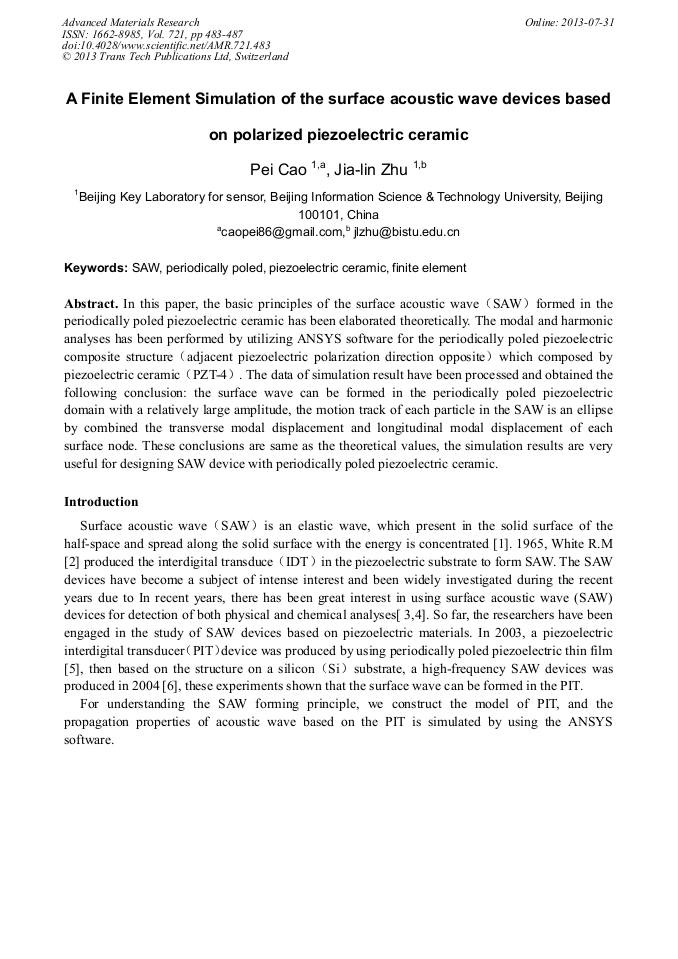

A Finite Element Simulation of the Surface Acoustic Wave Devices Based on Polarized Piezoelectric Ceramic

Abstract:

In this paper, the basic principles of the surface acoustic wave (SAW) formed in the periodically poled piezoelectric ceramic has been elaborated theoretically. The modal and harmonic analyses has been performed by utilizing ANSYS software for the periodically poled piezoelectric composite structure (adjacent piezoelectric polarization direction opposite) which composed by piezoelectric ceramic (PZT-4). The data of simulation result have been processed and obtained the following conclusion: the surface wave can be formed in the periodically poled piezoelectric domain with a relatively large amplitude, the motion track of each particle in the SAW is an ellipse by combined the transverse modal displacement and longitudinal modal displacement of each surface node. These conclusions are same as the theoretical values, the simulation results are very useful for designing SAW device with periodically poled piezoelectric ceramic.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 483-487
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.483
• Online since: July 2013
• Authors: Pei Cao, Jia Lin Zhu
• Keywords: Finite Element, Periodically Poled, Piezoelectric Ceramic (PZT), SAW

References

[1] Huangxin You Chunhua. Tripartite/tetragonal coexistence niobium antimony lead zirconate titanate piezoelectric ceramics polarization [J]. Chinese Ceramic Society, 2001.

[2] R.M. White, F.W. Voltmer. Direct Piezoelectric Coupling to Surface Elastic Waves [J]. Appl. Phys. Lett, 1965.

[3] D. S. Ballantine, S. J. Martin, A. J. Ricco, G. C. Frye, et al, Acoustic Wave Sensors – Theory Design and Physico-Chemical Application[M]. San Diego: Academic Press, 1997.

[4] Zhang Guo-wei, HAN Tao, Ji Xiao-jun, et al.Characteristics of Surface Aoustic Waves Propagating on LGS, LGT and LGN Substrates [J]. Journal of Shanghai Jiaotong University . 2004.

[5] S. Ballandras,W.Daniau,B.Gautier,D.Hauden, M.Wilm, V.Laude,V.Ruch, S.Flambart, A novel surface wave transducer based on periodically poled piezoelectric domain[P],Proceedings of the 2003 IEEE International Frequency Control Symposium and PDA Exhibition Jointly with the 17th European Frequency and Time Forum,2003.

DOI: 10.1109/freq.2003.1275208

[6] A.K. Sarin Kumar,P. Paruch,and J.-M. Triscone, L.Pellegrino and D.Marré, T. Tybell. High-frequency surface acoustic wave device based on thin-film piezoelectric interdigital transducers [J], Applied physics letters, 2004.

DOI: 10.1063/1.1787897
