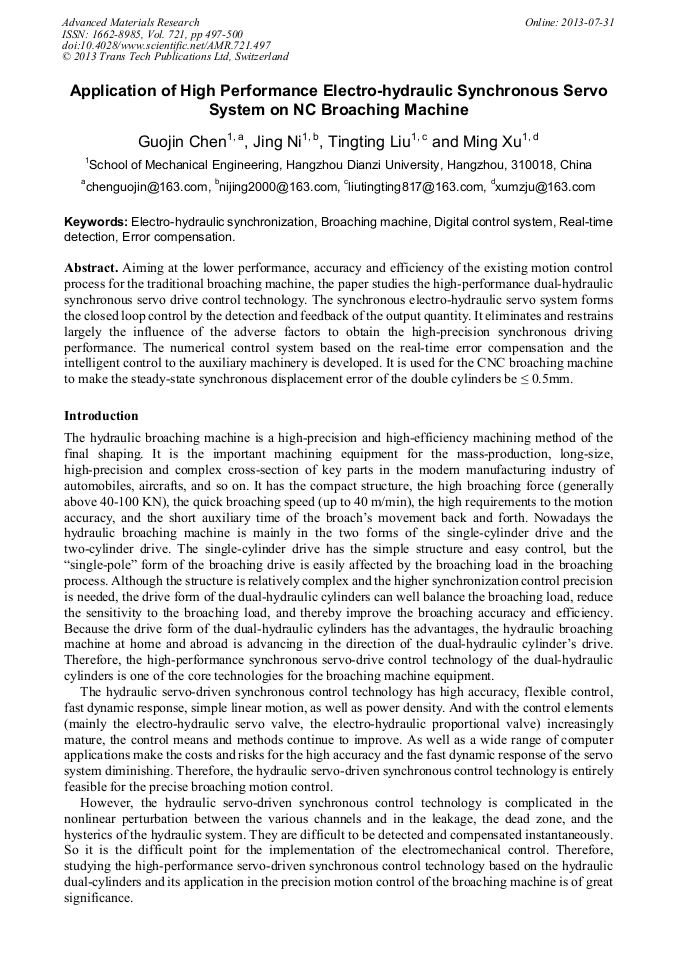

Application of High Performance Electro-Hydraulic Synchronous Servo System on NC Broaching Machine

Abstract:

Aiming at the lower performance, accuracy and efficiency of the existing motion control process for the traditional broaching machine, the paper studies the high-performance dual-hydraulic synchronous servo drive control technology. The synchronous electro-hydraulic servo system forms the closed loop control by the detection and feedback of the output quantity. It eliminates and restrains largely the influence of the adverse factors to obtain the high-precision synchronous driving performance. The numerical control system based on the real-time error compensation and the intelligent control to the auxiliary machinery is developed. It is used for the CNC broaching machine to make the steady-state synchronous displacement error of the double cylinders be ≤ 0.5mm.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 497-500
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.497
• Online since: July 2013
• Authors: Guo Jin Chen, Jing Ni, Ting Ting Liu, Ming Xu
• Keywords: Broaching Machine, Digital Control System, Electro-Hydraulic Synchronization, Error Compensation, Real-Time Detection

References

[1] ZHU Jie, CHEN Guo-jin, WANG Wan-qiang, "Applying FPGA on Frequency Convert System of SVPWM," Mechanical & Electrical Engineering Magazine, Vol. 22, No. 4, p.22–25, 2005.

[2] CHEN Guo-jin, YAO Zhai-rong, SUN Hong, "Realization of AC Motor Vector Control Based on DSP," Mechanical & Electrical Engineering Magazine, Vol. 21, No. 6, p.27–30, 2004.

[3] WANG Tao, CHEN Guo-jin, NI Jing, "Design and application of electric control system on pattern drawing machine," Journal of Mechanical & Electrical Engineering, Vol. 29, No. 4, p.413–416, 2012.

[4] LI Yong-ning, YANG Hua, CHEN Guo-jin, "Application of μC/OS-Ⅱ in digital welder control system," Journal of Mechanical & Electrical Engineering, Vol. 28, No. 7, p.827–830, 2011.

[5] CHEN Guo-jin, CHEN Hui-peng, CHEN Li-ping, "Research on multidisciplinary modeling and robust control for electric power steering system," Advanced Materials Research, Vol. 179-180, pp.179-185, 2011.

DOI: 10.4028/www.scientific.net/amr.179-180.179

[6] CHEN Guo-jin, DENG Kai-ping, GONG You-ping, "The Design and Simulation of Walking Hydraulic Transmission System of Loader HT25J," Mechanical Engineer, No. 6, p.46–49, 2012.
