The Design and Application of the Turnover Drum Tooling of PROTOS Cigarette Machine

Abstract:

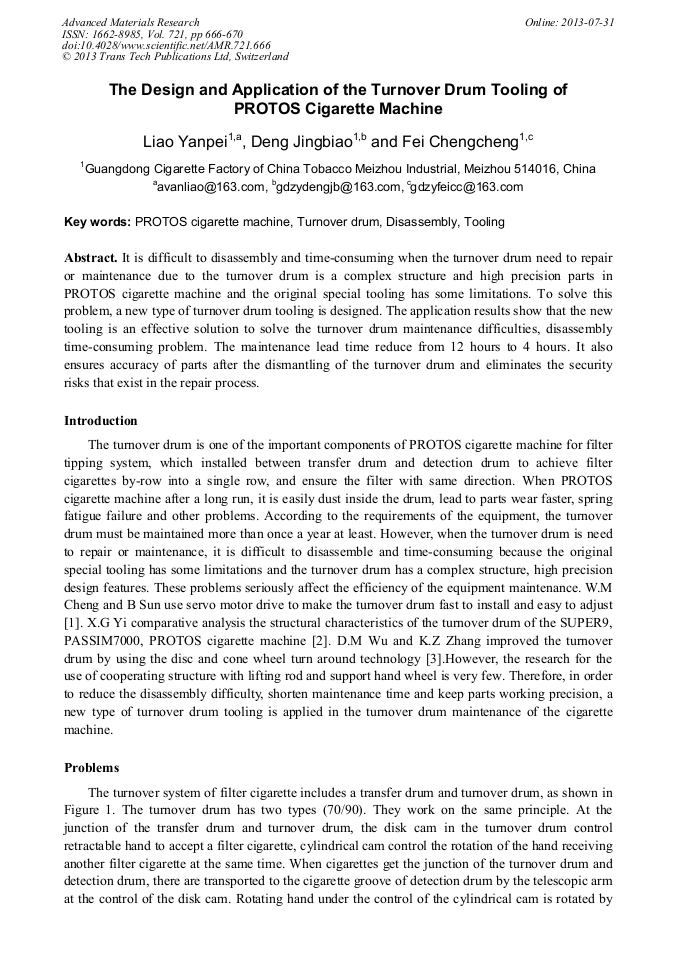

It is difficult to disassembly and time-consuming when the turnover drum need to repair or maintenance due to the turnover drum is a complex structure and high precision parts in PROTOS cigarette machine and the original special tooling has some limitations. To solve this problem, a new type of turnover drum tooling is designed. The application results show that the new tooling is an effective solution to solve the turnover drum maintenance difficulties, disassembly time-consuming problem. The maintenance lead time reduce from 12 hours to 4 hours. It also ensures accuracy of parts after the dismantling of the turnover drum and eliminates the security risks that exist in the repair process.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 666-670
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.666
• Online since: July 2013
• Authors: Yan Pei Liao, Jing Biao Deng, Cheng Cheng Fei
• Keywords: Disassembly, PROTOS Cigarette Machine, Tooling, Turnover Drum
