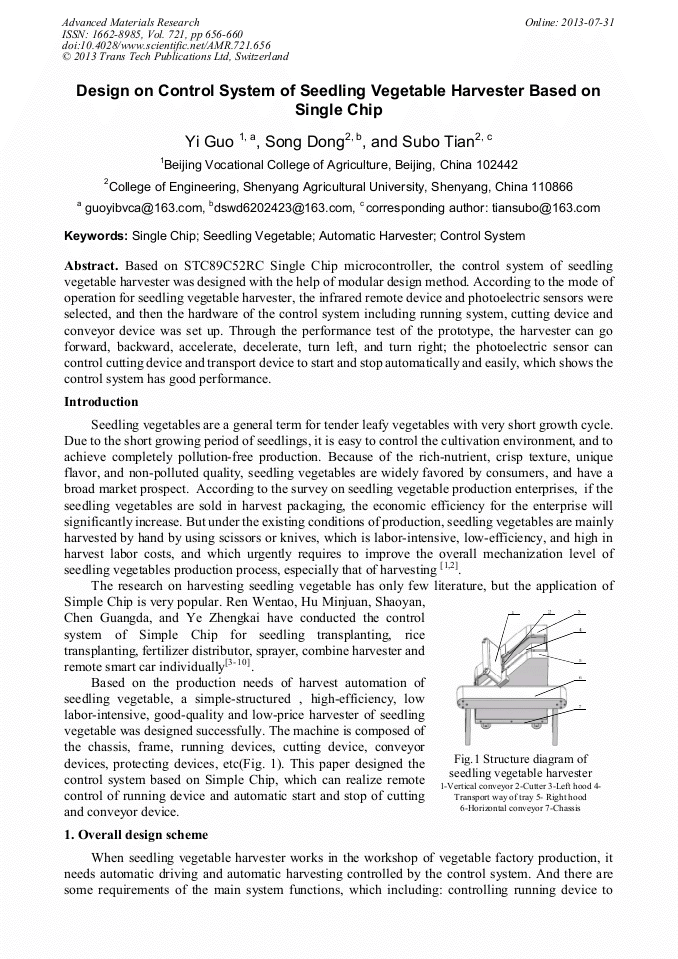

Design on Control System of Seedling Vegetable Harvester Based on Single Chip

Abstract:

Based on STC89C52RC Single Chip microcontroller, the control system of seedling vegetable harvester was designed with the help of modular design method. According to the mode of operation for seedling vegetable harvester, the infrared remote device and photoelectric sensors were selected, and then the hardware of the control system including running system, cutting device and conveyor device was set up. Through the performance test of the prototype, the harvester can go forward, backward, accelerate, decelerate, turn left, and turn right; the photoelectric sensor can control cutting device and transport device to start and stop automatically and easily, which shows the control system has good performance.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 656-660
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.656
• Online since: July 2013
• Authors: Yi Guo, Song Dong, Su Bo Tian
• Keywords: Automatic Harvester, Control System, Seedling Vegetable, Single Chip

References

[1] D.F. Huang. Research on Leafy Vegetables Production Mechanization Development and Countermeasures. Yangtze Vegetables, 2012 (2) :1-6

[2] J. Wen. The initial R & D and Design of the Lightweight Harvester for Green Leafy Vegetables. Agricultural Quality and Regulation, 2011 (11): 21,27

[3] M.J. Hu, C.Y. Wu, W.S. Yuan, C.Q. Jin. Research on the Automatic Pick up Device for Plug Seedling[J]. Agricultural Mechanization Research, 2012(11):76-78

[4] Y. Shao, D. P. Qian.STC89C52RC MCU Using in Control System of Transplanting Machine[J]. Agricultural Mechanization Research, 2012(5):121-124

[5] W. T. Ren, D. X.,J.B. Liu and et al. Design and Test on Remote Rice Transplanter Automatic Steering System, the transactions of the Chinese Society for agriculture machinery, 2012,43(1):175-179

[6] S.F. Chen, S.P. Zhang, X.Z. Sun. Design and experiment of self-propelled high-ground- clearance spreader for paddy variable-rate fertilization[J]. Transactions of the Chinese Society of Agricultural Engineering,2012,28(11):16-21

[7] X.L. Lei, R.C. Ma, A.L. Guan and et al. Design of the Self-control Plant Protection Spray Machine Chassis`s Control System[J].Chinese Agricultural Mechanization ,2011(5):71-75

[8] S.Z. Wang, C.Y. Wu, L. Shi and et al. Implementation of Combine Shelling Cylinder Monitoring System`s MODBUS Protocol Based on SPI[J]. Chinese Agricultural Mechanization , 2012(1):155-158

[9] G.D. Chen, K. Xia, S.R. Chen. The Design of Controlling System for Variable Rate Fertilizer Applicators Based on Microcontroller [J]. Agricultural Mechanization Research, 2012(4):106-109

[10] Z.K. Ye, J.H. Zhu, L. Li et al. Design and Realization of Intelligent Wireless Remote Control Car Based on SCM[J]. Computer and Modernization.2012,(10):65-67
