Impact of In Situ NH₃ Plasma Treatments on the Interface between HfLaO_x Thin Film and InP Substrate

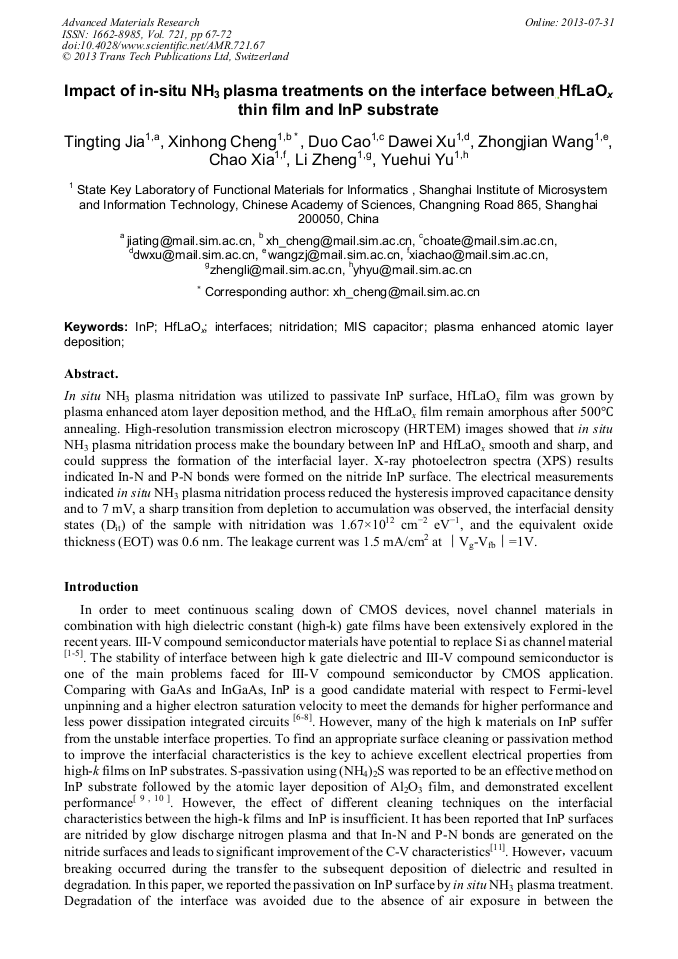

Abstract:

In situ NH₃ plasma nitridation was utilized to passivate InP surface, HfLaO_x film was grown by plasma enhanced atom layer deposition method, and the HfLaO_x film remain amorphous after 500°C annealing. High-resolution transmission electron microscopy (HRTEM) images showed that in situ NH₃ plasma nitridation process make the boundary between InP and HfLaO_x smooth and sharp, and could suppress the formation of the interfacial layer. X-ray photoelectron spectra (XPS) results indicated In-N and P-N bonds were formed on the nitride InP surface. The electrical measurements indicated in situ NH₃ plasma nitridation process reduced the hysteresis improved capacitance density and to 7 mV, a sharp transition from depletion to accumulation was observed, the interfacial density states (D_it) of the sample with nitridation was 1.67×10¹² cm² eV¹, and the equivalent oxide thickness (EOT) was 0.6 nm. The leakage current was 1.5 mA/cm² at V_g-V_fb=1V.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 67-72
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.67
• Online since: July 2013
• Authors: Ting Ting Jia, Xin Hong Cheng, Duo Cao, Da Wei Xu, Zhong Jian Wang, Chao Xia, Li Zheng, Yue Hui Yu
• Keywords: InP, Interface, MIS Capacitor, Nanorod, Nitridation, Plasma Enhanced Atomic Layer Deposition
