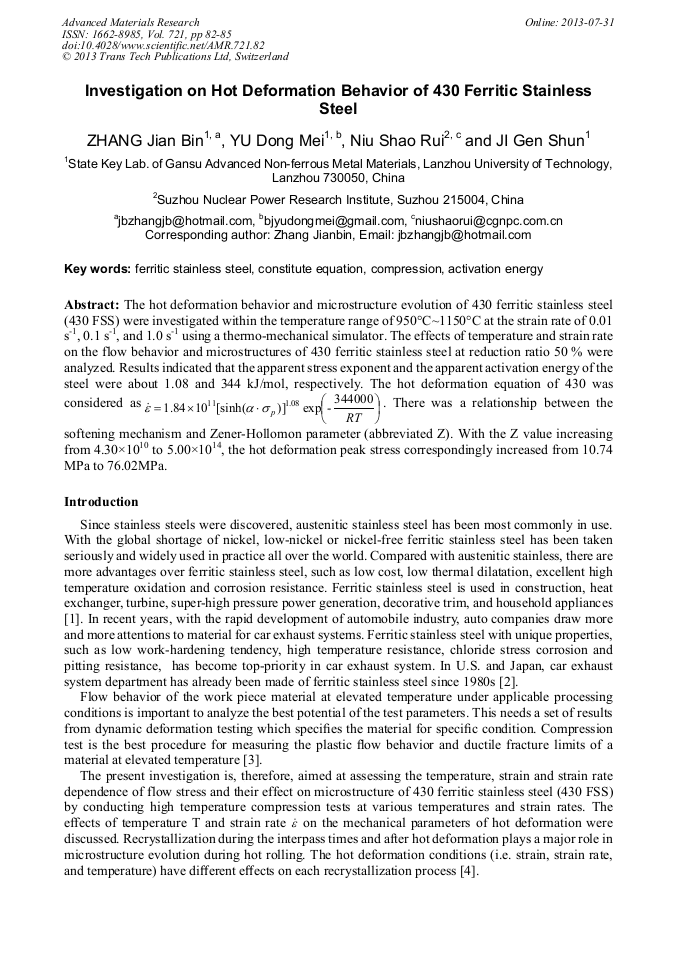

Investigation on Hot Deformation Behavior of 430 Ferritic Stainless Steel

Abstract:

The hot deformation behavior and microstructure evolution of 430 ferritic stainless steel (430 FSS) were investigated within the temperature range of 950°C~1150°C at the strain rate of 0.01 s^-1, 0.1 s^-1, and 1.0 s^-1 using a thermo-mechanical simulator. The effects of temperature and strain rate on the flow behavior and microstructures of 430 ferritic stainless steel at reduction ratio 50 % were analyzed. Results indicated that the apparent stress exponent and the apparent activation energy of the steel were about 1.08 and 344 kJ/mol, respectively. The hot deformation equation of 430 was considered as. There was a relationship between the softening mechanism and Zener-Hollomon parameter (abbreviated Z). With the Z value increasing from 4.30×10¹⁰ to 5.00×10¹⁴, the hot deformation peak stress correspondingly increased from 10.74 MPa to 76.02MPa.

• Periodical: Advanced Materials Research (Volume 721)
• Pages: 82-85
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.721.82
• Online since: July 2013
• Authors: Jian Bin Zhang, Dong Mei Yu, Shao Rui Niu, Gen Shun Ji
• Keywords: Activation Energy, Compression, Constitute Equation, Ferritic Stainless Steel (FSS)

References

[1] Sadao Ota. Ferritic grades heat-resistant steel [M]. 2003, Beijing: Metallurgical Industry Press, 3-15.

[2] Li Qing. Materials for exhaust system [J]. World automobile, 1997(11): 8-11.

[3] Amit Kumar Maheshwari, K.K. Pathak, N. Ramakrishnan, S. P. Narayan. Modified Johnson–Cook material flow model for hot deformation processing [J]. Materials Science, 2010, 45(4): 859-864.

DOI: 10.1007/s10853-009-4010-x

[4] Dehghan-Manshadi, M.R. Barnett, P.D. Hodgson. Hot Deformation and Recrystallization of Austenitic Stainless Steel: Part II. Post-deformation Recrystallization [J]. Metallurgical and Materials Transactions A, 2008, 39(6):1371-1381.

DOI: 10.1007/s11661-008-9513-6

[5] Balancin, W.A.M. Hoffmann, J.J. Jonas. Influence of Microstructure on the Flow Behavior of Duplex Stainless Steel at High Temperatures [J]. Metallurgical and Materials Transactions A, 2000, 31, 1353-1363.

DOI: 10.1007/s11661-000-0254-4

[6] Kocks U F, Meking H A. Mechanism for static and dynamic recovery strength of metals and alloys [M]. England: Pergamon Press, 1985, 345.

[7] Srinivasan N, Prasad Y V R K. Hot working characteristics of nimonic 75, 80A and 90 superalloys: a comparison using processing maps [J]. Journal of Materials Processing Technology, 1995, 51(4): 171–192.

DOI: 10.1016/0924-0136(94)01602-w

[8] Wu Laizhi, Chen Jun, Zhang Hongbing. Dynamic recrystallization of austenite and grain refinement [J]. Shanghai Jiaotong University, 2008, 42(5): 786-790.
