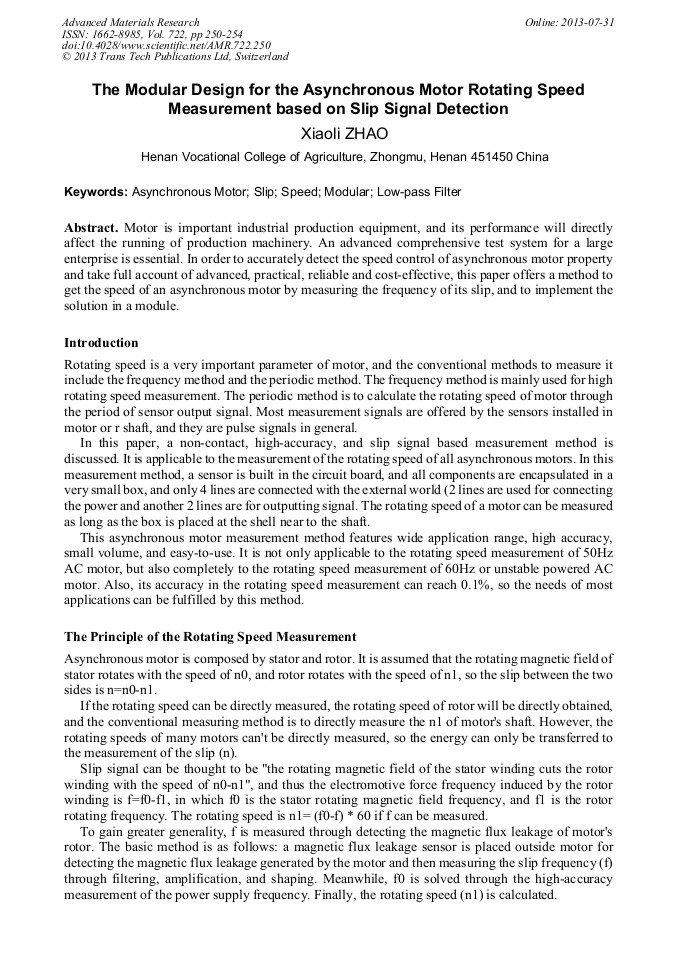

The Modular Design for the Asynchronous Motor Rotating Speed Measurement Based on Slip Signal Detection

Abstract:

Motor is important industrial production equipment, and its performance will directly affect the running of production machinery. An advanced comprehensive test system for a large enterprise is essential. In order to accurately detect the speed control of asynchronous motor property and take full account of advanced, practical, reliable and cost-effective, this paper offers a method to get the speed of an asynchronous motor by measuring the frequency of its slip, and to implement the solution in a module.

• Periodical: Advanced Materials Research (Volume 722)
• Pages: 250-254
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.722.250
• Online since: July 2013
• Authors: Xiao Li Zhao
• Keywords: Asynchronous Motor, Low-Pass Filter, Modular, Slip, Speed

References

[1] Wenke LU. Study for Measuring the Parameters of Asynchronous Motor by Leakage-magnetic Field. Journal of Test and Measurement Technology, 1993, Vol.12, (02): page 89-95.

[2] Hanping ZENG, Denghong LI. Study on the Way of Measurement for the Diving Asynchronous Motor Speed with High Accuracy. Journal of Anhui Technical College of Water Resources and Hydroelectric Power, 2008, Vol.8, (03): page 78-79.

[3] Huanlin Liu, Yong Chen. Design Optimization and Simulating Analysis of Low Pass Filter based on Pspice. Control & Automation, 2007, (10): page 3, page 268-269.

[4] Microchip Technology Inc., PIC12F683 Datasheet, 2010, March.
