Hydrothermal Synthesis of Superfine Mg(OH)₂ Crystal

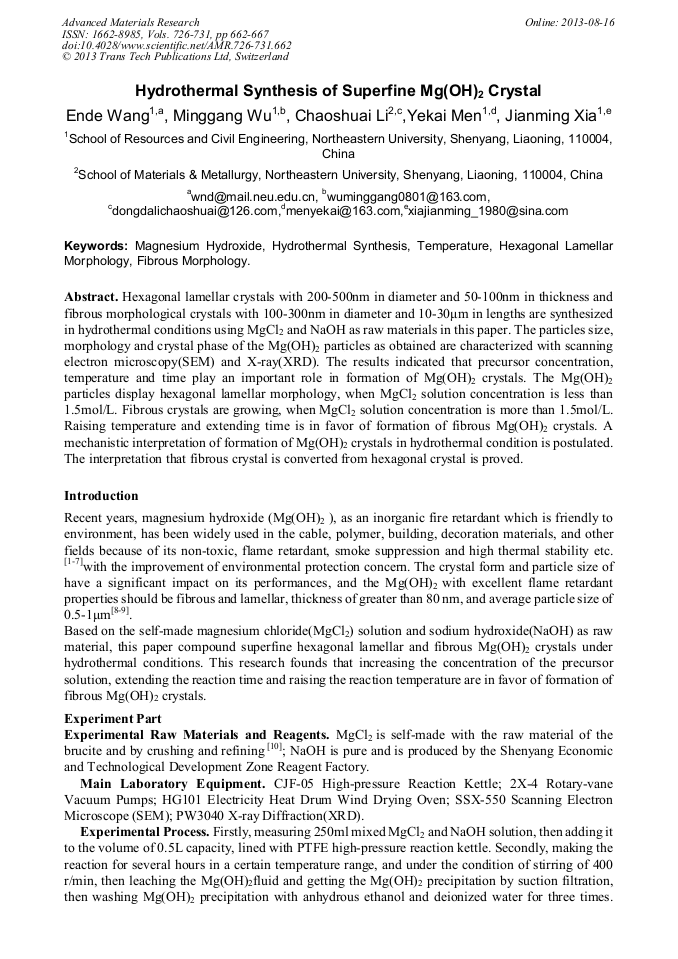

Abstract:

Hexagonal lamellar crystals with 200-500nm in diameter and 50-100nm in thickness and fibrous morphological crystals with 100-300nm in diameter and 10-30μm in lengths are synthesized in hydrothermal conditions using MgCl₂ and NaOH as raw materials in this paper. The particles size, morphology and crystal phase of the Mg (OH)₂ particles as obtained are characterized with scanning electron microscopy (SEM) and X-ray (XRD). The results indicated that precursor concentration, temperature and time play an important role in formation of Mg (OH)₂ crystals. The Mg (OH)₂ particles display hexagonal lamellar morphology, when MgCl₂ solution concentration is less than 1.5mol/L. Fibrous crystals are growing, when MgCl₂ solution concentration is more than 1.5mol/L. Raising temperature and extending time is in favor of formation of fibrous Mg (OH)₂ crystals. A mechanistic interpretation of formation of Mg (OH)₂ crystals in hydrothermal condition is postulated. The interpretation that fibrous crystal is converted from hexagonal crystal is proved.

• Periodical: Advanced Materials Research (Volumes 726-731)
• Pages: 662-667
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.726-731.662
• Online since: August 2013
• Authors: En De Wang*, Ming Gang Wu, Chao Shuai Li, Ye Kai Men, Jian Ming Xia
• Keywords: Fibrous Morphology, Hexagonal Lamellar Morphology, Hydrothermal Synthesis, Magnesium Hydroxide, Temperature

References

[1] H Y Qian, M Deng, S M Zhang, et al. Synthesis of superfine Mg(OH)2 particles by magnesite[J]. Materials Science and Engineering A, 2007, 445:600-603.

DOI: 10.1016/j.msea.2006.09.079

[2] Y Quan. Magnesia Material Production and Application[M]. Beijing: Metallurgical Industry Press, 2008,43-47.

[3] Y Ding, G T Zhang, H Wu, et al. Nanoscale Magnesium hydroxide and magnesium oxide powder: control over size, shape, and structure via hydrothermal synthesis[J]. Chemistry of marerials, 2001,13(2):435-440.

DOI: 10.1021/cm000607e

[4] D F Xue, X X Yan, L Wang. Production of specific Mg(OH)2 granules by modifying crystallization conditions[J], Powder Technology, 2009,191:98 -106.

DOI: 10.1016/j.powtec.2008.09.012

[5] X J Zhang, B B Wang, X F Wu. The Progress of The Application of Magnesium Hydroxide Flame Retardant[J]. China Powder Industry, 2008, 5: 16-18.

[6] Huppi U, Mattila J, Korhonen M, et al. Compatibilization of polyethylene/aluminum hydroxide (PE/ATH) and polyethylene/magnesium hydroxide (PE/MH) composites with functionalized polyethylenes[J]. Polymer, 2003, 44(4): 1193-1201.

DOI: 10.1016/s0032-3861(02)00856-x

[7] Y Z Jiang, Y X Han, W Z Yin, et al. Preparation of Magnesium Hydroxide from Magnesite[J]. Journal of Northeastern University(Natural Science),2006, 27(6): 694-697.

[8] Durin-France A, Ferry L, Cuesta JML, et al. Magnesium hydroxide/zinc borate/talc compositions as flame-retardants in EVA copolymer[J]. Polymer International,2000,49(10):1101-1105.

DOI: 10.1002/1097-0126(200010)49:10<1101::aid-pi523>3.0.co;2-5

[9] Q L Ren, B Liu, S T Chen. Mechanism of Forming Mg(OH)2 with Acicular or Fibrous Crystallizing Morphology under Hydrothermal Conditions[J]. Rare Metal Materials and Engneering,2004,33(1):47-50.

[10] Y X Niu, E D Wang, X F Xi, et al. Synthesis of Superfine Mg(OH)2 Particles by Using Hydrothermal Treatment Method[J].  Acta Mineralogica Sinica, 2010, (02): 242-247.

[11] L LIN, J M Chen, Y H Song. Effect of Mineralizer on Mg(OH)2[J]. Chinese Journal of Inorganic Chemistry, 2008, 24(4): 665-669.

[12] X T Sun, L Xiang, W C Zhu, et al. Influence of Solvents on the hydrothermal formation of one-dimensional magnesium hydroxide[J],Crystal Research and Technology, 2008, 43(10): 1057-1061.

DOI: 10.1002/crat.200800069
