Preparation and Characterization of KGM/PVA Composite Nanofibrous Membranes

Abstract:

A composite membrane of KGM/PVA was prepared by electrospinning process. KGM and PVA were dissolved in water and acetic acid (volum:6/4) with different concentration and the resulting blend sol was electrospun into the composite nanofibrous membranes. The influence of technical parameters on morphology and diameter of nanofibers was investigated by Scanning Electron Microscope (SEM). The results show that the concentration of KGM/PVA blend sol affects significantly on the fiber diameter and the morphology of composite membranes, and the increase of the voltage results in the decrease of the fiber diameter. The composite nanofibrous membranes with the average fiber diameter ranging from 87.5nm to 165.6nm were fabricated by electrospinning at the following conditions: 10% (w/v) of the concentration of KGM/PVA blend sol (weight ratio of KGM to PVA=4/6), 25KV of electric voltage, 0.0025mm s-1 of the feeding rate, 45°C of the electrospinning temperature and 16cm of receiving distance.

You might also be interested in these eBooks

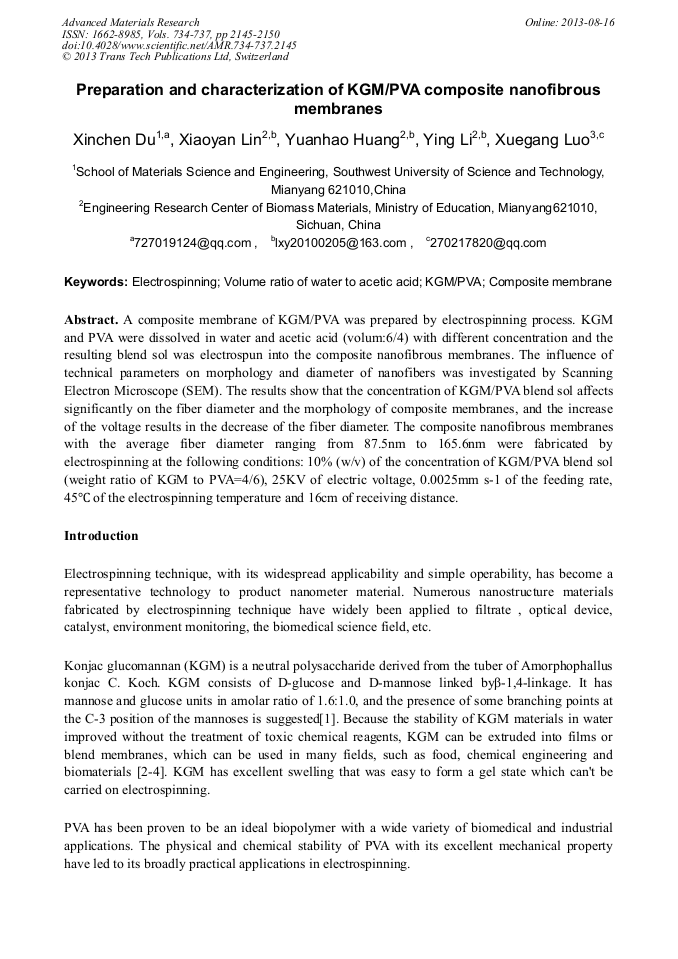

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 734-737)

Pages:

2145-2150

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.734-737.2145

Citation:

Cite this paper

Online since:

August 2013

Authors:

Xin Chen Du*, Xiao Yan Lin, Yuan Hao Huang, Ying Li, Xue Gang Luo

Keywords:

Composite Membrane, Electro-Spinning, KGM/PVA, Volume Ratio of Water to Acetic Acid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Katsuraya K，Okuyama K，Hatanaka K，et al．Constitution of konjac :chemical analysis and 13C NMR spectroscopy［J］.Carbohyd Polym，2003， 53( 2) : 183 － 189．

DOI: 10.1016/s0144-8617(03)00039-0

Google Scholar

[2] Penroj P，Mitchell J R，Hill S E，et al．Effect of konjac glucomannan deacetylation on the properties of gels formed from mixtures of kappa carrageenan and konjac glucoman［J］. Carbohyd Polym，2005，59( 3) : 367 － 376．

DOI: 10.1016/j.carbpol.2004.10.007

Google Scholar

[3] Zhang Y Q，Xie B J，Gan X . Advance in applications of konjac glucomannan and its derivatives［J．Carbohyd Polym , 2005，60( 1) : 27 － 31．

Google Scholar

[4] Tian D T，Hu W B，Zhen Z，et al．Study on in － situ synthesis of konjac glucomannan silver nanocomposites via photochemical reduction［J］. J Appl Polym Sci，2006， 100( 2) : 1323 － 1327．

DOI: 10.1002/app.23314

Google Scholar
