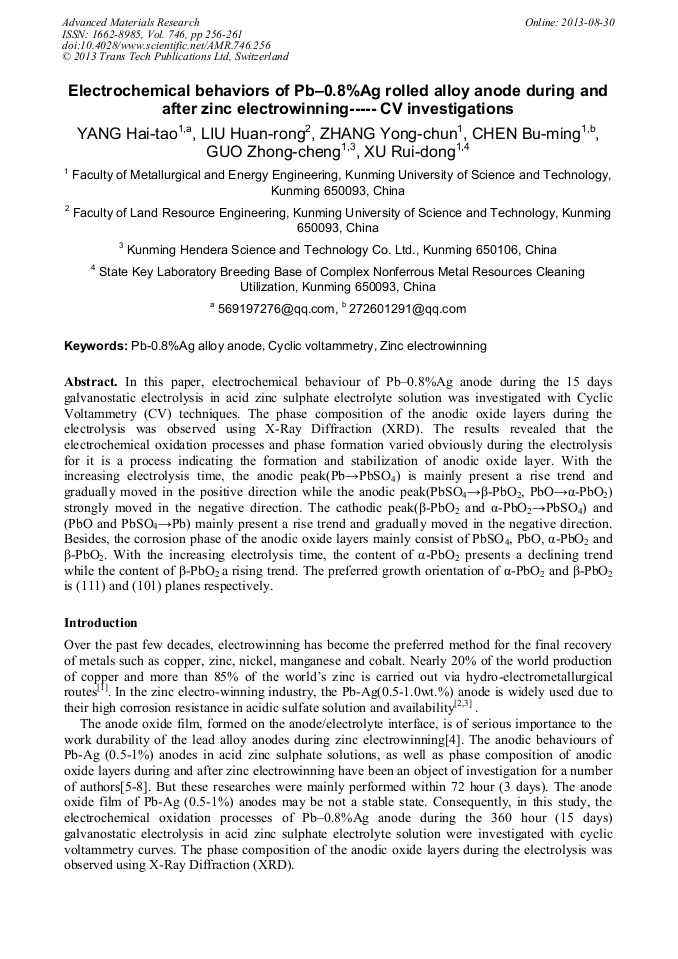

Electrochemical Behaviors of Pb-0.8%Ag Rolled Alloy Anode during and after Zinc Electrowinning - CV Investigations

Abstract:

In this paper, electrochemical behaviour of Pb0.8%Ag anode during the 15 days galvanostatic electrolysis in acid zinc sulphate electrolyte solution was investigated with Cyclic Voltammetry (CV) techniques. The phase composition of the anodic oxide layers during the electrolysis was observed using X-Ray Diffraction (XRD). The results revealed that the electrochemical oxidation processes and phase formation varied obviously during the electrolysis for it is a process indicating the formation and stabilization of anodic oxide layer. With the increasing electrolysis time, the anodic peak (PbPbSO₄) is mainly present a rise trend and gradually moved in the positive direction while the anodic peak (PbSO₄β-PbO₂, PbOα-PbO₂) strongly moved in the negative direction. The cathodic peak (β-PbO₂ and α-PbO₂PbSO₄) and (PbO and PbSO₄Pb) mainly present a rise trend and gradually moved in the negative direction. Besides, the corrosion phase of the anodic oxide layers mainly consist of PbSO₄, PbO, α-PbO₂ and β-PbO₂. With the increasing electrolysis time, the content of α-PbO₂ presents a declining trend while the content of β-PbO₂ a rising trend. The preferred growth orientation of α-PbO₂ and β-PbO₂ is (111) and (101) planes respectively.

• Periodical: Advanced Materials Research (Volume 746)
• Pages: 256-261
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.746.256
• Online since: August 2013
• Authors: Hai Tao Yang, Huan Rong Liu, Yong Chun Zhang, Bu Ming Chen, Zhong Cheng Guo, Rui Dong Xu
• Keywords: Cyclic Voltammetry (CV), Pb-0.8%Ag Alloy Anode, Zinc Electrowinning

References

[1] V. Tjandrawan, PhD thesis, the role of manganese in the electrowinning of copper and xinc, Murdoch University, (2010).

[2] M. Petrova， Z. Noncheva， Ts. Dobrev, St. Rashkov， N. Kounchev， D. Petrov， St. Vlaev， V. Mihnev， S. Zarev， L. Georgieva， D. Buttinelli， Investigation of the processes of obtaining plastic treatment and electrochemical behaviour of lead alloys in their capacity as anodes during the electro-extraction of zinc. I. Behaviour of Pb-Ag, Pb-Ca and Pb-Ag-Ca alloys, Hydrometallurgy, 40 (1996).

DOI: 10.1016/0304-386x(95)00009-6

[3] A. Felder, R. D. Prengaman, Lead Alloys for Permanent Anodes in the Nonferrous Metals Industry, JOM, 6 (2006) 28-31.

DOI: 10.1007/s11837-006-0197-3

[4] T. Dobrev, I. Valchanova, Y. Stefanov and S. Magaeva, Investigations of new anodic materials for zinc electrowinning, Transactions of the Institute of Metal Finishing, 87(2009) 136-140.

DOI: 10.1179/174591909x438938

[5] Y.Q. Lai, Y. Li, L.X. Jiang, W. X, X.J. Lv, J. Li, Y.X. Liu, Electrochemical behaviors of co-deposited Pb/Pb–MnO2 composite anode in sulfuric acid solution – Tafel and EIS investigations, Journal of Electroanalytical Chemistry, 671(2012) 16-23.

DOI: 10.1016/j.jelechem.2012.02.011

[6] Y. Li, L.X. Jiang, X.J. Lv, Y.Q. Lai, H.L. Zhang, J. Li, Y.X. Liu, Oxygen evolution and corrosion behaviors of co-deposited Pb/Pb-MnO2 composite anode for electrowinning of nonferrous metals, Hydrometallurgy, 109 (2011) 252-257.

DOI: 10.1016/j.hydromet.2011.08.001

[7] S.T. Rashkov, Y. Stefanov, Z. Noncheva, M. Petrova, T.S. Dobrev, N. Kunchev, D. Petrov, S.T. Vlaev, V. Mihnev, S. Zarev, L. Georgieva, D. Buttinelli, Investigation of the processes of obtaining plastictreatment and electrochemical behaviour of leadalloys in their capacity as anodes during the electro-extraction of zinc. II. Electrochemical formation of phase layers onbinary Pb-Ag and Pb-Ca, and ternary Pb-Ag-Caalloys in a sulphuric-acid electrolyte for zinc electro-extraction, Hydrometallurgy, 40 (1996).

DOI: 10.1016/0304-386x(95)00010-e

[8] W. Zhang, G. Houlachi, Electrochemical studies of the performance of different Pb–Ag anodes during and after zinc electrowinning, Hydrometallurgy, 104 (2010) 129.

DOI: 10.1016/j.hydromet.2010.05.007

[9] Y. Yamamoto, K. Fumino, T. Ueda, M. Nambu, A potentiodynamic study of the lead electrode in sulphuric acid solution, Electrochimica Acta, 37(1992)199-203.

DOI: 10.1016/0013-4686(92)85003-4
