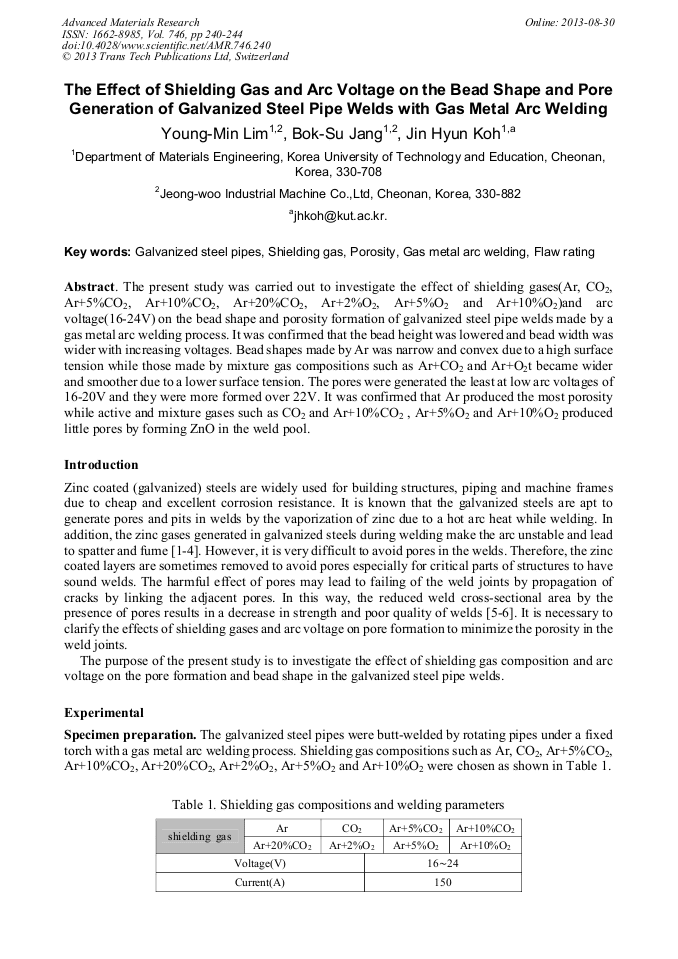

The Effect of Shielding Gas and Arc Voltage on the Bead Shape and Pore Generation of Galvanized Steel Pipe Welds with Gas Metal Arc Welding

Abstract:

The present study was carried out to investigate the effect of shielding gases (Ar, CO₂, Ar+5%CO₂, Ar+10%CO₂, Ar+20%CO₂, Ar+2%O₂, Ar+5%O₂ and Ar+10%O₂) and arc voltage (16-24V) on the bead shape and porosity formation of galvanized steel pipe welds made by a gas metal arc welding process. It was confirmed that the bead height was lowered and bead width was wider with increasing voltages. Bead shapes made by Ar was narrow and convex due to a high surface tension while those made by mixture gas compositions such as Ar+CO₂ and Ar+O₂t became wider and smoother due to a lower surface tension. The pores were generated the least at low arc voltages of 16-20V and they were more formed over 22V. It was confirmed that Ar produced the most porosity while active and mixture gases such as CO₂ and Ar+10%CO₂ , Ar+5%O₂ and Ar+10%O₂ produced little pores by forming ZnO in the weld pool.

• Periodical: Advanced Materials Research (Volume 746)
• Pages: 240-244
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.746.240
• Online since: August 2013
• Authors: Young Min Lim, Bok Su Jang, Jin Hyun Koh
• Keywords: Flaw Rating, Galvanized Steel Pipes, Gas Metal Arc Welding, Porosity, Shielding Gas

References

[1] H. Matsui, S. Shionoya : Reduction of Blowholes by the Vibration to Molten Pools in Arc Welding of Galvanized Carbon Steel Sheets, Journal of the Japan Welding Society. 16-1(1998), 45-50.

DOI: 10.2207/qjjws.16.45

[2] K. Yasuda, S. . Nakano, T. Yamaguchi, T. Komatsu and T. Nakajima : Avoidance of Blowhole in Arc Welding of Galvanized Steel sheets, The 5th International Symposium of the Japan Welding Society, April, Tokyo(1990), 785-790.

[3] H. Matsui, H. Suzuki : Reduction of Blowholes in High Speed Arc Welding of Hot-Dipping Galvanized Steel Sheet, Journal of Japan Welding Society, 15-3(1973) 476-483.

DOI: 10.2207/qjjws.15.476

[4] K. Yasuda, S. Nakano and T. Nakajima : Avoidance of Blowhole in Arc Welding of Galvanized Steel Sheets, The 5th International Symposium of the Japan Welding Society, 1990, 785-790.

[5] H. S. Jeong : Fundamental of Fusion Welding, Journal of Korea Welding Joining Society, 19-2(2001), 1-4. (in Korean).

[6] J. B. Lee, Y. H. An and H. S. Park : CO2 Weldability of Zn Coated Steel Sheet(1), Journal of Korea Welding Joining Society, 18-1(2000), 91-96(in Korean).

[7] J. B. Lee, Y. H. An and H. S. Park : CO2 Weldability of Zn Coated Steel Sheet(2), Journal of Korea Welding Joining Society, 18-2(2000), 64-67(in Korean).

[8] S. M. Cho, K. J. Kim and B. W. Lee : The Waveform Control and Blowhole Generation in the Wave Pulse MIG Welding for the Galvanized Steel Sheets, Journal of Korea Welding Joining Society, 23-1(2005), 69-76(in Korean).

[9] K. D. Kyung, H. J. Chon, J. H. Lee, B. Y. Kang and H. J. Kim : Effect of Shielding Gas Composition on Arc Stability and Transfer Mode of High Deposition GMA Welding, Journal of Korea Welding Joining Society, 15-1(1997) 64-70(in Korean).

[10] M. Kamada, Y. Kanabe, T. Suzuki and S. Maki : Flux Cored Electrode For Zinc Primer-Painted Steel Plate, Welding Journal, 72-3(1993), 49-54.
