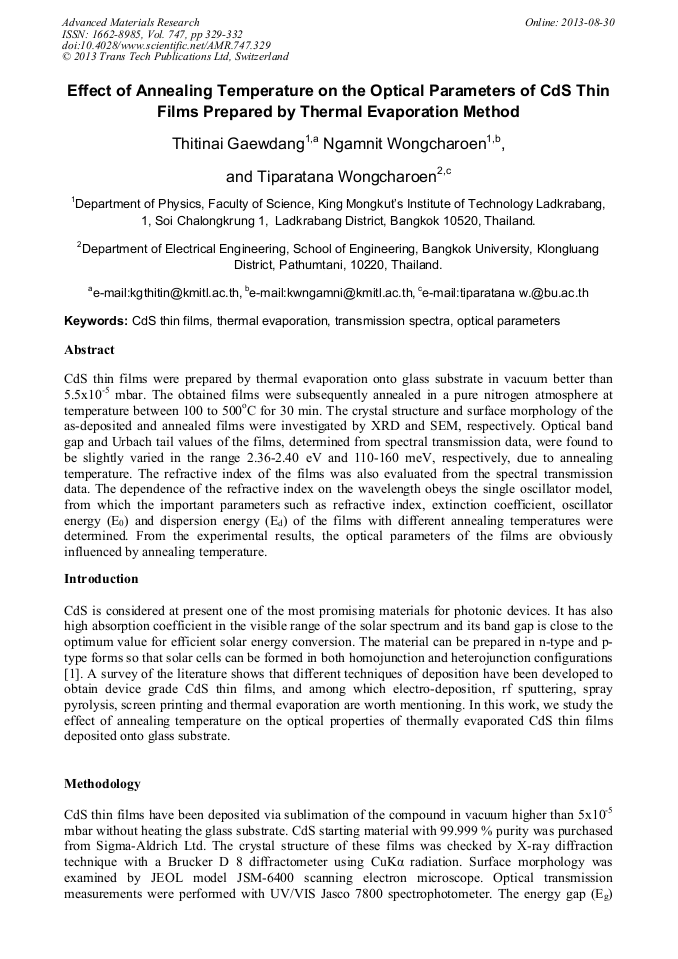

Effect of Annealing Temperature on the Optical Parameters of CdS Thin Films Prepared by Thermal Evaporation Method

Abstract:

CdS thin films were prepared by thermal evaporation onto glass substrate in vacuum better than 5.5x10^-5 mbar. The obtained films were subsequently annealed in a pure nitrogen atmosphere at temperature between 100 to 500°C for 30 min. The crystal structure and surface morphology of the as-deposited and annealed films were investigated by XRD and SEM, respectively. Optical band gap and Urbach tail values of the films, determined from spectral transmission data, were found to be slightly varied in the range 2.36-2.40 eV and 110-160 meV, respectively, due to annealing temperature. The refractive index of the films was also evaluated from the spectral transmission data. The dependence of the refractive index on the wavelength obeys the single oscillator model, from which the important parameters such as refractive index, extinction coefficient, oscillator energy (E₀) and dispersion energy (E_d) of the films with different annealing temperatures were determined. From the experimental results, the optical parameters of the films are obviously influenced by annealing temperature.

You might also be interested in these eBooks

Solar Cells: Research and Development of Solar Cells

View Preview

Multi-Functional Materials and Structures IV

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 747)

Pages:

329-332

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.747.329

Citation:

Cite this paper

Online since:

August 2013

Authors:

Thitinai Gaewdang, Ngamnit Wongcharoen, Tiparatana Wongcharoen

Keywords:

CdS Thin Films, Optical Parameters, Thermal Evaporation, Transmission Spectra

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. Kashiwaba, K. Isojima and K. Ohta, Improvement in the Efficiencies of Cu-Doped CdS/ Non Doped CdS Photovoltaic Cells Fabricated by an All-Vacuum Process, Sol. Energy Mater. Sol. Cells 75 (2003) 253-259.

DOI: 10.1016/s0927-0248(02)00167-8

Google Scholar

[2] E.G.T. Birgin, I. Chambouleyron and J.M. Martínez, Estimation of the Optical Constants and the Thickness of Thin Films Using Unconstrained Optimization, J. Comp. Phys. 151 (1999) 862-880.

DOI: 10.1006/jcph.1999.6224

Google Scholar

[3] M.A. Rafea, A.A.M. Farag and N. Roushdy, Structural and Optical Characteristics of Nano-Sized Structure of Zn0. 5Cd0. 5S Thin Films Prepared by Dip-Coating Methods, J. Alloys Comp. 485 (2009) 660-666.

DOI: 10.1016/j.jallcom.2009.06.048

Google Scholar

[4] R. Swanepoel, Determination of the Thickness and Optical Constant of Amorphous Silicon, Phys. E: Instrum. 16 (1983) 1214-1222.

DOI: 10.1088/0022-3735/16/12/023

Google Scholar
