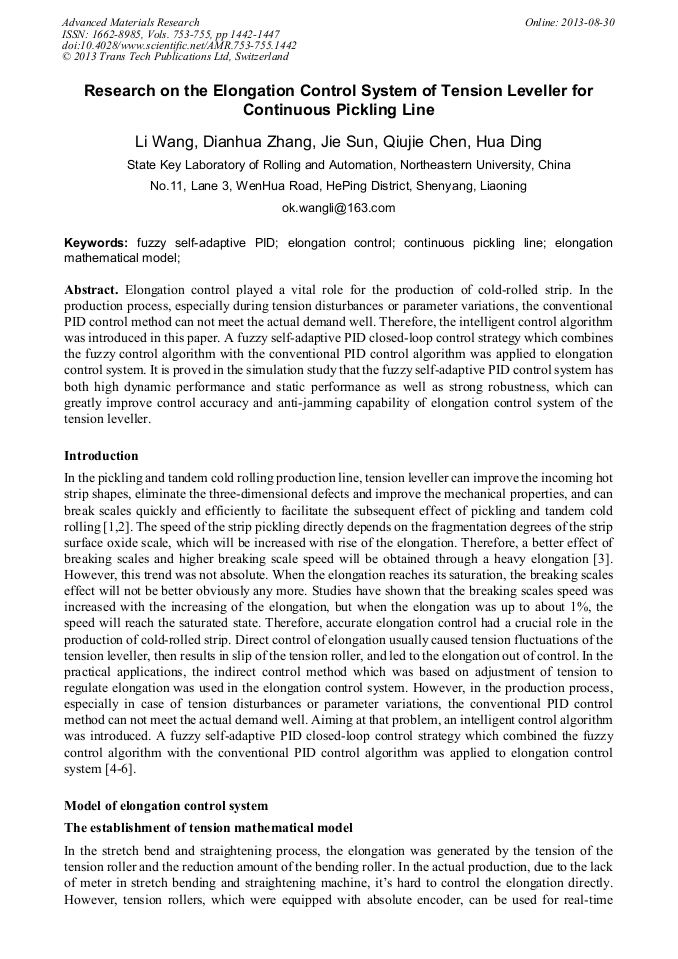

Research on the Elongation Control System of Tension Leveller for Continuous Pickling Line

Abstract:

Elongation control played a vital role for the production of cold-rolled strip. In the production process, especially during tension disturbances or parameter variations, the conventional PID control method can not meet the actual demand well. Therefore, the intelligent control algorithm was introduced in this paper. A fuzzy self-adaptive PID closed-loop control strategy which combines the fuzzy control algorithm with the conventional PID control algorithm was applied to elongation control system. It is proved in the simulation study that the fuzzy self-adaptive PID control system has both high dynamic performance and static performance as well as strong robustness, which can greatly improve control accuracy and anti-jamming capability of elongation control system of the tension leveller.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 1442-1447
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.1442
• Online since: August 2013
• Authors: Li Wang, Dian Hua Zhang, Jie Sun, Qiu Jie Chen, Hua Ding
• Keywords: Continuous Pickling Line, Elongation Control, Elongation Mathematical Model, Fuzzy Self-Adaptive PID

References

[1] Jiaxiang Zou. Rolling Mill Machinery, Metallurgical Industry Press, Beijing, China, 2000. (In Chinese).

[2] Zhi-rui An, The Structure Analysis of the Tension Leveling of PL-TCM and Study of the Finite Element Simulation of Strip Stretch Bending Process, Chong Qing University, 2008. (In Chinese).

[3] Tongqing Li, Xian-lin Chen, Jian-guo Wang, Research to the Descaling Function of the Tension Leveller, Metallurgical equipment, Vol. 3, 1-3, 1998. (In Chinese).

[4] Kokes Guy, Singh Tarunraj. Adaptive fuzzy logic control of an anti-lock braking system. Institute of Electrical and Electronic Engineers, Vol. 52, No. 13, 646-651, (2006).

[5] Jie Sun, Dian-hua Zhang, et al, Smith prediction monitor AGC system based on fuzzy self-tuning PID control, Journal of Iron and Steel research, International, Vol. 17, No. 2, 22-26, 2010. (In Chinese).

DOI: 10.1016/s1006-706x(10)60053-2

[6] Z Q Gao, T A Trautzsch, J G Dawson, A stable self-tuning fuzzy logic control system for industrial temperature regulation, IEEE Transactions on Industry Applications, Vol. 38, No. 2, 414-424, (2002).

DOI: 10.1109/28.993163

[7] Ding-yu Xue, Computer Assist Designing for Control System, Tsinghua University Press, Beijing, China, 2002. (In Chinese).
