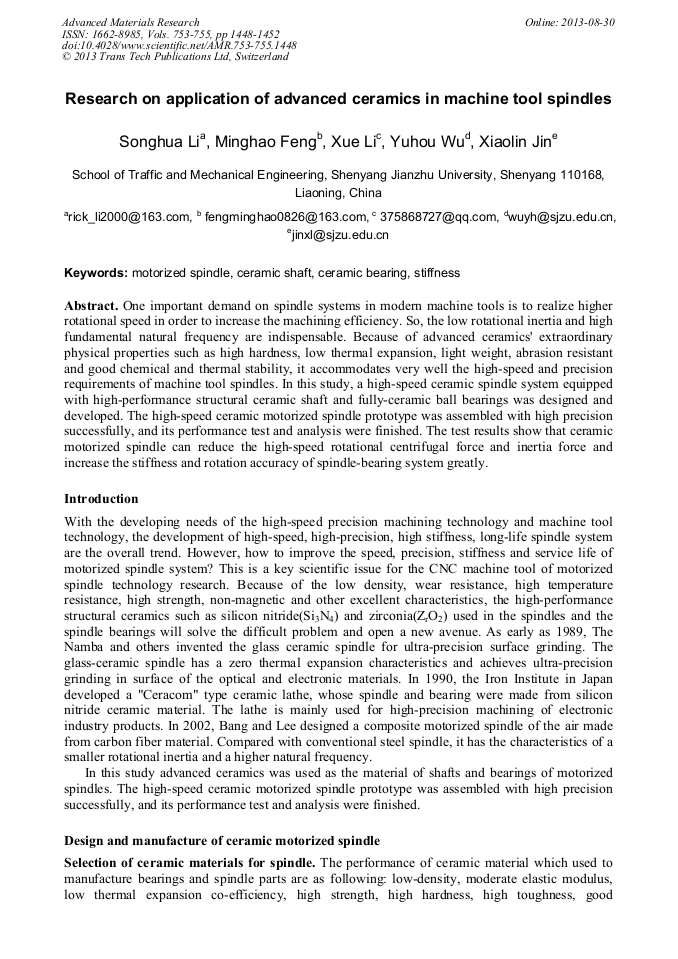

Research on Application of Advanced Ceramics in Machine Tool Spindles

Abstract:

One important demand on spindle systems in modern machine tools is to realize higher rotational speed in order to increase the machining efficiency. So, the low rotational inertia and high fundamental natural frequency are indispensable. Because of advanced ceramics' extraordinary physical properties such as high hardness, low thermal expansion, light weight, abrasion resistant and good chemical and thermal stability, it accommodates very well the high-speed and precision requirements of machine tool spindles. In this study, a high-speed ceramic spindle system equipped with high-performance structural ceramic shaft and fully-ceramic ball bearings was designed and developed. The high-speed ceramic motorized spindle prototype was assembled with high precision successfully, and its performance test and analysis were finished. The test results show that ceramic motorized spindle can reduce the high-speed rotational centrifugal force and inertia force and increase the stiffness and rotation accuracy of spindle-bearing system greatly.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 1448-1452
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.1448
• Online since: August 2013
• Authors: Song Hua Li, Ming Hao Feng, Xue Li, Yu Hou Wu, Xiao Lin Jin
• Keywords: Ceramic Bearing, Ceramic Shaft, Motorized Spindle, Stiffness

References

[1] Jingxin Ren, Renke Kang, Shixing Kuan . 1999. Difficult to machine materials grinding Beijing: National Defense Industry Press. In Chinese.

[2] Yuhou Wu. 2003 hot-pressed silicon nitride ceramic ball bearings. Shenyang: Liaoning Science and Technology Press. In Chinese.

[3] Yuhou Wu, Songhua Li. 2009 A silicon nitride ceramic ball bearing inner ring style hot isostatic pressing its manufacturing method: China ZL200610134118. 9. In Chinese.

[4] Shichao Xiu, Changhe Li, Guangqi Cai. 2005. Grinding surface roughness theoretical model of trimming method. Northeastern University, (8): 771 - 773. In Chinese.

[5] Jipeng Zhang. 2010. Key components of the ceramic spindle grinding Experimental Study [master's thesis]. Shenyang: Shenyang Architectural University. In Chinese.

[6] Yuhou Wu, Xiaowen Liu, Ke Zhang. 2010. 170SD30 ceramic spindle finite element analysis of its vibration performance testing, Shenyang Jianzhu University (Natural Science), 26 (4): 767 - 771. In Chinese.

[7] Yuhou Wu, Songhua Li. 2012. System of high-speed spindle CNC machine tools. Beijing: Science Press. In Chinese.

[8] Li S H., Wu Y H. and Zhang L X. 2010. Development and experimental investigation of a high speed grinding spindle equipped with fully-ceramic bearings and ceramic shaft. Advanced Materials Research. 156 ~ 157: 1366 ~ 1371.

DOI: 10.4028/www.scientific.net/amr.156-157.1366
