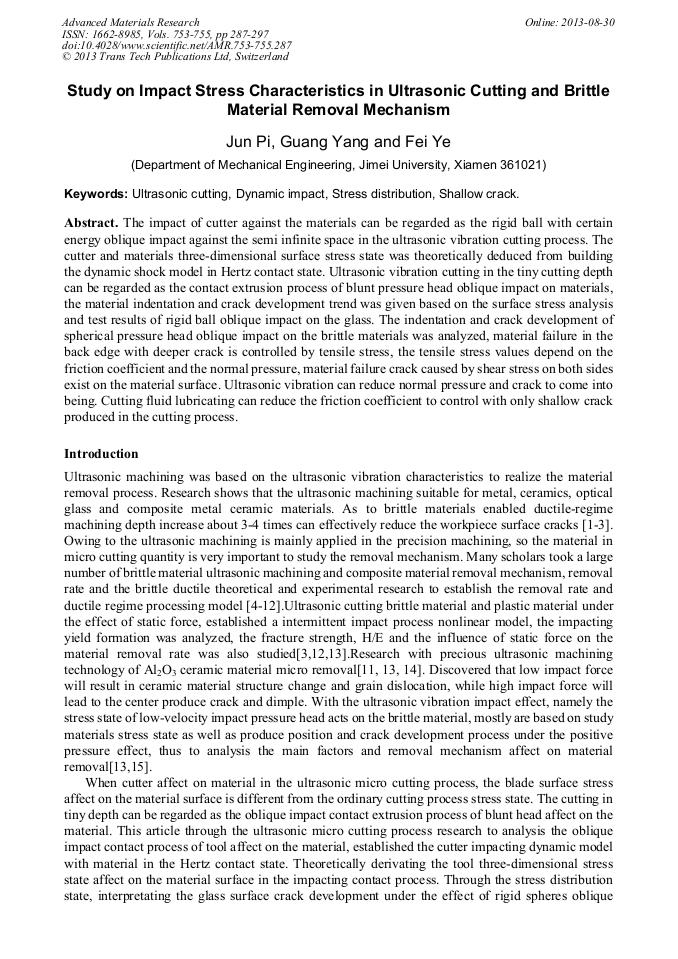

Study on Impact Stress Characteristics in Ultrasonic Cutting and Brittle Material Removal Mechanism

Abstract:

The impact of cutter against the materials can be regarded as the rigid ball with certain energy oblique impact against the semi infinite space in the ultrasonic vibration cutting process. The cutter and materials three-dimensional surface stress state was theoretically deduced from building the dynamic shock model in Hertz contact state. Ultrasonic vibration cutting in the tiny cutting depth can be regarded as the contact extrusion process of blunt pressure head oblique impact on materials, the material indentation and crack development trend was given based on the surface stress analysis and test results of rigid ball oblique impact on the glass. The indentation and crack development of spherical pressure head oblique impact on the brittle materials was analyzed, material failure in the back edge with deeper crack is controlled by tensile stress, the tensile stress values depend on the friction coefficient and the normal pressure, material failure crack caused by shear stress on both sides exist on the material surface. Ultrasonic vibration can reduce normal pressure and crack to come into being. Cutting fluid lubricating can reduce the friction coefficient to control with only shallow crack produced in the cutting process.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 287-297
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.287
• Online since: August 2013
• Authors: Jun Pi, Guang Yang, Fei Ye
• Keywords: Dynamic Impact, Shallow Crack, Stress Distribution, Ultrasonic Cutting

References

[1] T.B. THOE, REVIEW ON ULTRASONIC MACHINING[J]. Int.J. Mach. Tools Manufact, 1998, Vol. 38. No. 4: 239-255.

[2] M. Komaraiah , P. N. Reddy. Rotary ultrasonic machining - a new cutting process and its performance[J]. International Journal of Production Research, 1991, 29(11): 2177–2187.

DOI: 10.1080/00207549108948077

[3] Reimund Neugebauer. Ultrasonic application in drilling[J]. Journal of Materials Processing Technology, 2004, 149: 633–639.

[4] Jun-Seok Lee, Deug-Woo Lee, Yoong-Ho Jung, Woo-Seop Chung. A study on micro-grooving characteristics of planar lightwave circuit and glass using ultrasonic vibration cutting[J]. Journal of Materials Processing Technology, 2002, 130–131: 396–400.

DOI: 10.1016/s0924-0136(02)00740-9

[5] H. Hocheng, N. H. Tai, C. S. Liu. Assessment of ultrasonic drilling of C/SiC composite material. Composites: Part A[J]. Materials and Manufacturing Processes, 2000, 31: 132-142.

DOI: 10.1016/s1359-835x(99)00065-2

[6] M. Wiereigroch, J. Wojewoda, A.M. Krivtsov. Dynamics of ultrasonic percussive drilling of hard rocks[J]. Journal of Sound and Vibration, 2004, 15(2): 187-205.

DOI: 10.1016/j.jsv.2003.12.045

[7] T.G. Bifano, T.A. Dow, R.O. Scattergood. Ductile-regime grinding: a new technology for machining brittle materials[J]. In: Transactions of the ASME, Journal of Engineering for Industry, 1991, 113: 184-189.

DOI: 10.1115/1.2899676

[8] D. Prabhakar, M. Haselkorn. An experimental investigation of material removal rates in rotary ultrasonic machining[C]. Trans of the North American Manufacturing Research Institution of SME, 1996, 3: 211-218.

[9] Z. J. Pei, P. M. Ferreira. Modeling of Ductile-mode Material Removal in Rotary Ultrasonic machining[J]. International Journal of Machine Tools & Manufacture, 1998, 38: 1399-1418.

DOI: 10.1016/s0890-6955(98)00007-8

[10] S. Yoshida, H. Ito. The present and future of ductile-regime grinding of optical parts[J]. Bulletin of Japanese Society of Precision Engineering, 1990, 24(4): 239-243.

[11] K. P. Rajurkar, Z. Y. Wang and A. Kuppattan. Micro removal of ceramic material (Al2O3) in the precision ultrasonic machining[J]. Precision Engineering, 1999, 23: 73-78.

DOI: 10.1016/s0141-6359(98)00026-9

[12] YURII P. STEFANOV. Numerical investigation of deformation localization and crack formation in elastic brittle-plastic materials[J]. International Journal of Fracture, 2004, 128: 345–352.

DOI: 10.1023/b:frac.0000040998.25746.66

[13] B. Ghahramani, Z.Y. Wang. Precision ultrasonic machining process: a case study of stress analysis of ceramic (Al2O3) [J]. International Journal of Machine Tools & Manufacture, 2001, 41: 1189–1208.

DOI: 10.1016/s0890-6955(01)00011-6

[14] P. Hu. Modeling of material removeal rate in rotary ultrasonic maching: designed experiments[J]. Journal of Materials Processing Technology, 2002, 129: 339-344.

DOI: 10.1016/s0924-0136(02)00686-6

[15] P.L. Guzzo, A.A. Raslan, J.D.B. De Mello. Ultrasonic abrasion of quartz crystals[J]. Wear, 2003, 255: 67–77.

DOI: 10.1016/s0043-1648(03)00094-2

[16] K. L. Johnson, Translate by Chengye XU , Xuefu LUO, Xinsheng LIU , Guohua SONG , Xuewei SUN. contact mechanics[M]. Beijing: Higher education press, 1992. In Chinese.

[17] J.A. Garling Translate by Junjian WANG. The contact problem of elastic theory[M]. Beijing: Science press, 1958. In Chinese.

[18] A.C. FISCHER-CRIPPS. Elastic–plastic behaviour in materials loaded with a spherical indenter[J]. JOURNAL OF MATERIALS SCIENCE, 1997, 32: 727 – 736.

[19] Cherepanov H. P., Translate by Kezhi HUANG . Brittle fracture mechanics[M]. Beijing: Science press, 1990. In Chinese.

[20] Jun PI. Xipeng XU. Hydrodynamic Pressure Oil Film Modeling and Experimental Study of Ultrasonic Vibration Cutting[J]. CHINESE JOURNAL OF MECHANICAL ENGINEEYING, 2010, 46(7): 175-180. In Chinese.

DOI: 10.3901/jme.2010.07.175
