A Novel 2-GS/s 12-Bit DAC in SiGe HBT Technology

Yu Jun Yang; Rong Bin Hu; Jia Chen

doi:10.4028/www.scientific.net/AMR.756-759.4283

Paper Titles

Use N+ Buried Layer to Design a Low On-Resistance VDMOS
p.4267

Compensation Effect and Simulation of Series-Parallel Hybrid Dynamic Voltage Restorer
p.4271

Equivalence of Large Scale Wind Farm Based on Per-Unit System on RTDS
p.4275

The Main Circuit Studies of Current Mode APF Based on SPWM Technology
p.4279

A Novel 2-GS/s 12-Bit DAC in SiGe HBT Technology
p.4283

Analysis of the Dielectric Loss in the Transmission Line Based on Time Domain BLT Equation
p.4287

Application of the BLT Equation for Radiation Field Calculation for Double Transmission Line
p.4292

The Application of ATCA Structure for Power Communication Switching System
p.4296

A High Speed Open-Loop Track/Hold Circuit in CMOS Process
p.4302

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 756-759A Novel 2-GS/s 12-Bit DAC in SiGe HBT Technology

A Novel 2-GS/s 12-Bit DAC in SiGe HBT Technology

Abstract:

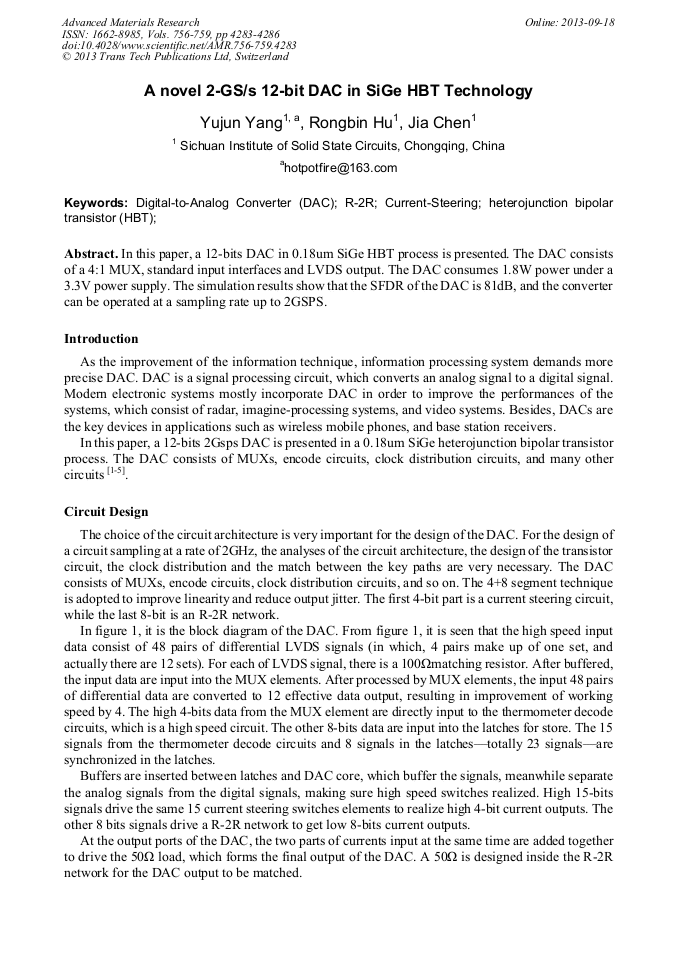

In this paper, a 12-bits DAC in 0.18um SiGe HBT process is presented. The DAC consists of a 4:1 MUX, standard input interfaces and LVDS output. The DAC consumes 1.8W power under a 3.3V power supply. The simulation results show that the SFDR of the DAC is 81dB, and the converter can be operated at a sampling rate up to 2GSPS.
