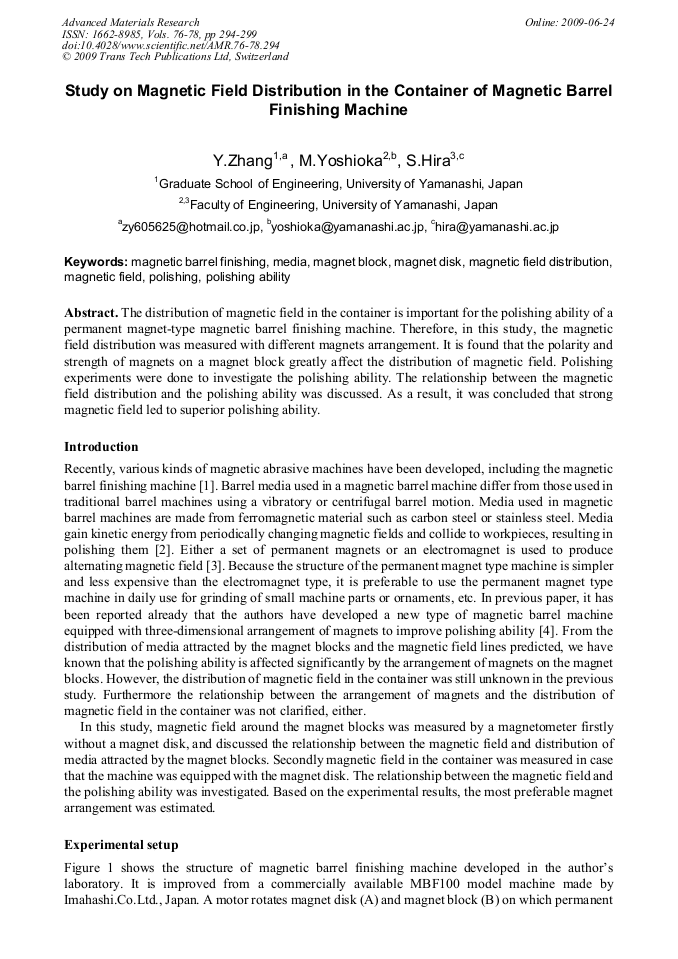

Study on Magnetic Field Distribution in the Container of Magnetic Barrel Finishing Machine

Abstract:

The distribution of magnetic field in the container is important for the polishing ability of a permanent magnet-type magnetic barrel finishing machine. Therefore, in this study, the magnetic field distribution was measured with different magnets arrangement. It is found that the polarity and strength of magnets on a magnet block greatly affect the distribution of magnetic field. Polishing experiments were done to investigate the polishing ability. The relationship between the magnetic field distribution and the polishing ability was discussed. As a result, it was concluded that strong magnetic field led to superior polishing ability.

• Periodical: Advanced Materials Research (Volumes 76-78)
• Pages: 294-299
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.76-78.294
• Online since: June 2009
• Authors: Y. Zhang, Masato Yoshioka, Shin-Ichiro Hira
• Keywords: Magnet Block, Magnet Disk, Magnetic Barrel Finishing, Magnetic Field, Magnetic Field Distribution, Media, Polishing, Polishing Ability

References

[1] N. Imahashi: J. JpnSoc. Abras. Technol. Vol. 44, No. 1 (2000), p.15. (in Japanese).

[2] M. Yoshioka, S. Hira and H. Takeuchi: Proc. of 3rd ISAAT (1999), p.469.

[3] O. Sugiura, N. Imahashi and M. Mizuguchi: J. Jpn. Soc. Precis. Eng. Vol. 63, No. 3 (1997), p.399 (in Japanese).

[4] Y. Zhang, M. Yoshioka and S. Hira: Key Eng. Mater. Vol. 329 (2007), p.761 Fig. 10 Polishing efficiency coefficient R by various methods.
