A 10-Gb/s 0.18-μm CMOS Optical Receiver Front-End Amplifier

Abstract:

A fully integrated 10-Gb/s optical receiver analog front-end (AFE) design that includes a transimpedance amplifier (TIA) and a limiting amplifier (LA) is demonstrated to require less chip area and is suitable for both low-cost and low-voltage applications. The AFE is stimulation using a 0.18μm CMOS process. In order to avoid off-chip noise interference, the TIA and LA are dc-coupled on the chip instead of ac-coupled though a large external capacitor. The tiny photo current received by the receiver AFE is amplified to voltage swing of 400. The results indicate that, with a photodiode parasitic capacitance of 500fF and the bonding pad parasitic capacitance of 200fF between which a 2-mm bond wire is inserted at the input node, the AFE provides a conversion gain of up to 89.21 dB and 3 dB bandwidth of 9.78 GHz. Operating under a 1.8V supply, circuit power dissipation is 95 mW and its sensitivity is 18.5μA for BER of 10^-12

You might also be interested in these eBooks

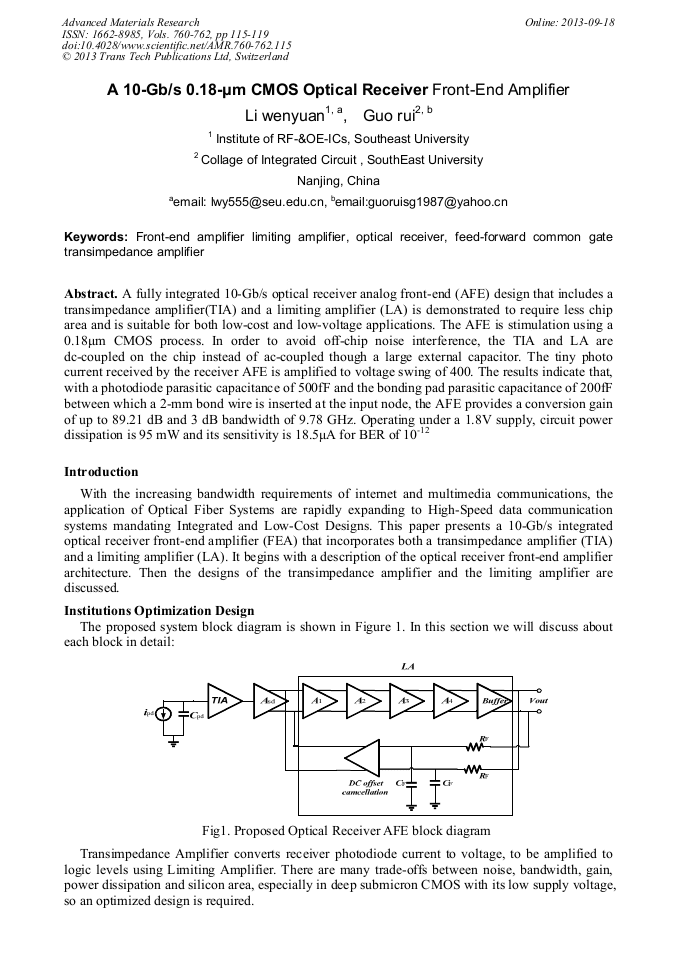

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 760-762)

Pages:

115-119

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.760-762.115

Citation:

Cite this paper

Online since:

September 2013

Authors:

Wen Yuan Li, Rui Guo

Keywords:

Feed-Forward Common Gate Transimpedance Amplifier, Front-End Amplifier Limiting Amplifier, Optical Receiver

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Annema A. -J, Nauta B, van Langevelde R, Tuinhout H. Analog circuits in ultra-deep-submicron CMOS. IEEE J. Solid-State Circuits vol. 40, p.132 – 143 Jan. (2005).

DOI: 10.1109/jssc.2004.837247

Google Scholar

[2] Liang Han, Yizheng Ye, Tao Bai. 2. 5Gb/s CMOS RGC transimpedance amplifier . ICM 2007. Internatonal Conference on. pp.19-22, Dec. (2007).

DOI: 10.1109/icm.2007.4497653

Google Scholar

[3] Kromer C, Sialm G, Morf T, Schmatz ML, Ellinger F, Erni D, Jackel H. A Low-Power 20-GHz 52-dBΩ Transimpedance Amplifier in 80-nm CMOS. IEEE J. Solid-State Circuits . vol. 39, p.885 – 894. June (2004).

DOI: 10.1109/jssc.2004.827807

Google Scholar

[4] Haiyun, Huang ; Jincai, Wen; Lingling, Sun 10 Gb/s CMOS limiting amplifier for optical transmission systems . Microwave, Antenna, Propagation and EMC Technologies for Wireless Communications, 2005. MAPE 2005. IEEE International Symposium on, vol. 2, pp.859-862, Aug. (2005).

DOI: 10.1109/mape.2005.1618055

Google Scholar

[5] Huang, Huei-Yan Chien, Jun-Chau; Lu, Liang-Hung Hung, A 10-Gb/s Inductorless CMOS Limiting Amplifier With Third-Order Interleaving Active Feedback . Solid-State Circuits, IEEE Journal of, vol. 42, pp.1111-1120, May (2007).

DOI: 10.1109/jssc.2007.894819

Google Scholar

[6] S. Galal and B. Razavi, 10-Gb/s limiting amplifier and laser/modulator driver in 0. 18-μm CMOS technology , IEEE J. Solid-State Circuits, vol. 38, pp.2138-2146 , Dec (2003).

DOI: 10.1109/jssc.2003.818567

Google Scholar
