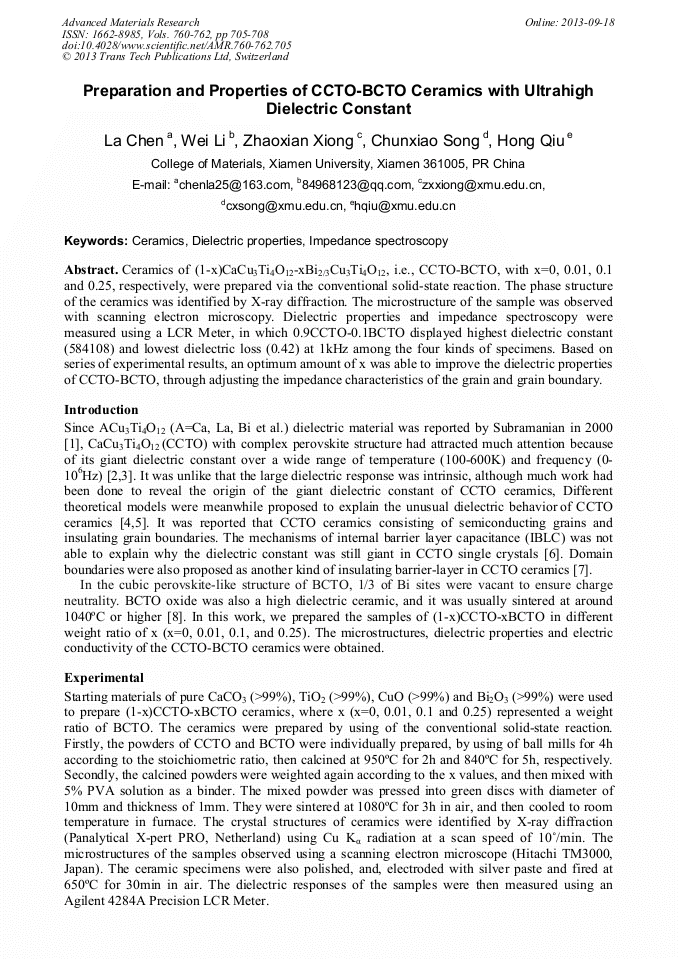

Preparation and Properties of CCTO-BCTO Ceramics with Ultrahigh Dielectric Constant

Abstract:

Ceramics of (1-x)CaCu₃Ti₄O₁₂-xBi_2/3Cu₃Ti₄O₁₂, i.e., CCTO-BCTO, with x=0, 0.01, 0.1 and 0.25, respectively, were prepared via the conventional solid-state reaction. The phase structure of the ceramics was identified by X-ray diffraction. The microstructure of the sample was observed with scanning electron microscopy. Dielectric properties and impedance spectroscopy were measured using a LCR Meter, in which 0.9CCTO-0.1BCTO displayed highest dielectric constant (584108) and lowest dielectric loss (0.42) at 1kHz among the four kinds of specimens. Based on series of experimental results, an optimum amount of x was able to improve the dielectric properties of CCTO-BCTO, through adjusting the impedance characteristics of the grain and grain boundary.

• Periodical: Advanced Materials Research (Volumes 760-762)
• Pages: 705-708
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.760-762.705
• Online since: September 2013
• Authors: La Chen, Wei Li, Zhao Xian Xiong, Chun Xiao Song, Hong Qiu
• Keywords: Ceramic, Dielectric Property, Impedance Spectroscopy

References

[1] M.A. Subramanian, D. Li, N. Duan, et al., J. Solid. State. Chem. 151, 323 (2000).

[2] S. Krohns, P. Lunkenheimer, et al., Appl. Phys. Lett. 94, 122903 (2009).

[3] C.C. Homes, T. Vogt, S.M. Shapiro, S. Wakimoto, A.P. Ramirez, Science 293, 673 (2001).

[4] D.C. Sinclair, T.B. Adams, F.D. Morrison, et al., Appl. Phys. Lett. 80, 2153 (2002).

[5] T.T. Fang, H.K. Shiau, Chem. Mater. 17, 5167 (2005).

[6] S. Krohns, P. Lunkenheimer, S.G. Ebbinghaus, A. Loidl, J. Appl. Phys. 103 , 084107 (2008).

[7] S. Sarkar, B.K. Chaudhuri, H.D. Yang, J. Appl. Phys. 108, 014114 (2010).

[8] D. Szwagierczak, J Electroceram 23, 56 (2009).

[9] J.J. Liu, Ch. G. Duan, W.G. Yin, et al., Phys. Rev. B 70, 144106 (2004).
