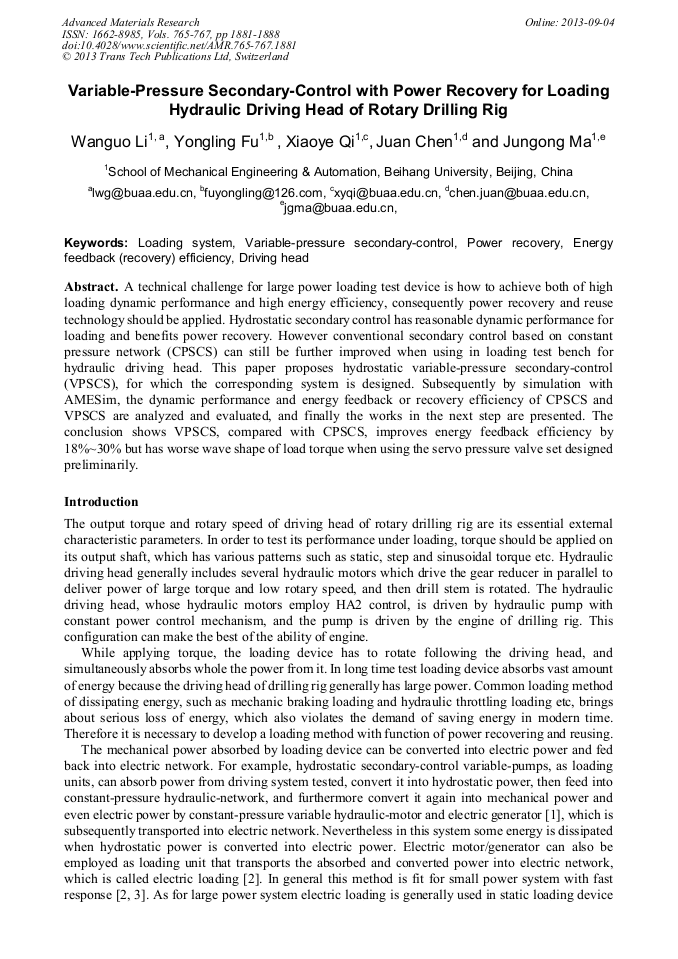

Variable-Pressure Secondary-Control with Power Recovery for Loading Hydraulic Driving Head of Rotary Drilling Rig

Abstract:

A technical challenge for large power loading test device is how to achieve both of high loading dynamic performance and high energy efficiency, consequently power recovery and reuse technology should be applied. Hydrostatic secondary control has reasonable dynamic performance for loading and benefits power recovery. However conventional secondary control based on constant pressure network (CPSCS) can still be further improved when using in loading test bench for hydraulic driving head. This paper proposes hydrostatic variable-pressure secondary-control (VPSCS), for which the corresponding system is designed. Subsequently by simulation with AMESim, the dynamic performance and energy feedback or recovery efficiency of CPSCS and VPSCS are analyzed and evaluated, and finally the works in the next step are presented. The conclusion shows VPSCS, compared with CPSCS, improves energy feedback efficiency by 18%~30% but has worse wave shape of load torque when using the servo pressure valve set designed preliminarily.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 1881-1888
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.1881
• Online since: September 2013
• Authors: Wan Guo Li, Yong Ling Fu, Xiao Ye Qi, Juan Chen, Jun Gong Ma
• Keywords: Driving Head, Energy Feedback (Recovery) Efficiency, Loading System, Power Recovery, Variable-Pressure Secondary-Control

References

[1] Wanguo Li, Zhanlin Wang: Chinese Journal of Mechanical Engineer, Vol. 42(2006, 7): pp.76-84. (In Chinese).

[2] Yun Zhang: Research on Loading Motor Driver With Energy Feedback, Harbin Institute of Technology, dissertation for Master Degree, 2007. (In Chinese).

[3] Xingjian Wang, Shaoping Wang, Xiaodong Wang: Electrical Load Simulator Based on Velocity-Loop Compensation and Improved Fuzzy-PID. IEEE International Symposium on Industrial Electronics (ISlE 2009). Seoul Olympic Parktel, Seoul, Korea: 2009: pp.238-243.

DOI: 10.1109/isie.2009.5213288

[4] Xuezhi Wang, Mingyu Wang: Micro-motor, Vol. 43(2010, 2): pp.87-90. (In Chinese).

[5] Guochang Bai, Bo Pang, Zhanlin Wang: Mechanical Science and Technology for Aerospace Engineering, Vol. 26 (2007, 2): pp.213-216. (In Chinese).

[6] Mengru Li, Baofu Xu, Zhixin Chen: Bond Graph Model of a New Hydraulic Winch Test Bench on Energy Recycle. 2010 IEEE International Conference on Industrial Engineering and Engineering Management (IEEM). 2010: pp.808-812.

DOI: 10.1109/ieem.2010.5674189

[7] Xionghui Miao, Chenzhi Guo: Construction Machinery and Equipment, Vol. 43(2012): pp.22-24 (In Chinese).

[8] Hua Xue, Jingru Chen, Menggui Luan, et al: Coupling Influence And Decoupling Control Of The Secondary Regulation Loading System For The Drive Axle Of Vehicle. Mechanic 2010 International Conference on Automation and Control Engineering (MACE). 2010: pp.3246-3249.

DOI: 10.1109/mace.2010.5535856

[9] Honglin Dong, Yuhui Liu, Hongying Lu, et al: Machine Tool & Hydraulics Vol. 40(2005, 11): pp.70-72. (In Chinese).
