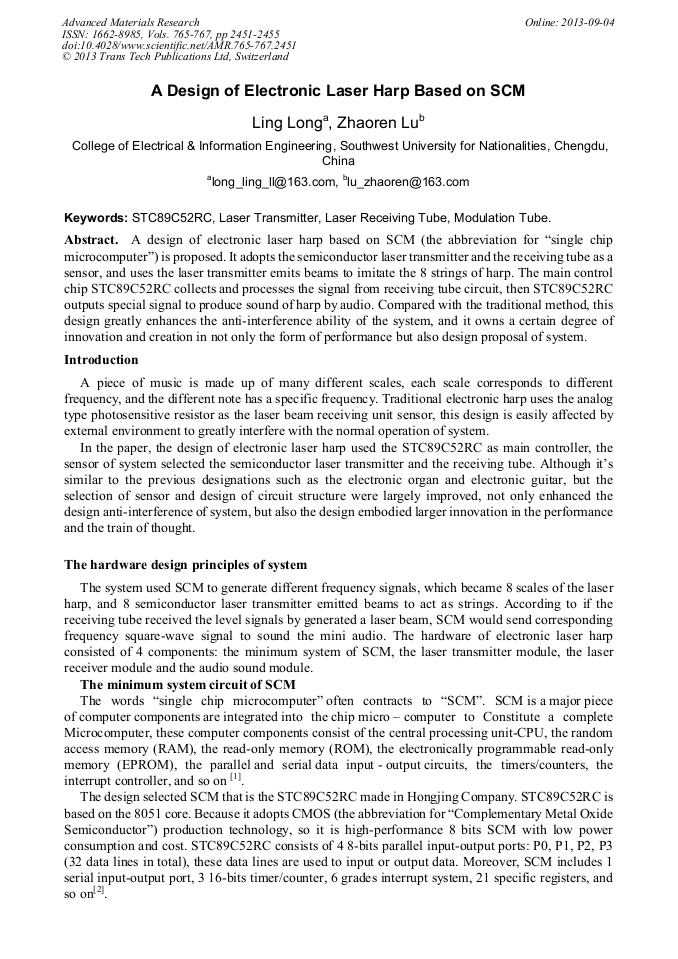

A Design of Electronic Laser Harp Based on SCM

Abstract:

A design of electronic laser harp based on SCM (the abbreviation for single chip microcomputer) is proposed. It adopts the semiconductor laser transmitter and the receiving tube as a sensor, and uses the laser transmitter emits beams to imitate the 8 strings of harp. The main control chip STC89C52RC collects and processes the signal from receiving tube circuit, then STC89C52RC outputs special signal to produce sound of harp by audio. Compared with the traditional method, this design greatly enhances the anti-interference ability of the system, and it owns a certain degree of innovation and creation in not only the form of performance but also design proposal of system.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 2451-2455
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.2451
• Online since: September 2013
• Authors: Ling Long, Zhao Ren Lu
• Keywords: Laser Receiving Tube, Laser Transmitter, Modulation Tube, STC89C52RC

References

[1] Yikun Zhang, Shanjiu Chen, Xuehong Qiu. Principe and Application of Single-Chip Microcomputer, Xian Electronic Science & Technology University Press, Xian, China, (1998).

[2] Tianxiang Guo. The C Language Tour Based on New Concept 51 Single-Chip Microcomputer for All Strategy: Rudiments, Improvement, Development and Expanding, Electronic Industry Press, Beijing, China, (2009).

[3] Wenlong Zhou, Guowei Xu. Laser Sensor Applies in Intelligent Vehicle Design, Youth Science. 2009 (6): 179-181.

[4] Suxing Yang. Easy - Basic Course of Analog Electronic Technology, third ed., Higher Education Press, Beijing, China, (2006).

[5] Haoqiang Tan. The C Language Program Design, third ed., Qinghua University Press, Beijing, China, (2005).

[6] Prata, S, Yundian Studio (translate), the Chinese C Primer Plus, fifth ed., Posts & Telecom Press, Beijing, China, (2005).
