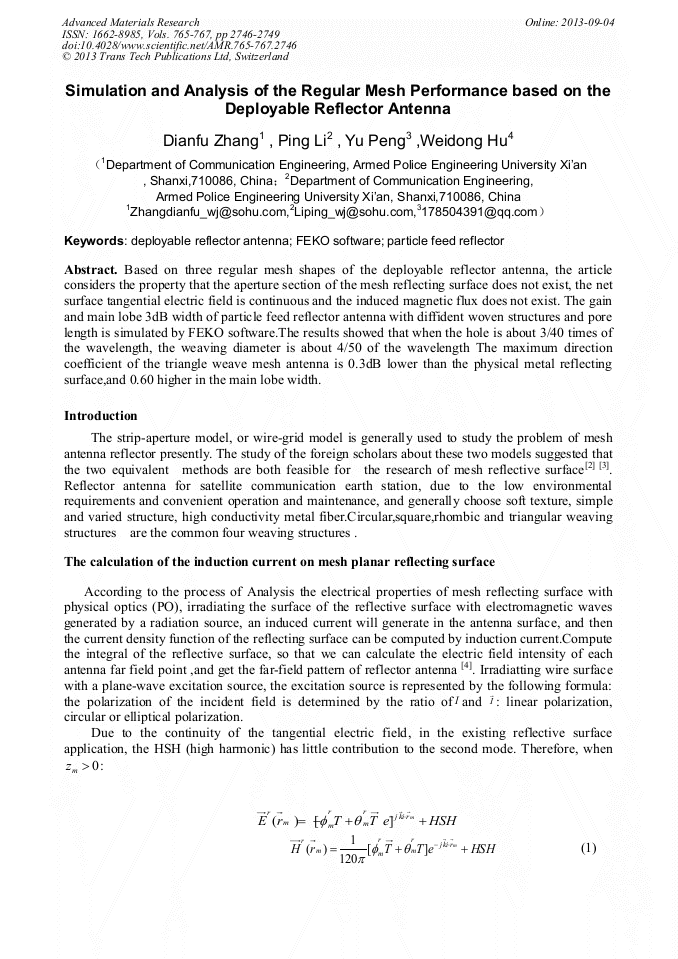

Simulation and Analysis of the Regular Mesh Performance Based on the Deployable Reflector Antenna

Abstract:

Based on three regular mesh shapes of the deployable reflector antenna,the article considers the property that the aperture section of the mesh reflecting surface does not exist, the net surface tangential electric field is continuous and the induced magnetic flux does not exist. The gain and main lobe 3dB width of particle feed reflector antenna with diffident woven structures and pore length is simulated by FEKO software.The results showed that when the hole is about 3/40 times of the wavelength, the weaving diameter is about 4/50 of the wavelength The maximum direction coefficient of the triangle weave mesh antenna is 0.3dB lower than the physical metal reflecting surface,and 0.60 higher in the main lobe width.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 2746-2749
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.2746
• Online since: September 2013
• Authors: Dian Fu Zhang, Ping Li, Yu Peng, Wei Dong Hu
• Keywords: Deployable Reflector Antenna, FEKO Software, Particle Feed Reflector

References

[1] Amane Miura, Masato Tanaka. A Mesh Reflecting Surface with Electrical Characteristics[C]. Independent on Direction of Electric Field of Incident Wave Antennas and Propagation Society International Symposium, 2004. IEEE：33～36.

DOI: 10.1109/aps.2004.1329546

[2] Amane Miura, Yahya Rahmat-Samii. Equivalent Strip Width for Cylindrical Wire for Mesh Reflector Antennas: Experiments, Waveguide, and Plane-Wave Simulations[J]. IEEE Transactions on antennas and propagation, 2006, 10(54): 2845~2853.

DOI: 10.1109/tap.2006.882171

[3] Shujuan Tang . The Analysis of the Effect of Structural Errors on Electrical Performances of Reflector Antenna[D]: [MS Thesis]. Xi'an: Xidian University , (2008).

[4] Defang LI. Analysis on the Performance of Mesh Reflector Antennas with Different Weaving Structures [D]: [MS Thesis]. Xi'an: Xidian University, (2008).

[5] Y. Rahmat-Samii, S. W. Lee. Vector Diffraction analysis of reflector antennas with mesh surfaces[J]. IEEE Trans. Antennas Propagat., Vol. 33, Jan. 1985: 76～90.

DOI: 10.1109/tap.1985.1143477

[6] T K. Sakar, E. Arvas and S.S. Rao. Application of FFT and conjugate gradient method for the solution of electromagnetic radiation from electrically large and small conducting bodies[J]. IEEE Trans. on Antennas and Propagation 1986, vol. AP-34, 635-640.

DOI: 10.1109/tap.1986.1143871

[7] JianSheng Zheng, Dongwei Li, Yuhua Tian, Fang You. The study on material performance of space deployable mesh antenna [J]. Electro-mechanical engineering 2005, 3.
