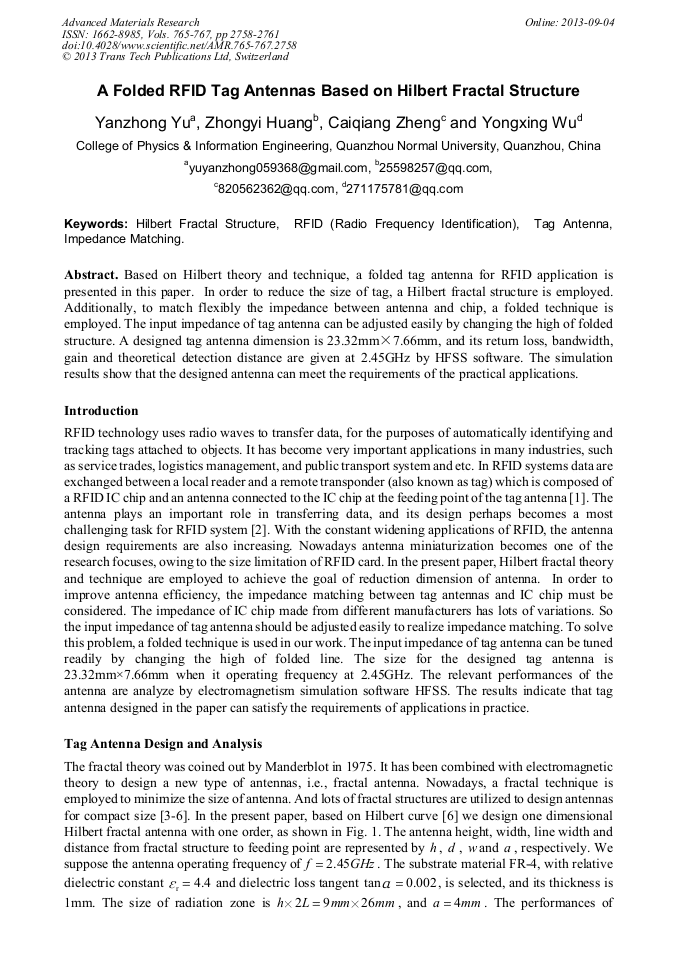

A Folded RFID Tag Antennas Based on Hilbert Fractal Structure

Abstract:

Based on Hilbert theory and technique, a folded tag antenna for RFID application is presented in this paper. In order to reduce the size of tag, a Hilbert fractal structure is employed. Additionally, to match flexibly the impedance between antenna and chip, a folded technique is employed. The input impedance of tag antenna can be adjusted easily by changing the high of folded structure. A designed tag antenna dimension is 23.32mm×7.66mm, and its return loss, bandwidth, gain and theoretical detection distance are given at 2.45GHz by HFSS software. The simulation results show that the designed antenna can meet the requirements of the practical applications.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 2758-2761
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.2758
• Online since: September 2013
• Authors: Yan Zhong Yu, Zhong Yi Huang, Cai Qiang Zheng, Yong Xing Wu
• Keywords: Hilbert Fractal Structure, Impedance Matching, Radio Frequency Identification (RFID), Tag Antenna

References

[1] C. C. You, Kyounghwan Lee: IEEE Radio Wirel. Symp. Jan. 2008, pp.475-478.

[2] Y. Bing, F. Quanyuan: Int. Conf. Microw. Millimeter Wave Technol. Proc., ICMMT 2008, pp.1047-1049.

[3] D. H. Werner, S. Ganguly: Antennas and Propagation Magazine Vol. 45 (2003), pp.38-57.

[4] R. V. H. Prasad, Y. Purushottam, V. C. Misra, et al: Electron Lett Vol. 36 (2000), pp.1179-180.

[5] K. J. Vinoy, K. A. Jose, V. K. Varadan, et al: Microwave and Optical Technology Letters Vol. 29 (2001), pp.215-219.

[6] N. A. Murad, M. Esa, M. F. M. Yusoff and S. H. A. Ali: Int. RF Microw. Conf. 2006, pp.182-186.
