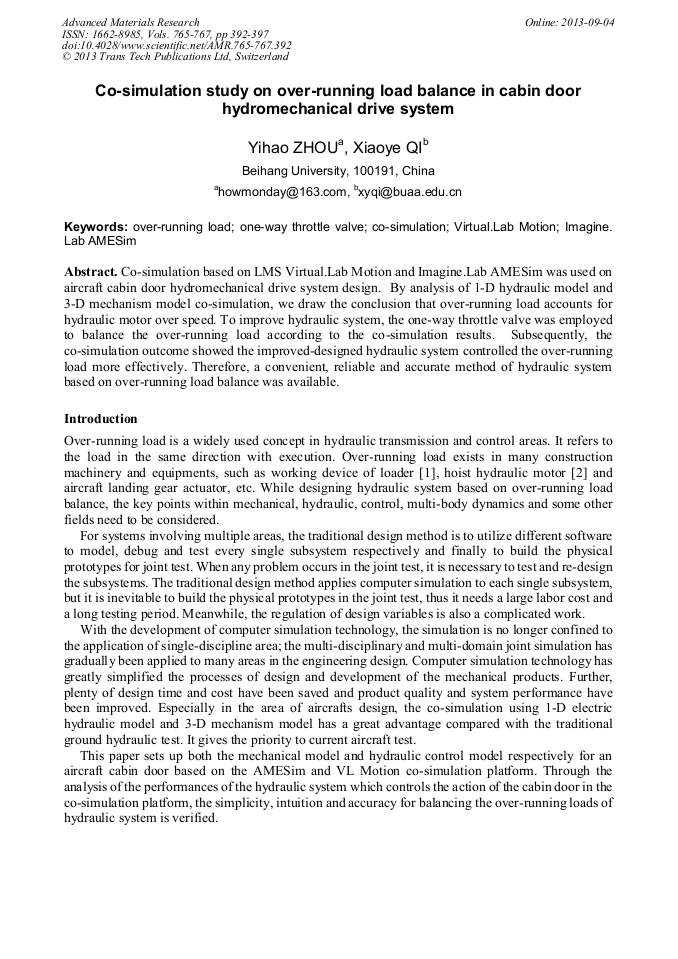

Co-Simulation Study on Over-Running Load Balance in Cabin Door Hydromechanical Drive System

Abstract:

Co-simulation based on LMS Virtual.Lab Motion and Imagine.Lab AMESim was used on aircraft cabin door hydromechanical drive system design. By analysis of 1-D hydraulic model and 3-D mechanism model co-simulation, we draw the conclusion that over-running load accounts for hydraulic motor over speed. To improve hydraulic system, the one-way throttle valve was employed to balance the over-running load according to the co-simulation results. Subsequently, the co-simulation outcome showed the improved-designed hydraulic system controlled the over-running load more effectively. Therefore, a convenient, reliable and accurate method of hydraulic system based on over-running load balance was available.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 392-397
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.392
• Online since: September 2013
• Authors: Yi Hao Zhou, Xiao Ye Qi
• Keywords: Co-Simulation, Imagine.Lab AMESim, One-Way Throttle Valve, Over-Running Load, Virtual.Lab Motion

References

[1] Guo-jin CHEN, Shao-xun JIN, Hui-peng CHEN, Journal of Mechanical & Electrical Engineering, Vol. 29 (2012), p.1135, (In Chinese).

[2] Hongjun ZHANG, Yongchen WEI, Yaohui WU, Hao CHEN, Hydraulics Pneumatics & Seals, Vol. 3 (2008), p.42, (In Chinese).

[3] Xiaofeng WANG, Lan LIU. LMS Virtual. Lab Motion Design (Northwestern Polytechnical University Press, China 2010), (In Chinese).

[4] Jing CAI, Xuexun GUO, Zhigang FANG, Guanneng XU, China Mechanical Engineering, Vol. 24 (2013), p.557, (In Chinese).

[5] Yongling FU, Haitao Qi. LMS Imagine. Lab AMESim Model Building and Simulation Tutorial Examples (Beihang University Press, China 2011), (In Chinese).

[6] Huijun AN, Jilin University, China, 2011, (In Chinese).
